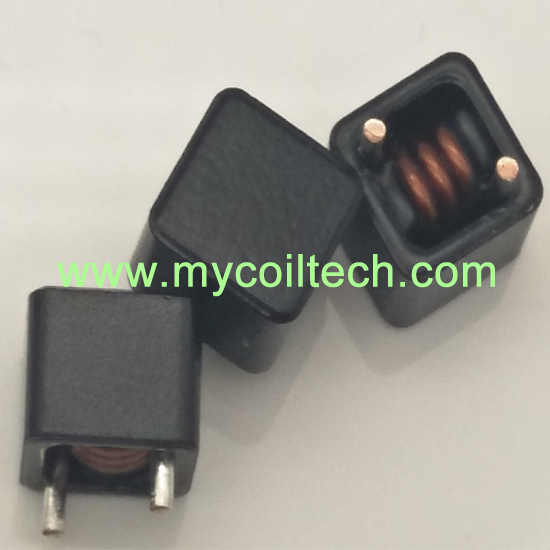

High Current DIP Type Inductor High Frequency Power Inductor

DIP type high frequency inductor has low cost, shielded construction, very low DC resistance. It’s easy customized and high frequency range can up to 1.0 MHz. Our large current products are all lead-free. (RoHS)

  • brand:

    MCT
  • item no.:

    MCTLA Series High Current DIP Type Inductor
  • shipping port:

    Shanghai
contact now
product description

High current inductors with magnetic shield structure, have strong electromagnetic interference (EMI) resistance and vertical design, solid structure, low magnetic loss, low impedance, small parasitic capacitance. Our DIP type high current inductor has very low DC resistance, mainly designed for  switching power suppliers, DC-DC converters, high frequency SMP, EMI filters, computers, digital cameral and other consumer electronic products. DIP large current inductor materials we used are all lead-free products and RoHS compliant. MCTLA series high current DIP type inductor are our new design inductors, we also accept custom design.


Quick Details

Part No: MCTLA Series High Current DIP Type Inductor

Brand name: MCT

Inductance at IDC is a typical value for the component taken at IDC

Custom made: Available

L0 test condition: 100KHz/1.0Vrms, 0ADC

Logo: Can be customized

Testing ambient temperature is referenced to 25°C

Packing: Carton,can custom

Operating temperature range: -40°C~+120°C

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available

Lead time: 25 days after payment

Shipping: Air, Ship, etc


Part Information

Product Name: High Current DIP Type Inductor High Frequency Power Inductor

Applications: Switching power supplies, High frequency SMPS, EMI filters, High current DC/DC converters, Home appliance, Automotive electronics.

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray(Available in tape and reel package, three-layer carton packaging, is helpful for protection of high current inductor product performance. )

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Advantages:Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected and UL certified. We accept custom made and design service.


Product Details

Mechanical dimension: Unit: mm

DIP Type large current inductor supplier


Electrical Characteristics:

MCT PN

L(0A)

uH±20%

DCRmΩ)

max

Lrms

uH±20%

Irms

A

Isat

A

E

F

MCTLAR47M

0.47

0.9

0.45

32

50

8.7±1

1.5±0.1

MCTLAR60M

0.60

0.9

0.54

28

45

8.7±1

1.5±0.1

MCTLAR80M

0.80

1.5

0.72

33

40

8.4±1

1.3±0.1

MCTLA1R0M

1.00

1.5

0.92

33

40

8.4±1

1.3±0.1


Note:

1.L0 test condition:100KHz/1.0Vrms0ADC

2.Inductance at IDC is a typical value for the component taken at IDC

3. Heating current will cause an approximate ΔT of 40°C without core loss

4. Saturation current that will cause L0 approximate 20% rolloff with 25°C ambient temperature

5. Testing ambient temperature is referenced to 25°C

6.Operating temperature range -40°C~+120°C


If you have any questions, please contact us or leaving your comments, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

Request a Free Quote

If you are interested in our products or have any questions, contact us now!
