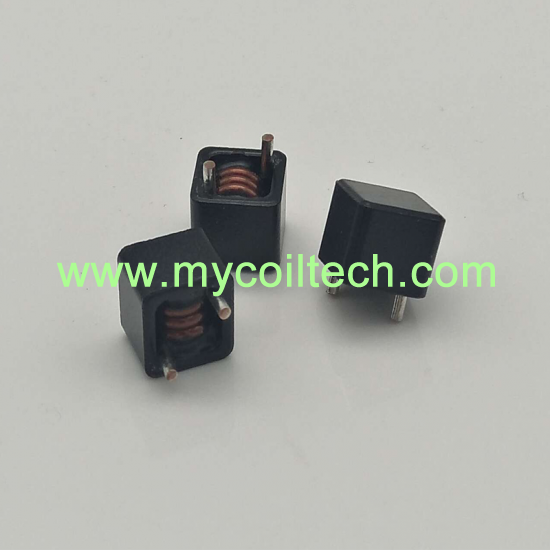

DIP type high current inductor has very low DC resistance, mainly for motherboards, laptop, desktop computers. DC/DC converter in distributed power systems. Inductor for general purpose use.
brand:
MCTitem no.:
MCTLC Series High Current DIP Type Inductorshipping port:
ShanghaiHefei Mycoil Technology Co., LTD is skilled at producing and designing different types large current inductors, such as PQ series current inductors, RM series current inductors, DIP type current inductors, SMD type current inductors. We accept custom design and OEM services.
Our DIP type high current inductors mainly used in high frequency SMP, EMI filters, switching power suppliers, DC-DC converters in distributed power systems, high frequency SMPS, inductor for general purpose use, etc. All DIP high current inductor products we produced were double tested, also with advanced manufacturing process, we have our own quality control department, strict quality control links.
Quick Details
|
Part No: MCTLC Series High Current DIP Type Inductor |
|
Brand name: MCT |
|
Inductance at IDC is a typical value for the component taken at IDC |
|
Custom made: Available |
|
L0 test condition: 100KHz/1.0Vrms, 0ADC |
|
Logo: Can be customized |
|
Testing ambient temperature is referenced to 25°C |
|
Packing: Carton,can custom |
|
Operating temperature range: -40°C~+120°C |
|
MOQ: Any quantity |
|
Certification: ISO9001,ROHS,CE |
|
OEM: Available |
|
Lead time: 25 days after payment |
|
Shipping: Air, Ship, etc |
Part Information
Product Name: Large Current DIP Inductor low Resistance and High Frequency
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Switching power supplies, High frequency SMPS, EMI filters, High current DC/DC converters, Home appliance, Automotive electronics.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray(Available in tape and reel package, three-layer carton packaging,protect DIP large current inductor performance. )
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Advantages:Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected and UL certified. We accept custom made and design service.
Product Specification
Mechanical dimension: Unit: mm
Electrical Characteristics:
|
MCT PN |
L(0A) uH±20% |
DCR（mΩ） max |
L（rms） uH±20% |
Irms A |
Isat A |
E |
F |
|
MCTLCR47M |
0.47 |
0.90 |
0.41 |
34 |
50 |
8.7±1 |
1.5±0.1 |
|
MCTLCR60M |
0.60 |
0.90 |
0.56 |
33 |
50 |
8.7±1 |
1.5±0.1 |
|
MCTLCR80M |
0.80 |
1.50 |
0.73 |
32 |
45 |
8.4±1 |
1.3±0.1 |
|
MCTLC1R0M |
1.00 |
1.50 |
0.92 |
30 |
45 |
8.4±1 |
1.3±0.1 |
Note:
1.L0 test condition:100KHz/1.0Vrms，0ADC
2.Inductance at IDC is a typical value for the component taken at IDC
3.Heating current will cause an approximate ΔT of 40°C without core loss
4.Saturation current that will cause L0 approximate 20% rolloff with 25°C ambient temperature
5.Testing ambient temperature is referenced to 25°C
6.Operating temperature range -40°C~+120°C
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
High Current DIP Type Inductor High Frequency Power Inductor
DIP type high frequency inductor has low cost, shielded construction, very low DC resistance. It’s easy customized and high frequency range can up to 1.0 MHz. Our large current products are all lead-free. (RoHS)
DIP High Current Inductors for EMI Filters
MCTLB series DIP type large current inductor with shielded construction, has very low DC resistance, easy customized, high frequency range can up to 1.0 MHz. Our large current products are all lead-free. (RoHS)
DIP Power Inductor for Shielded Large Current
DIP large current inductor has low resitance and high frequency. mainly for motherboards, laptop, desktop computers. DC/DC converter in distributed power systems.
Large Current Inductor DIP Shielded Power Inductor
DIP large current inductor has low resitance and high frequency. mainly for motherboards, laptop, desktop computers. DC/DC converter in distributed power systems, we make customized current inductors, samples can be sent for testing.
EF20 High Frequency Transformer Horizontal Coil Bobbin
Horizontal bobbin 5+5 pins EF20. EF20 single slot transformer bobbin. Bobbin Size=23.6mmX23mmX17.2mm. Parallel Distance=15mm. Pin pitch=3.8mm. PBT material EF20 bobbin. DIP transformer bobbin.
EF12.6 Transformer Bobbin 5+5 Pins Double Slots
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=10.2mm Size=15.2mmX13.3mmX10.3mm
4+4 Pins EF16 Horizontal Bobbin For Transformer Inductor Choke Coils
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3mm Parallel Distance=11mm Size=15.1mmX13.9mmX14.85mm
EP13 Transformer Bobbin Horizontal Bobbin With 4+8 Pins
4+8 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch1=5.1mm,Pin pitch2=1.7mm Parallel Distance=12.9mm
Vertical Bobbin EE19 Transformer Bobbin Dip Bobbin With 5+5 Pins
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=4mm Parallel Distance=13mm Size=20mmX16.1mmX15.8mm
Horizontal Bobbin EE16 Transformer Bobbin With 6+6 Pins
6+6 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=12.5mm Size=15.6mmX15mmX12.6mm
PQ40 Power Supply Transformer Vertical Bobbin
PQ40 ferrite core bobbin. No pin PQ40 transformer frame. Bobbin Size=36.0mmX34.0mmX30.5mm. Phenolic material PQ40 coil bobbin for transformer, used in PCB circuits, electrical machinery and power supplies.
EPC Transformer Bobbin Horizontal Bobbin 5+5 Pins
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=10.6mm Size=13.4mmX13.4mmX7.4mm
