MCTLB series DIP type large current inductor with shielded construction, has very low DC resistance, easy customized, high frequency range can up to 1.0 MHz. Our large current products are all lead-free. (RoHS)
brand:
MCTitem no.:
MCTLB Series High Current DIP Type Inductorshipping port:

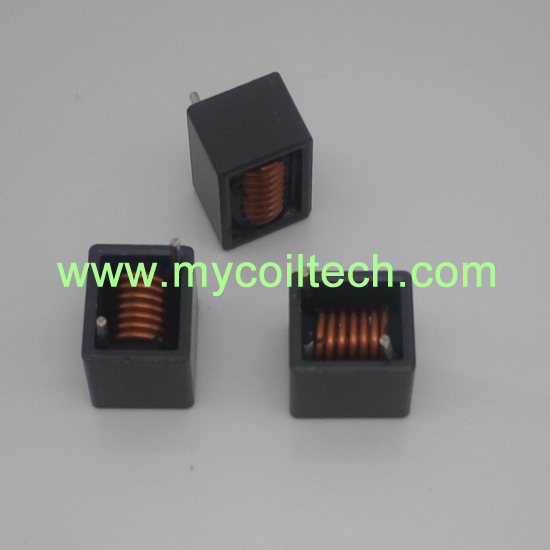

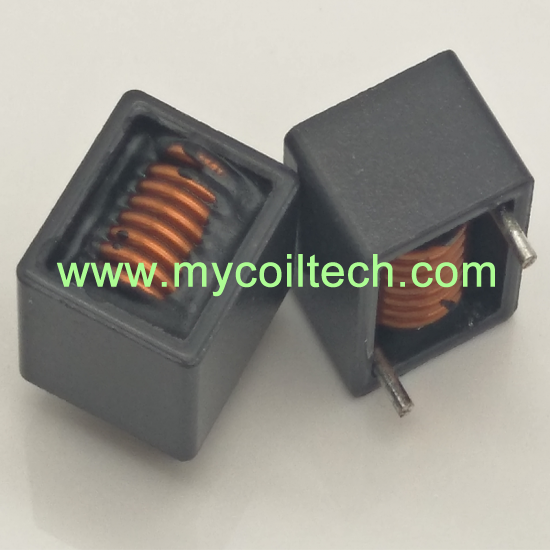

ShanghaiDIP type large current inductors with magnetic shield structure, have strong electromagnetic interference (EMI) resistance and vertical design. Our DIP type high current inductor mainly used in switching power suppliers, DC-DC converters, high frequency SMP, EMI filters, computers, digital cameral and other consumer electronic products. DIP large current inductor materials we used are all lead-free products and RoHS compliant. MCTLB series high current DIP type inductor are our new design inductors, we also accept custom design.
Quick Details
|
Part No: MCTLB Series High Current DIP Type Inductor |
|
Brand name: MCT |
|
Inductance at IDC is a typical value for the component taken at IDC |
|
Custom made: Available |
|
L0 test condition: 100KHz/1.0Vrms, 0ADC |
|
Logo: Can be customized |
|
Testing ambient temperature is referenced to 25°C |
|
Packing: Carton,can custom |
|
Operating temperature range: -40°C~+120°C |
|
MOQ: Any quantity |
|
Certification: ISO9001,ROHS,CE |
|
OEM: Available |
|
Lead time: 25 days after payment |
|
Shipping: Air, Ship, etc |
Part Information
Product Name: DIP High Current Inductor for EMI Filters
Applications: Switching power supplies, High frequency SMPS, EMI filters, High current DC/DC converters,Automotive electronics.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray(Available in tape and reel package, three-layer carton packaging, is helpful for protection of high current inductor product performance. )
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Advantages:Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected and UL certified. We accept custom made and design service.
Product Details
Mechanical dimension: Unit: mm
Electrical Characteristics:
MCT PN
L(0A)
uH±20%
DCR（mΩ）
max
L（rms）
uH±20%
Irms
A
Isat
A
E
F
MCTLBR47M
0.47
0.85
(Typ 0.75)
0.45
40
54
10.0±1
1.7±0.1
MCTLBR60M
0.60
0.85
(Typ 0.75)
0.55
40
50
10.0±1
1.7±0.1
MCTLBR80M
0.80
0.85
(Typ 0.75)
0.68
36
40
10.0±1
1.7±0.1
MCTLB1R0M
1.00
1.30
(Typ 1.15)
0.94
34
38
10.2±1
1.5±0.1
Note:
1.L0 test condition:100KHz/1.0Vrms，0ADC
2.Inductance at IDC is a typical value for the component taken at IDC
3. Heating current will cause an approximate ΔT of 40°C without core loss
4. Saturation current that will cause L0 approximate 20% rolloff with 25°C ambient temperature
5. Testing ambient temperature is referenced to 25°C
6.Operating temperature range -40°C~+120°C
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
High Current DIP Type Inductor High Frequency Power Inductor
DIP type high frequency inductor has low cost, shielded construction, very low DC resistance. It’s easy customized and high frequency range can up to 1.0 MHz. Our large current products are all lead-free. (RoHS)
Large Current DIP Inductor low Resistance and High Frequency
DIP type high current inductor has very low DC resistance, mainly for motherboards, laptop, desktop computers. DC/DC converter in distributed power systems. Inductor for general purpose use.
DIP Power Inductor for Shielded Large Current
DIP large current inductor has low resitance and high frequency. mainly for motherboards, laptop, desktop computers. DC/DC converter in distributed power systems.
Large Current Inductor DIP Shielded Power Inductor
DIP large current inductor has low resitance and high frequency. mainly for motherboards, laptop, desktop computers. DC/DC converter in distributed power systems, we make customized current inductors, samples can be sent for testing.
EE55 Flyback Transformer Horizontal Bobbin 11+11 Pins
EE55 horizontal bobbin for power transformer, 11+11pin EE55 phenolic coil former. Bobbin Size=55.0mmX45.1mmX40.5mm, pin pitch=5.0mm, parallel distance=40mm. We are China bobbin factory, we have many private bobbin toolings, for special size bobbin, we can make new tooling to meet your size.
SQ19 Filter Inductor Horizontal Base 2+2 Pins
2+2 pins SQ19 inductor base, horizontal ET coil former for common mode choke inductor. Size=24.0mmX14.3mmX12.5mm. Parallel Distance=10.0mm. Pin pitch=19.0mm. PET material base. We are professional bobbin factory, we have made different series bobbin moldings, samples are available.
EP7 Power Supply SMT Transformer 4+4 Pin Bobbin
Transformer for Lighting Lamp. 4+4 pin horizontal coil former, we make bobbin tooling to meet special requirement. Bobbin for power supply transformer. Customized design and OEM service are accepted.
High Voltage Vertical EE33 Transformer Coil Former
EE33 ferrite core bobbin. 6+6 pin EE33 vertical bobbin. Parallel Distance=22.6mm. Pin pitch=5.0mm. Bobbin size=29.0mmX28.2mmX28.2mm. EE series ferrite cores widely used in power transformers and low signal applications, welcome customized transformer and inductors.
ETD29 Horizontal Bobbin With Clips For Transformer
Stainless steel ETD29 transformer clips. Silver transformer iron clamps. Clips Size=34.75mmX8mmX8.5mm. Clips Material: stainless steel material clips. UL REC:94V-0. Accept custom design.
EE19 Vertical High Power Transformer Bobbin 3+3 Pins Winding Bobbin
EE19 vertical transformer bobbin. 3+3 pins coil former. Parallel distance=10.5mm.Pin Pitch=4.75mm. Dip bobbin. Bobbin Size=15.5mmX15mmX19.3mm. UL REC: 94V-0
T39 Common Mode Choke 2+2 Pin Base
Large current inductor with 2+2 pin base. We manufacture final inductor for customer. Base Size=38.0mmX25.0mmX4.2mm. Pin distance=16.5mm. Parallel distance=19mm. We produce various toroidal cores for inductor, PFC choke, line filters.
Encapsulated Common Mode Choke Coils for High Frequency EMI Suppresion
Encapsulated common mode Chokes. MCT Case Potting Series Common Mode Choke Standard Winding. Compact and light weight. Testing frequency:1KHz/0.25V. Operating temperature:-40°C~+105°C
