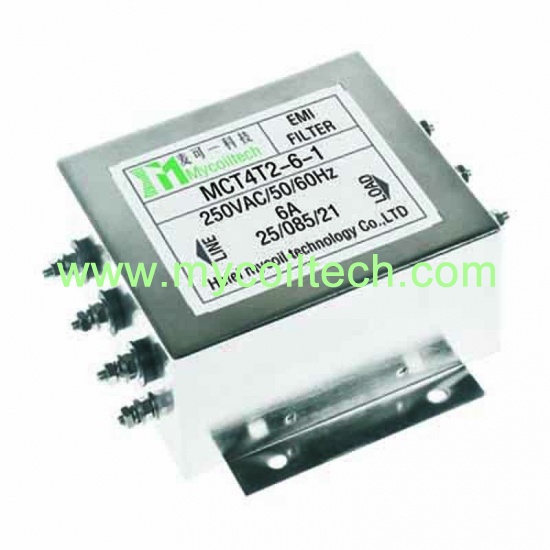

Three phase three line EMI filter 10A 200A. High quality components ensure the safety and reliability of filter. Chassis mounting with various connection: fast on/screw/wire terminal. Test voltage(1min): Line to ground:2700VAC. Line to Line:1450VDC. Excellent interference suppression performance for CM and DM.
brand:
MCTitem no.:
Three Phase EMI Filters Seriesshipping port:
Shanghai
General purpose, three phase three line EMI filters, space-saving design rated current from 5A to 200A. It has excellent interference suppression performance for CM and DM. We can provide samples for your testing. Welcome for customized products.
Quick Details
Part No: Three Phase EMI Filters Series |
Brand name: MCT |
Rated Voltage: 250/440VAC |
Custom made: Available |
Rated Current: 5A~200A |
Logo: Can be customized |
Operating Frequency: 50/60Hz |
Packing: Carton, can custom |
Temperature range : HPF25/085/21 |
Shipping: Air, Ship, etc |
Lead time: 25 days after payment |
MOQ: Any quantity |
Certification: ISO9001,ROHS,CE |
OEM: Available |
Part Information
Product Name: 250/440VAC General Purpose Three Phase Three Line EMI Filters
Applications: General purpose three phase filtering. Three-phase motor drives. Electrical equipment. Inverters and converters. Industrial applications. Various noisy applications requiring good filter performance. UPS and SMPS.
Packing details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Details
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
QQ: 2783136957
Contact: Miss Lily Yu
EF25 ferrite core bobbin. L pin coil former. Bobbin Size=33.4mmX26.8mmX19.0mm. Pin pitch=4.5mm. Parallel Distance=22.0mm. PA66 material transformer bobbin. DIP type winding bobbin.
Horizontal EF20 bobbin 5+5 pins. Single slot EF20 transformer bobbin. Bobbin Size=22mmX21.5mmX16.6mm. Parallel Distance=15.2mm. Pin pitch=3.8mm. Phenolic material EF20 bobbin. DIP transformer bobbin.
EE25 8+7 pin horizontal transformer bobbin. EE25 single slot transformer bobbin. Parallel Distance=25.8mm. Pin Pitch=3.8mm. Size=31.5mmX25.8mmX20mm. Phenolic material transformer bobbin. DIP transformer bobbin. UL REC:94V-0.
PQ40/40 no pin bobbin, ferrite core transformer PQ40. Bobbin Size=36.0mmX27.0mmX40.2mm. Phenolic material PQ40 bobbin forelectrical machinery, bobbin factory directly selling PQ40 series bobbins, wholesale PQ40/40 cores.
4+6 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=12.2mm Size=17.6mmX15.6mmX16.7mm
DC EMI filter mainly used in electric power supply, data system, testing equipment, digital system and other consumer electronics. Always designed for DC power line.

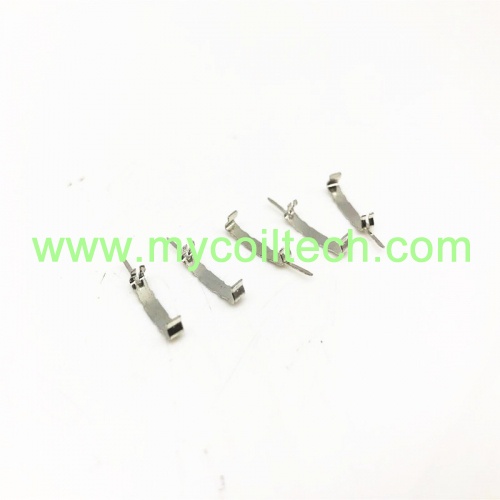

Through hole bobbin clip, RM8 transformer clips with SK7-0.4T material. Clip Size=15.8mmX13.5X4.5mm. We produce bobbins and supply matched cores, we manufacture final transformers. RM8 electronic transformers are widely used for LED driver, SMPS, lightening appliance, communication equipment, office equipment and household appliances.
