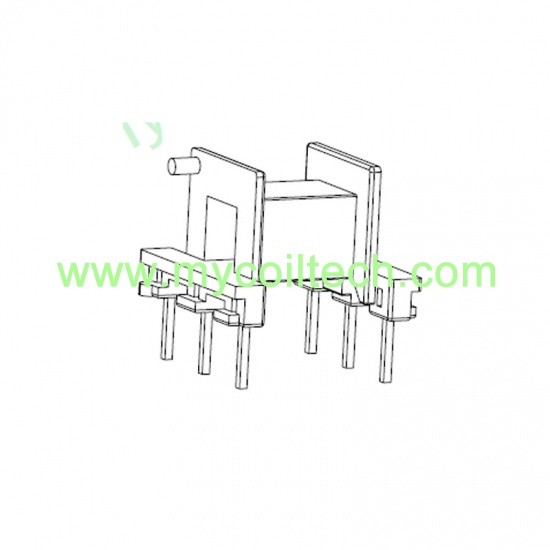

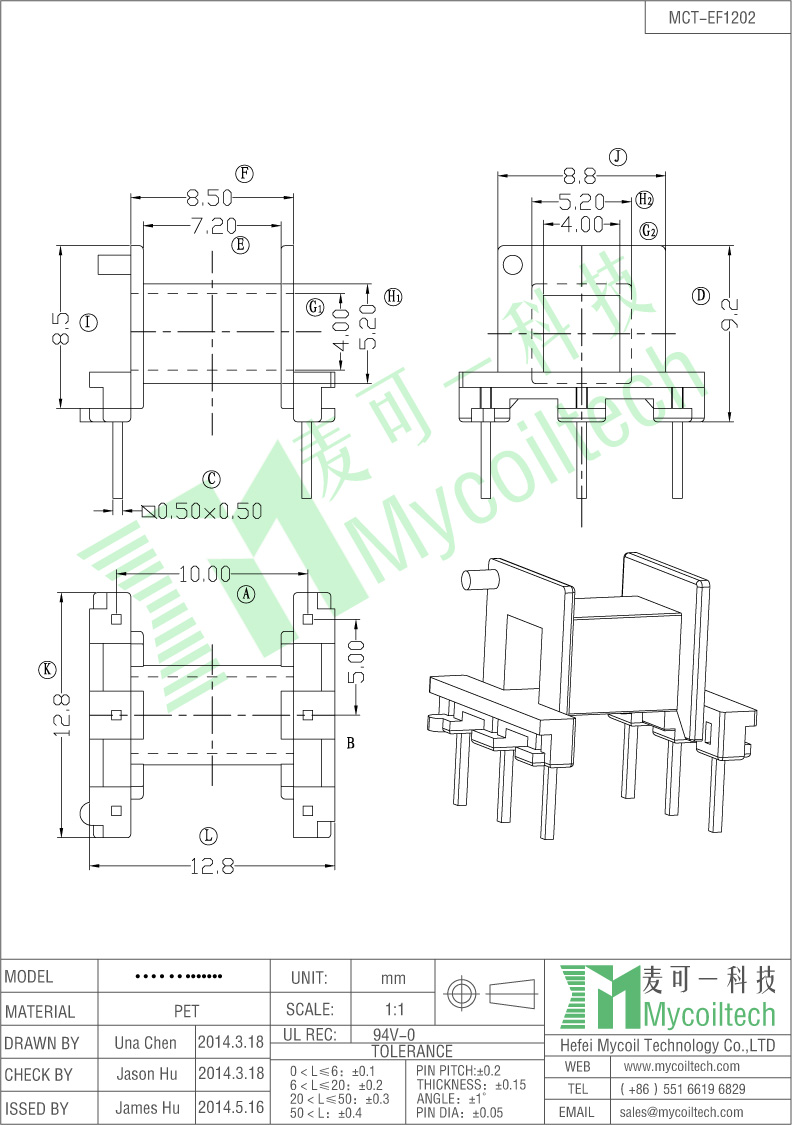

4+4 Pins Horizontal Bobbin,Phenolic Matereial,UL REC:94V-0
Pin Pitch=5mm Parallel Distance=10mm Size=12.8mmX12.8mmX9.2mm
brand:
MCTitem no.:
MCT-EF1202(H3+3P)MOQ:
1shipping port:
ShangHai
Low price ,High quality ,welcome!!!
Quick Details
|
Place of Origin: Hefei,China(Mainland) |
|
Custom Made: Available |
|
Material: Phenolic |
|
Part Number: MCT-EF1202(H3+3P) |
|
Brand Name: MCT |
|
Color: Black |
|
Certification: ISO9001,ROHS,CE |
|
Packing: Carton,can be customized |
|
OEM: Available |
|
Lead Time: 25 days after payment |
|
Logo: Can be customized |
|
MOQ: Any quantity |
Part Information
Product Name: 3+3 Pins EF12 Horizontal Bobbin.
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air ,By ship ,etc.
Advantages: Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
Contact: Miss Qian Gao
Email: qian.gao@mycoiltech.com
Skype: live:qian.gao_5
Product Specification
EF10 Electronic Transformer Bobbin, 4+4 Pin Horizontal Bobbin
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10.2mm Size=12.8mmX11mmX9.8mm
EF16 Power Transformer Horizontal Frame
EF16 drive transformer bobbin, horizontal bobbin EF16 with 4+4 pins. Row distance=17.80mm. Pin pitch1=3.8mm. Pin pitch2=5.0mm. Bobbin Size=20.8mmX18.3mmX13.3mm. Bobbin creepage distance1=6.5mm, creepage distance2=4.0mm. EF16 SMPS transformer widely used in electrical equipments, medical equipments, communication equipments, power supplies, vehicle electronic equipments.
EF13 Transformer Bobbin For PCB Mounting Transformer With 4+4 Pins
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10mm Size=13mmX13mmX12.1mm
EF20 Switching Power Supply Transformer Frame 5+7 Pins
EF20 high frequency bobbin, 5+7 pins EF20 horizontal bobbin. Coil former size=27.5mmX24.8mmX18.0mm, parallel distance=20.32mm, pin pitch/distance 1 =2.5mm. Pin pitch/distance 2＝5.08mm. This is our latest best selling product that supports small batch customization. We can also custom transformer related products.
EF20 5+5 Pins Vertical Bobbin for Electronic Transformer
EF20 household appliance transformer bobbin is a very popular product in our factory, 5+5 pins EF20 vertical coil former. Bobbin size=22mmX13.8X23.4mm. We accept custom orders for high frequency transformers, inductors, current transformers, etc.
