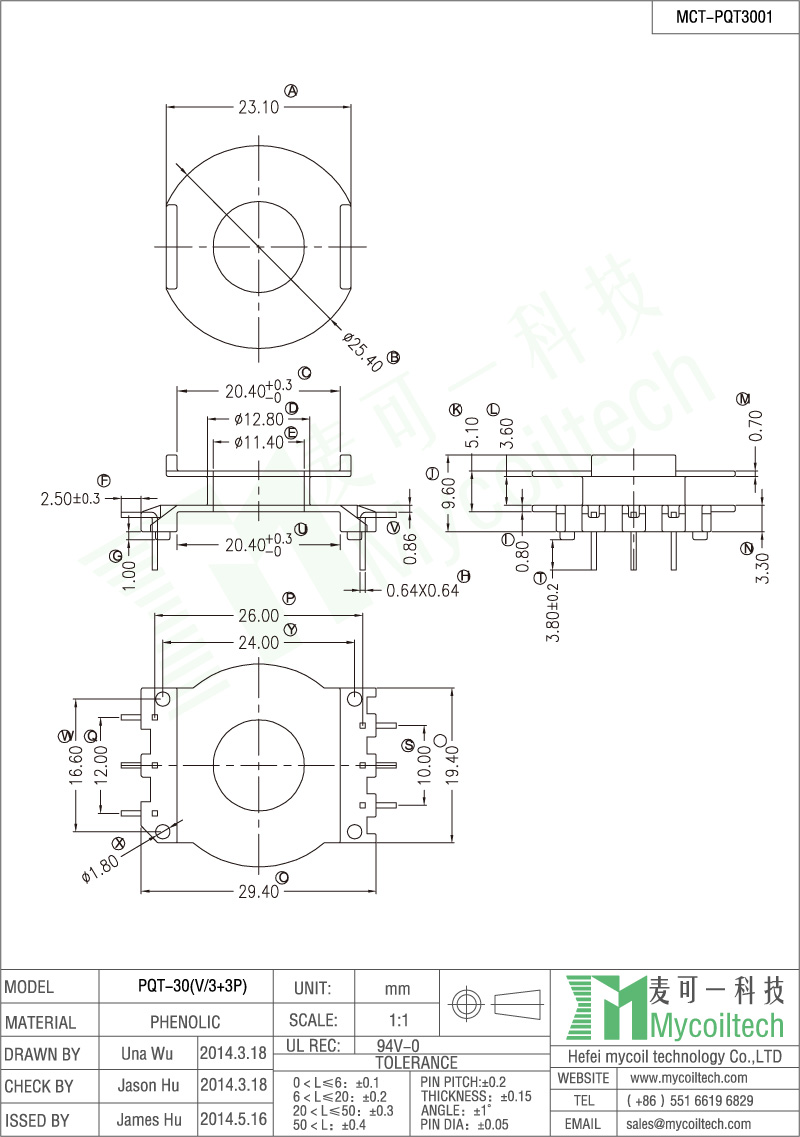

3+3 Pins POT30 bobbin for transformer. Phenolic bobbin.
6 Pins vertical transformer bobbin.Parallel Distance=26mm.
Bobbin Size=29.4mmX25.4mmX9.6mm. UL REC:94V-0.
brand:
MCTitem no.:
MCT-POT3001(V3+3P)shipping port:
ShanghaiHot selling POT30 3+3 Pins vertical transformer bobbin. We are professional transformer bobbin factory. If you are looking for customized transformer bobbins, welcome to contact us.
Quick Details
|
Part Number: MCT-POT3001(V3+3P) |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: 3+3 Pins POT30 Electronic Transformer Bobbin 6 Pins Phenolic Vertical Bobbin
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Advantages: Professional transformer winding bobbin factory, complete specifications.
Our Factory is made up of 500 people, huge output can be finished every day.
All materials are environmental protected. We accept custom made and design service.
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
Product Specification
GU2616 Single Core Bobbin For Transformer
GU26/POT26 coil former. PA66/plastic material GU series transformer frame, we supply matched clips and ferrite cores. GU core mainly used for adjustable LC filter, various transformers and inductors, sensors. We manufacture final transformer and inductor, customized parameters also workable.
PQ32 High Frequency Isolation Transformer Clips
PQ32 clip for power charge transformer. China transformer bobbin factory, we manufacture SMPS transfromers and inductors. We make new bobbin tooling to meet special size requirements. PQ32 power transformer widely used in PCB circuits, UPS, microcomputer equitpment, computers, scanner and other electrical equipments.
EE55 High Frequency Switching Transformer Bobbin
EE55 11+11 pin coil former. Parallel Distance=40.0mm. Pin pitch=5.5mm. Horizontal bobbin coil transformer used in led driver. EE55 transformer used in electromagnetic shielding power field, household appliances, SMPS, medical equipments, CPs, lighting equipments, production equipments, etc.
SMD Choke Coil Inductor With Base
Toroidal base inductor. SMD base made of LCP material. We manufacture various line filter and power inductor for customers, special specifications available upon request. Our high current inductors made with soft ferrite core, include NiZn, MnZn, Amorphous, Iron powder core.
PQ20 Vertical Bakelite High Frequency Bobbin 6+8 Pins
PQ20 DIP bobbin 6+8 pins. PQ20 vertical type winding bobbin. Pin pitch1=2.5mm. Pin pitch2=3.8mm. Parallel Distance=20.3mm. Size=23.3mmX23.2mmX18.2mm. We can make bobbin tooling.
Horizontal Bobbin EF16 Transformer Bobbin Phenolic Material With 4+4 Pins
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=17.78mm Size=21mmX17.7mmX13.5mm
T14*9*5 Plastic Transformer inductor Base 2+2 pin
Common mode choke inductor base. 2+2pin . Base Size=12.5mmX7.5mmX7.7mm. China transformer manufacturer.

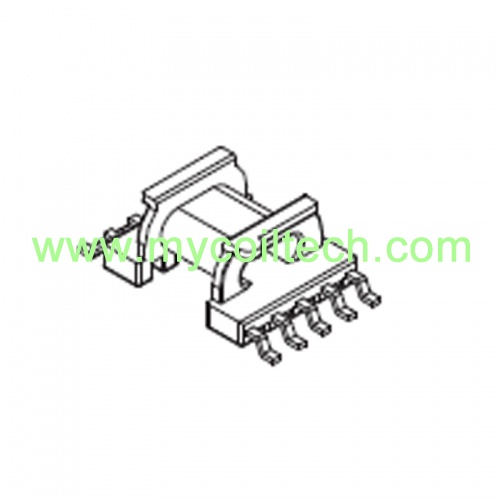

Ferrite Magnet Core EFD15 SMD Bobbin
SMT EFD15 power transformer, 6+6 pins horizontal EFD15 bobbin. Pin Pitch=2.5mm. Parallel distance=15.0mm. Bobbin Size=21.3mmX17.0mmX7.4mm. EFD15 transformer bobbin made of PM9630 material.
Common Mode Choke Variable Inductors And Coils Base
3+3 Pin Inductor Base,Phenolic Material,UL REC:94V-0 Base Pin Pitch=3.5mm Parallel Distance=7mm Inductor base size=10.6mmX10.6mmX5.5mm
Double Slot ET20 Transformer Bobbin for Common Mode Choke Coil
ET20 filter inductor bobbin. ET/UT20 two section bobbin output transistors. Size=15.6mmX11.5mmX7.9mm. PBT material transformer bobbin. We can make tooling to meet different dimensions. UL REC: 94V-0
EI19 Vertical Transformer Bobbin Pin 4+6 For Ferrite Core
EI19 vertical type coil bobbin. 4+6 pins EI19 single slot transformer bobbin. Bobbin Size=17.8mmX15.5mmX16.6mm. Parallel Distance=12.2mm. Pin Pitch1=3.5mm. Pin Pitch2=2.7mm. DIP transformer bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.
Phenolic Transformer Bobbin EI19 Vertical Bobbin Pin 4+4
EI19 vertical bobbin with 4+4 pin. EI19 single slot transformer bobbin. Bobbin Size=19.9mmX15mmX16.2mm. Parallel Distance=10mm. Pin Pitch=5mm. DIP transformer bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.
