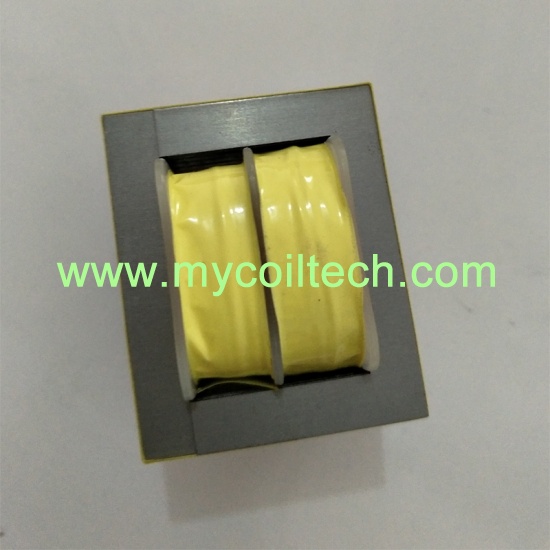

Low frequency EI66 laminated transformer. International standard EI silicon steel. Low frequency and high power output transformer. Rugged construction - no additional mounting hardware, universal design, fits industry-standard footprints. Low Frequency, open-style laminated, split bobbin, horizontal plug-in series.
brand:
MCTitem no.:
EI66 Laminated transformers 36.0VA Seriesshipping port:
ShanghaiWe are ISO9001 certified factory, we mainly produce various transformers. If you are looking for high quality EI series low frequency laminated power transformers, we can send sample for your testing, if our sample approved your testing, then we can began from small order to big order, custom design and OEM service also available.
Quick Details
Part No: EI66 Laminated transformers 36.0VA Series |
Brand name: MCT |
High (2500V) isolation; 2500VRMS HIPOT |
Custom made: Available |
Non-concentric design - eliminates ESS |
Logo: Can be customized |
High insulation performance |
Packing: Carton,can custom |
Available in single or dual primary |
OEM: Available |
Certification: ISO9001,ROHS,CE |
Shipping: Air, Ship, etc |
Lead time: 25 days after payment |
MOQ: Any quantity |
Part Information
Product Name: 36.0VA EI66 Low Frequency Laminated Transformer For PCB Mounting
Product Benefits: No crossover between primary/secondary winding leads, Vacuum impregnated - withstands board washing, Systems and reduces audible noise, Baked resin provides an environmentally-resistant finish.
Applications: air conditioner, VCD, UPS power supply, microwave oven, amplifier, medical treatment, chemical industry and other electronic machine.
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specifications
MCT Part No. 115V-6Pin |
MCT Part No. 115V/230V-8Pin |
Secondary RMS Rating |
|
Series |
Parallel |
||
MCT-ST7-10B51 |
MCT-DST7-10B51 |
10V C.T. @ 3.6A |
5V @ 7.2A |
MCT-ST7-12B52 |
MCT-DST7-12B52 |
12.6V C.T. @ 2.85A |
6.3V @ 5.7A |
MCT-ST7-16B53 |
MCT-DST7-16B53 |
16V C.T.@ 2.25A |
8V @ 4.5A |
MCT-ST7-20B54 |
MCT-DST7-20B54 |
20V C.T. @ 1.8A |
10V @ 3.6A |
MCT-ST7-24B55 |
MCT-DST7-24B55 |
24V C.T. @ 1.5A |
12V @ 3.0A |
MCT-ST7-28B56 |
MCT-DST7-28B56 |
28V C.T. @ 1.3A |
14V @ 2.6A |
MCT-ST7-36B57 |
MCT-DST7-36B57 |
36V C.T. @1.0A |
18V @ 2.0A |
MCT-ST7-48B58 |
MCT-DST7-48B58 |
48V C.T. @ 0.75A |
24V @ 1.5A |
MCT-ST7-56B59 |
MCT-DST7-56B59 |
56V C.T. @ 0.65A |
28V @ 1.3A |
MCT-ST7-120B60 |
MCT-DST7-120B60 |
120V C.T. @ 0.3A |
60V @ 0.6A |
