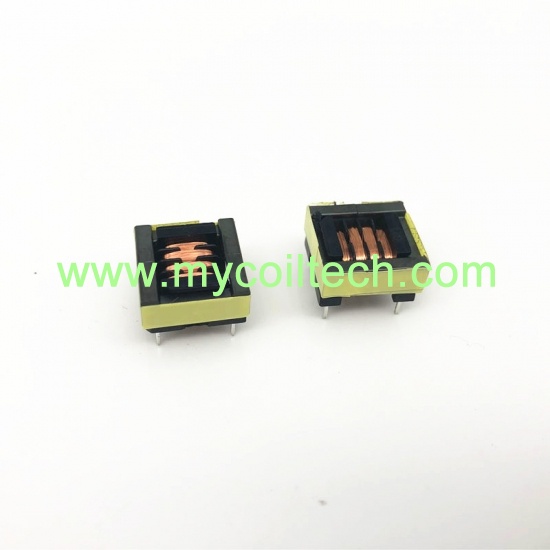

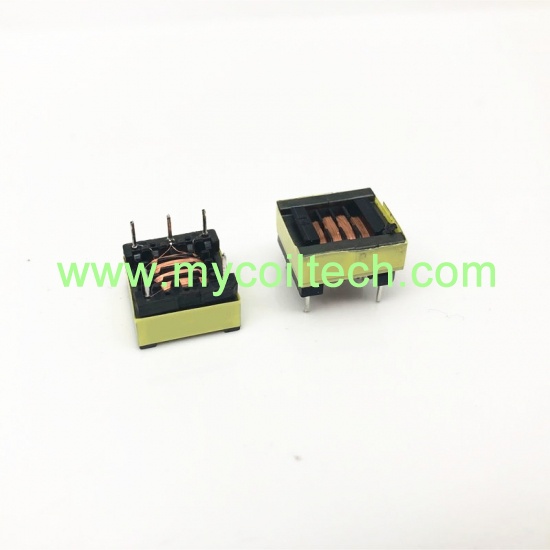

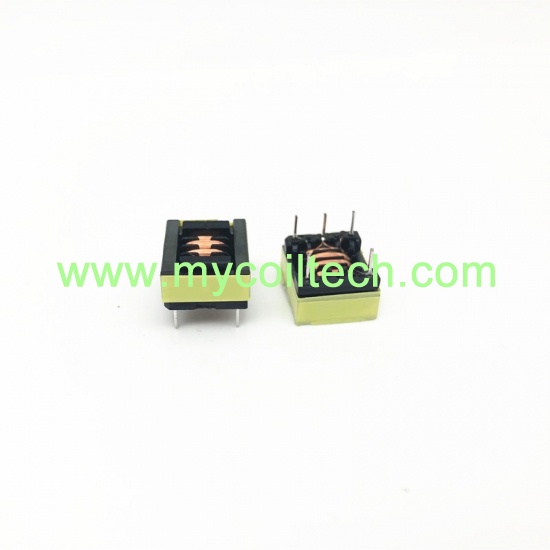

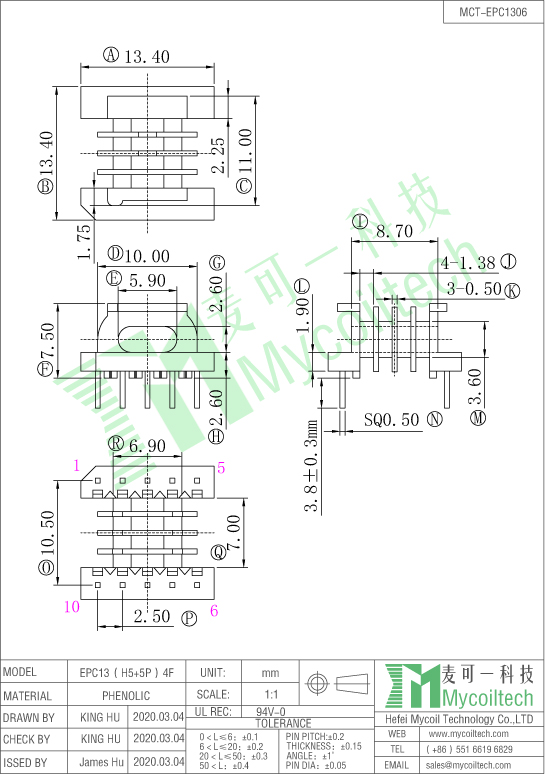

5+5 pins horizontal EPC13 multi section coil bobbin, EPC13 coil former factory, pin pitch=2.5mm, Parallel Distance=10.5mm. Bobbin Size=13.4mmX13.4mmX7.3mm, phenolic material transformer bobbin.
brand:
MCTitem no.:
MCT-EPC1306shipping port:
ShangHaiEPC13 four slots coil former, 5+5 pin horizontal EPC13 bobbin, supply matched ferrite cores, samples can be sent for testing.
Product Specification
EPC13 Power Transformer Bobbin Cover
EPC13 electronic transformer cover. Bobbin factory sale coil former, cover size=16.0mmX16.0mmX10.0mm. We produce various bobbins, we can make new tooling to meet special size requirements. EPC13 electronnic transformers widely used for PCB circuits, UPS, computers, switching power supplies,TVs, monitor, scanner and other electronics.
SMPS Flyback Transformer Bobbin EPC40 Core
PCB current transformer manufacturer. EPC40 high frequency bobbin mainly used for auxiliary powr transformer and main power transformer. Bobbin Size=41.5mmX26.2mmX23.2mm. Pin distance=5.0mm. We are bobbin factory, we supply various gigh quality ferrite cores for customers.
EPC Transformer Bobbin Horizontal Bobbin 5+5 Pins
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=10.6mm Size=13.4mmX13.4mmX7.4mm
EPC13 Horizontal Bobbin For High Frequency Transformer 5+5 Pins
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10.5mm Size=13.3mmX13.3mmX7.5mm
Horizontal Bobbin EPC13 Transformer Bobbin With 5+5 Pins
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10.5mm Size=13.3mmX13.3mmX7.2mm
