Manufacture RF balun transformer, available in various size, Our base pins are terminal treated,with low profile SMD balun coil. We make balun transformer for broadband transmission devices, impedance transmission.
brand:
MCTitem no.:
RF Balun Transformershipping port:
Shanghaipayment:
T/T in advanceprice range:
1000-5000/0.36$High quality SMD RF balun transformer, we manufacture and supply various electronic transformers, our engineer team provide technical support and make samples for customers. Customized magnetic components also available.
Quick Details
|
Part No: RF Balun Transformer |
|
Brand name: MCT |
|
Frequency: 25 to 500MHz |
|
Custom made: Available |
|
Operating temperature: -40 ℃ to + 85 ℃ |
|
Logo: Can be customized |
|
Storage temperature: -55 ℃ to + 125 ℃ |
|
Packing: Carton,can custom |
|
Storage humidity: 30 to 95% |
|
Certification: ISO9001,ROHS,CE |
|
RF power: 0.50W |
|
OEM: Available |
|
5Ω Characteristic Impedance |
|
Shipping: Air, Ship, etc |
|
Lead time: 25 days after payment |
|
MOQ: Any quantity |
Part Information

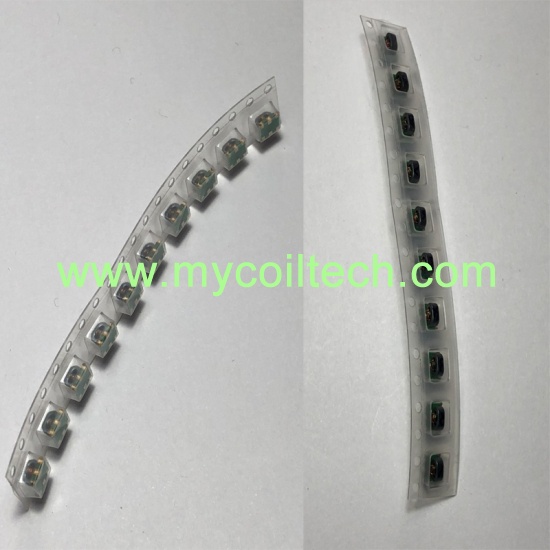

Product Name: 5Ω RF Balun Transformer For Surface Mounting
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Delivery: We cooperated with TNT/FedEx/UPS/DHL for door to door service.
Applications: Broadband and wireless communications. Double balance mixers, impedance transformers, matching power combining and splitting, directional couplers of mixers, set-top -box and cable modem.
For more details, please contact us, we will give you fast reply:
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
