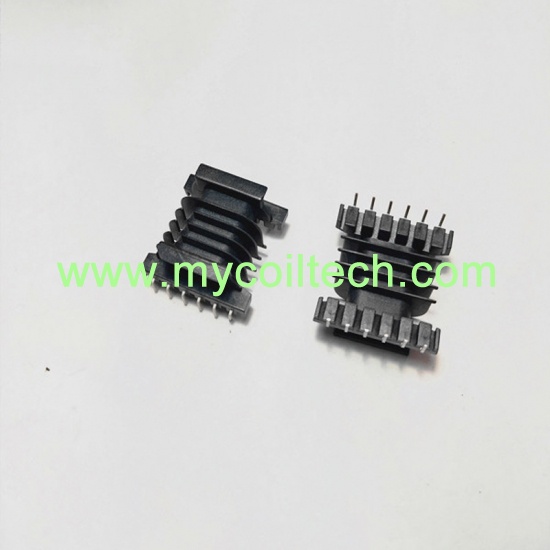

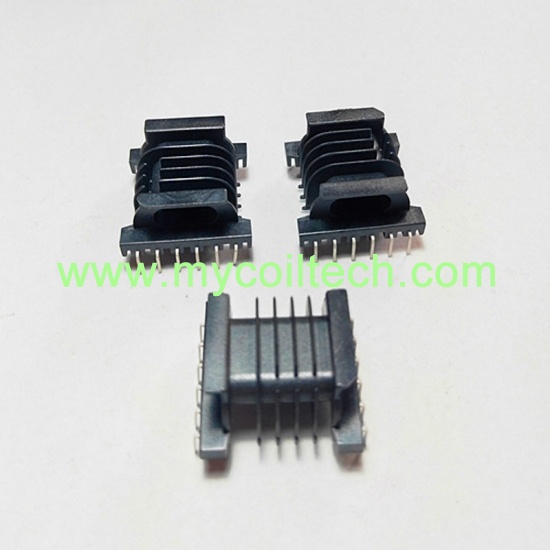

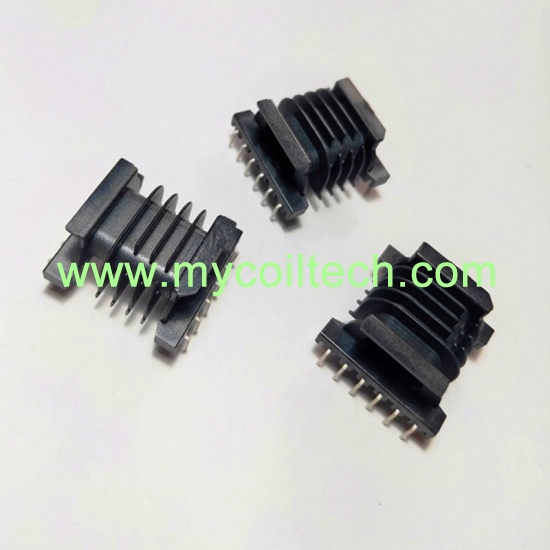

6+6 Pin EPC25 SMD Coil Former With Five Slots Bobbin

SMD EPC25 transformer bobbin. Horizontal bobbin five slots bobbin. Pin Pitch=3.75mm. Parallel distance=25.1mm. Bobbin Size=27.5mmX24.9mmX11.4mm.6+6 pins transformer bobbin made of LCP-E4008 material. Customized transformer design is accepted.

brand:
MCT
item no.:
MCT-SMD-EPC2501(H6+6P5F)
shipping port:
Shanghai
payment:
T/T in advance;PayPal

contact now

product description

Good quality SMD EPC25 transformer bobbin from MCT, we can provide samples for the testing.

Quick Details

Part No: MCT-SMD-EPC2501	Brand Name: MCT
Material: LCP-E4008	Color: Black
UL REC: 94V-0	Logo: Can be customized
Lead Time: 20 days after payment	Custom Made: Available
Certification: ISO9001,ROHS,CE	Packing: Carton, accept customize
OEM: Available	MOQ: Any quantity

Part Information

Product Name: 6+6 Pin EPC25 SMD Coil Former With Five Slots Bobbin

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: SMPS transformers,high frequency transformers,drive transformer.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

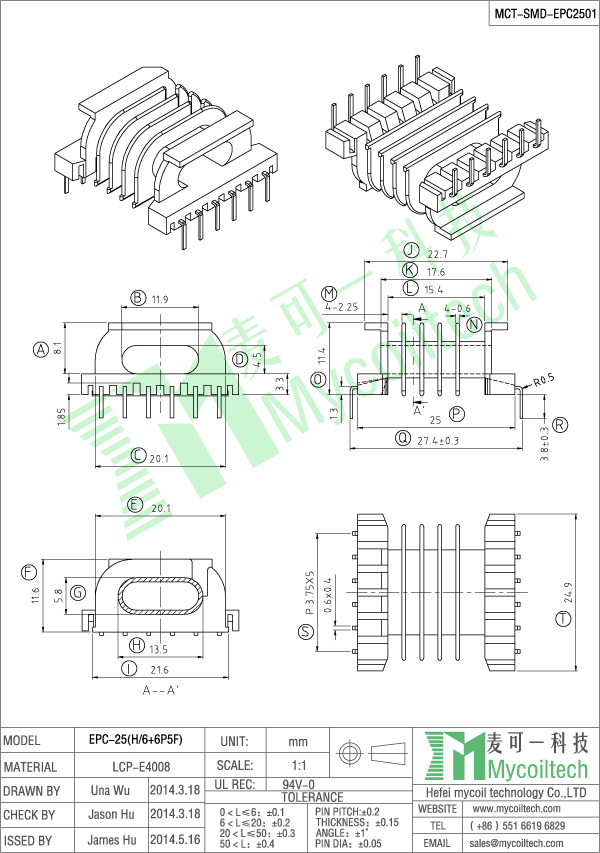

Product Specification

EPC25 multi section coil former

Any questions, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: live:sales003_125

Contact: Miss Lily
