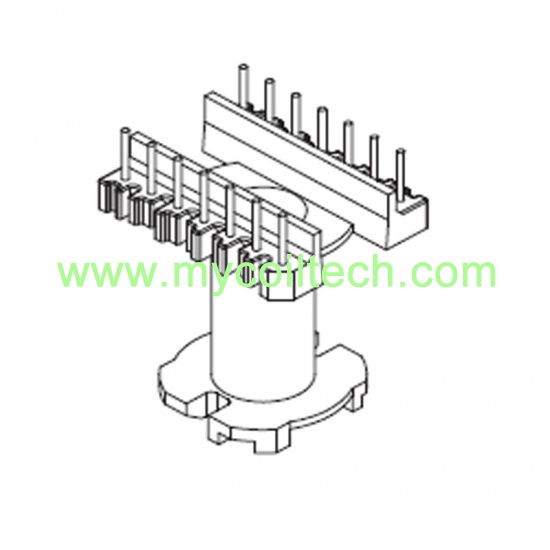

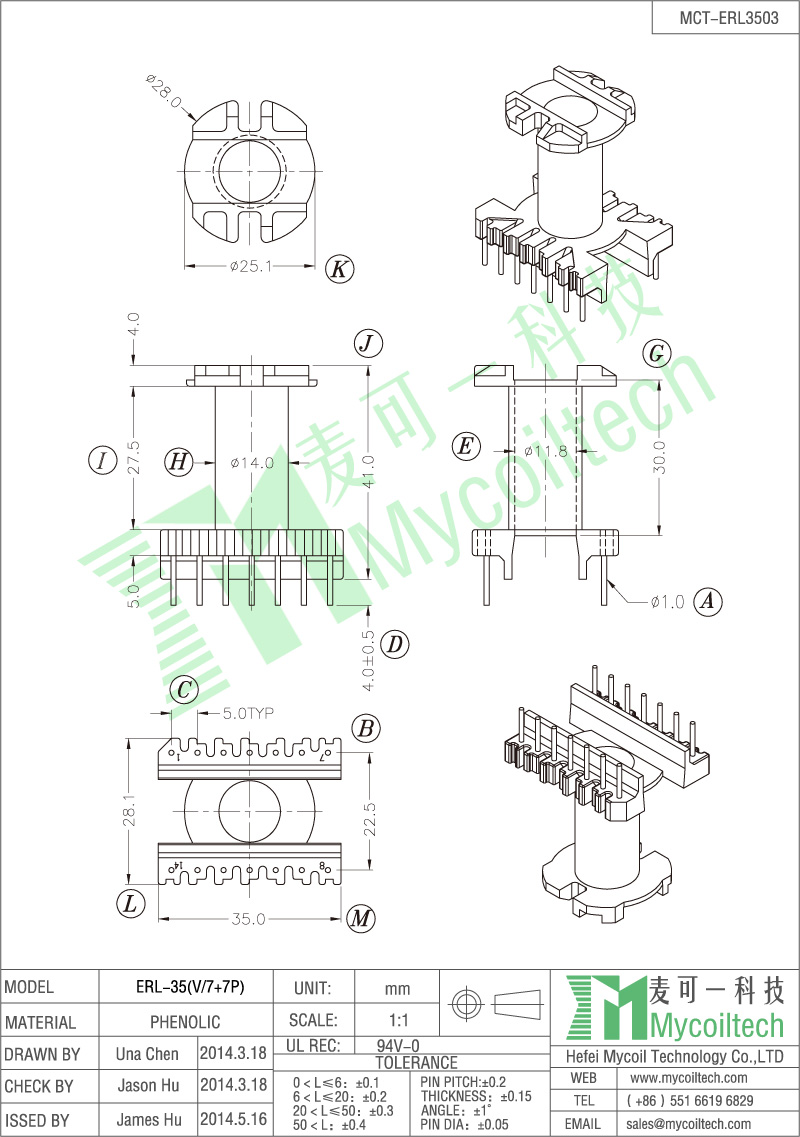

14 pins phenolic ERL type bobbin. Vertical transformer bobbin.
Parallel Distance=22.5mm. Pin Pitch=5.0mm. UL REC:94V-0
Bobbin Size=35mmX28.1mmX41mm. Accept make bobbin tooling.
brand:
MCTitem no.:
MCT-ERL3503(V7+7P)shipping port:
ShanghaiBobbin factory hot selling 7+7 pins vertical ERL transformer bobbin. The bobbin materials we used are RoHS and REACH compliant. We have our own quality control department, our engineering and technical personnel can quickly respond to make bobbin drawings and samples.
Quick Details
Part Number: MCT-ERL3503(V7+7P) |
Brand Name: MCT |
Material: Phenolic |
Color: Black |
UL REC: 94V-0 |
Logo: Can be customized |
Lead Time: 20 days after payment |
Custom Made: Available |
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: 7+7 Pins Bobbin ERL35 Vertical Electronic Transformer Bobbin
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Advantages: Professional transformer winding bobbin factory, complete specifications.
Our Factory is made up of 500 people, huge output can be finished every day.
All materials are environmental protected. We accept custom made and design service.
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
Product Specification
7+7 Pins ERL type horizontal transformer bobbin. DIP bobbin. Parallel Distance=37mm. Pin Pitch=5mm. UL REC:94V-0. Bobbin Size=43.5mmX36mmX28.8mm. ERL35 phenolic bobbin.
ERL35 vertical transformer bobbin. 6+6 pins phenolic bobbin. Parallel Distance=22.5mm. Pin Pitch=5.0mm. UL REC:94V-0 Bobbin Size=30.2mmX28.5mmX40.5mm. Accept make bobbin tooling.
Filter transformer bobbin factory. Horizontal EP7 4+4 pins bobbin, bobbin size=9.3mmX8.9mmX8.2mm, pin pitch=2.5mm, parallel distance=6.7mm. Bobbin for power supply. Customized design and OEM service are accepted.
Transformer bobbin case supplier. Phenolic material case. Case Size=20.4mmX9.7mmX6.2mm. Parallel distance=7.62mm. When transformer assembled by bobbin and magnet cores, we use case to cover the transformer.
Customized EE8.3 power transformer. EE8.3 horizontal single slot bobbin. Pin Pitch=2.9mm Parallel Distance=6mm. Bobbin Size=9.0mmX8.8mmX8.0mm. 3+3 pins EE8.3 phenolic material bobbin. We make bobbin tooling for customer.
Step transformer bobbin. 5+5pin EE13 horizontal EE13 bobbin. Mn-Zn ferrite core bobbin. Parallel Distance=8.5mm. Pin pitch=2.5mm. Coil former Size=12.3mmX12.3mmX11.1mm. We produce and design various EE13 electronic transformers, mainly used for power supplies, lighting, UPS, computer equipment, telecom communication systems, welding machines and other industries.
AC three phase input EMI filter for inverter, with high interference industrial environment. (1)Test Voltage ( 1min ): Line to Ground: 1450VAC. Line to Line: 2700VAC. (2)Leakage current(max): Line to Ground: @250VAC/50Hz (3)Various connection optional: bolt and busbar terminals.
2+2 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch1=2.75mm Pin Pitch2=9mm Parallel Distance=16mm Size=19.3mmX12.7mmX12.6mm
Four slots coil former. ET28 common mode choke design. Coil Size=21.5mmX18.3mmX10.8mm. PBT material choke coils factory. We can make tooling to meet different dimensions.UL REC: 94V-0
5+5 pins EE22 single slot bobbin. Vertical EE22 DIP bobbin. Parallel Distance=12.0mm. Pin pitch=4.0mm. Bobbin Size=22.2mmX15.9mmX17.2mm. We are transformer bobbin factory, we have many bobbin toolings, for special size bobbin, we provide make tooling service, and we manufacture various high frequency transformers for SMPS.
5+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=17mm Size=22mmX19.5mmX15.9mm
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10mm Size=13.9mmX13.8mmX10.7mm
