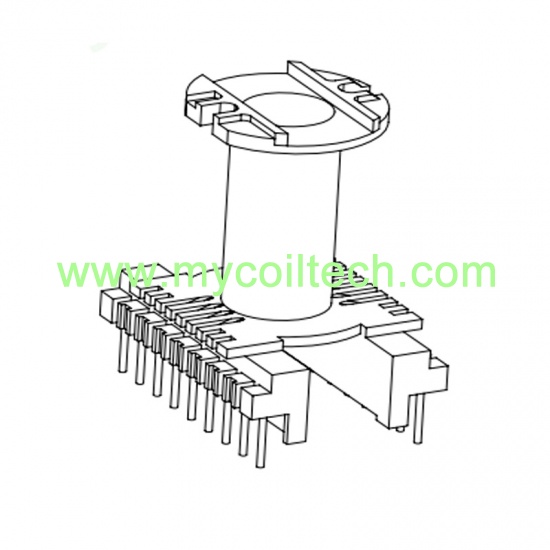

ER39 vertical electronic transformer bobbin. Dip Bobbin.
Parallel Distance=25mm. Pin Pitch=5mm. UL REC:94V-0
Bobbin Size=44mmX31mmX47.3mm. ER39 phenolic bobbin.
brand:
MCTitem no.:
MCT-ER3901(V9+9P)shipping port:
ShanghaiTransformer bobbin factory hot selling ER39 vertical transformer bobbin, 9+9 pins phenolic transformer bobbin. If you have high frequency transformer projects and need customized bobbins, you can send specification to us, our engineers can design suitable bobbins to meet your requirements. Any questions, welcome to contact us.
Quick Details
|
Part Number: MCT-ER3901(V9+9P) |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: 9+9 Pins Electronic Transformer Bobbin ER39 Vertical Transformer Bobbin
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Advantages: Professional transformer winding bobbin factory, complete specifications.
Our Factory is made up of 500 people, huge output can be finished every day.
All materials are environmental protected. We accept custom made and design service.
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
Product Specification
High Frequency ER42 Transformer 7+7 Pins Bobbin
Soft ferrite core ER42 bobbin. Vertical ER42 7+7 pins bobbin. Bobbin Size=40.3mmX30.0mmX44.3mm. Parallel Distance=25.0mm. Pin Pitch=5.0mm. ER42 high frequency transformer, with low magnetism leakage and good performance, we can start from samples.
ER7.5 SMD Bobbins for High Frequency Transformers
China factory direct sales, high quality ER7.5 vertical transformer frame, accept small order. Product Specification Welcome customized electronic transformer: Email: sales003@mycoiltech.com
ER42 Vertical Transformer 4+1 Pin Bobbin Double Slots
Vertical ER42 coil former, 4+1 pin ER42 transformer bobbin. Bobbin Size=37.6mmX33.0mmX52.7mm. Parallel Distance=28.0mm. ER42 high frequency vertical transformer, with low magnetism leakage and good performance, we can start from samples.
ER28 Switching Mode Power Transformer Frame
ER28/34 horizontal transformer, 6+6 pin ER28 bobbin with six grooves. Bobbin size=34.9mmX28.0mmX20.9mm, pin distance=5mm, parallel distance=26.0mm. We manufacture ER28 transformer for power supply, used in DC converters, with low magnetism leakage and good performance, welcome customized final transformers.
High Frequency ER14.5 SMD Transformer Bobbin
ER14.5 power transformers, SMD horizontal coil bobbin 6+6 pin. Parallel distance=12.0mm. Pin pitch=2.5mm. High voltage ER14.5 coil bobbin, LCP-E4008 material coil bobbin. We make bobbin tooling to meet customer's requirement. ER14.5 transformer for inverters, DC/DC converters, power systems, UPS, computers.
Hefei Mycoil Technology Co.,LTD(MCT) is a high-tech and growing enterprises, we are committed to the development and production of various types of coil products, various types of filter products. Meet the needs of customers with various required for...
