In the modern power electronics field, transformers are key devices for voltage conversion, electrical energy transmission, and distribution. Their performance directly affects the stable operation of the entire system. As a core structural component of transformers, the bobbin is like the framework of a building, playing a crucial role in the transformer's performance. Today, let's delve into the world of transformer bobbins and explore the mysteries of different types such as EF, EFD, ER, EE, POT, UU, EI, and PEE.

1. Basic Understanding of Bobbins

(1) Definition and Function of Bobbins

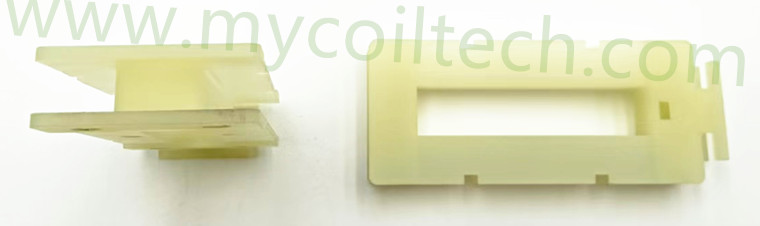

A bobbin, commonly known as a framework or spool in Chinese, is a key component in transformers used to support and wind coils. It not only provides physical support for the coils to ensure the accuracy of the coil's shape and position during winding but also serves as electrical isolation and insulation. This prevents short circuits between coils and between coils and the iron core, ensuring the safe and reliable operation of the transformer. Figuratively speaking, the bobbin is like the "skeleton" of the transformer, giving it its basic structural form while providing the necessary conditions for efficient electrical energy conversion.

(2).Overview of Bobbin Classification Methods

①.Classification by Magnetic Core Type: This is the most common classification method, as different magnetic core types correspond to different transformer application scenarios and performance requirements. Common types include EI, EE, EF, EPC, ER, RM, PQ, UU, etc. Each type can be further subdivided by magnetic core size, such as EE5, EE8, EE13, EE19, etc. This classification ensures that the bobbin of a high frequency electronic transformer can perfectly match a specific magnetic core, thereby maximizing the transformer's performance.

②.Classification by Shape: Bobbins can be divided into vertical and horizontal types based on shape. Vertical bobbins have pins perpendicular to the mounting plane and are typically used in compact spaces where vertical transformer installation is required, such as in power modules of small electronic devices. Horizontal bobbins have pins parallel to the mounting plane, occupying more horizontal space on the circuit board. However, they have advantages in applications with height restrictions, such as the bobbin of the PEE64 power adapter transformer in some flat-type power adapters.

③.Classification by Operating Frequency: Based on the transformer's operating frequency, bobbins can be categorized into high-frequency bobbins and low-frequency bobbins. Here, "frequency" refers to the number of periodic changes in the transformer during operation (measured in Hertz (Hz), often also in kilohertz (kHz), megahertz (MHz), or gigahertz (GHz)), not the number of uses. High-frequency bobbins are usually used in high-frequency transformers, such as the bobbin of the EE13 switching power supply transformer, with operating frequencies up to tens of kHz or even several MHz. The design and material selection of such bobbins must consider high-frequency characteristics, such as reducing high-frequency losses and improving insulation performance. Low-frequency bobbins are mainly used in low-frequency transformers, such as power frequency transformers, with typical operating frequencies of 50Hz or 60Hz. Low-frequency bobbins have relatively lower requirements for high-frequency characteristics but may have higher demands for mechanical strength and stability.

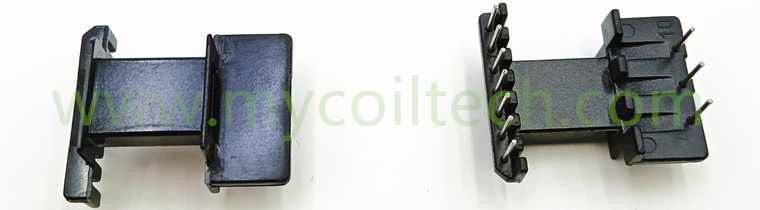

④.Classification by Pin Usage: Bobbins are divided into through-hole bobbins (DIP) and surface-mount bobbins (SMD) based on pin usage. Through-hole bobbins have long pins that can be directly inserted into the through-holes of the circuit board for soldering. This mounting method offers high mechanical strength and ease of maintenance and replacement but occupies more space on the circuit board. Surface-mount bobbins have short pins or use solder pads with Surface Mount Technology (SMT), allowing direct mounting on the surface of the circuit board. They have the advantages of small space occupation and suitability for high-density assembly, and are widely used in SMD-EFD20 home appliance transformer bobbins in modern home appliances.

3.Continuous updates...
