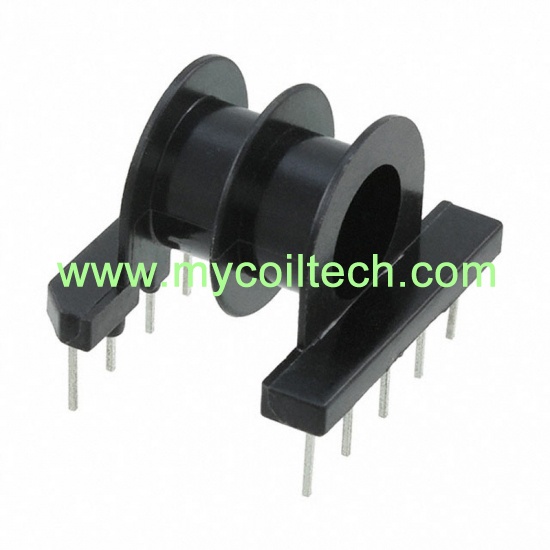

5+5 Pins EP20 Horizontal Transformer Bobbin

Double Slots EP20 Coil Bobbin Horizontal Bobbin 5+5 Pins

EP20 two slots bobbin 5+5 pin. Horizontal type coil former. Phenolic material bobbin. Parallel Distance=18.1mm. Pin pitch=5.1mm. Size=25.1mmX21.9mmX16.6mm. UL REC:94V-0. Custom design acceptable.

brand:
MCT
item no.:
MCT-EP2002(H5+5P2F)
shipping port:
Shanghai

contact now

product description

We are professional transformer manufacturer, we have been doing it successfully for over 10 years. If you are looking for competitive price EP20 horizontal transformer bobbin, double slots bobbin pin 5+5, welcome to contact us.

Quick Details

Part No: MCT-EP2002(H5+5P2F)	Brand Name: MCT
Material: Phenolic	Color: Black
UL REC: 94V-0	Logo: Can be customized
Lead Time: 20 days after payment	Custom Made: Available
Certification: ISO9001,ROHS,CE	Packing: Carton, accept customize
OEM: Available	MOQ: Any quantity

Part Information

Product Name: Double Slots EP20 Coil Bobbin Horizontal Bobbin 5+5 Pins

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.

Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

Product Specification

High quality EP20 frequency transformer bobbin supplier
