EC25 Vertical 5+5 Pin Bobbin For High Frequency Transformer

EC25 ferrite core bobbin 5+5 pin. Parallel Distance=14.5mm. Bobbin Size=17.5mmX12.4mmX3.9mm.Vertical type EC25 transformer bobbin. Phenolic material transformer Bobbin. DIP transformer bobbin. UL REC:94V-0.

  • brand:

    MCT
  • item no.:

    MCT-EC2501(V5+5P)
  • shipping port:

    Shanghai
contact now
product description

Bobbin factory hot selling EC25 electronic transformer bobbin, 5+5 pin vertical EC25 transformer bobbin. Competitive price and good quality bobbins, custom design and OEM service also available, if you have any requests, welcome to contact us.


Quick Details

Part Number: MCT-EC2501(V5+5P)

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EC25 Vertical 5+5 Pin Bobbin For High Frequency Transformer

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

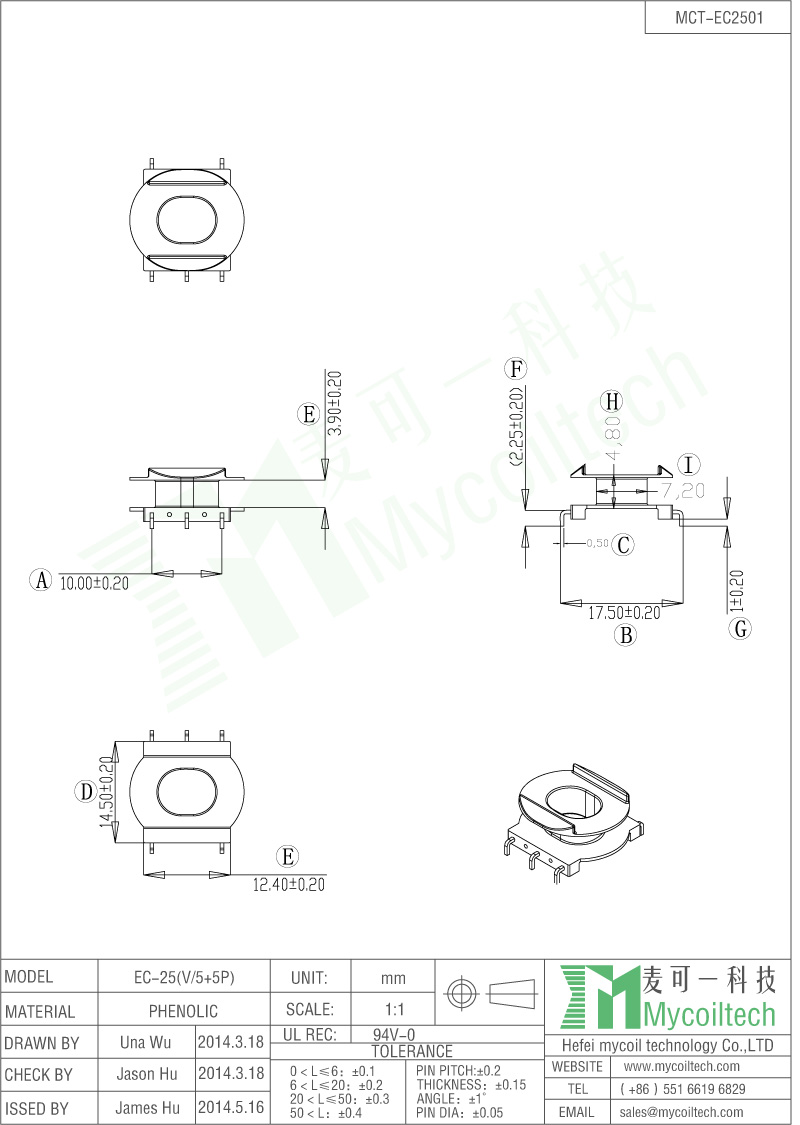

Product Specification

Latest EC25 coil former 5+5 pin vertical bobbin

Request a Free Quote

If you are interested in our products or have any questions, contact us now!
