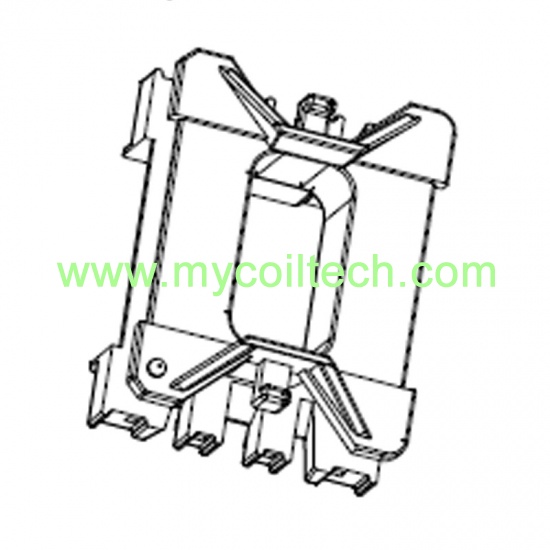

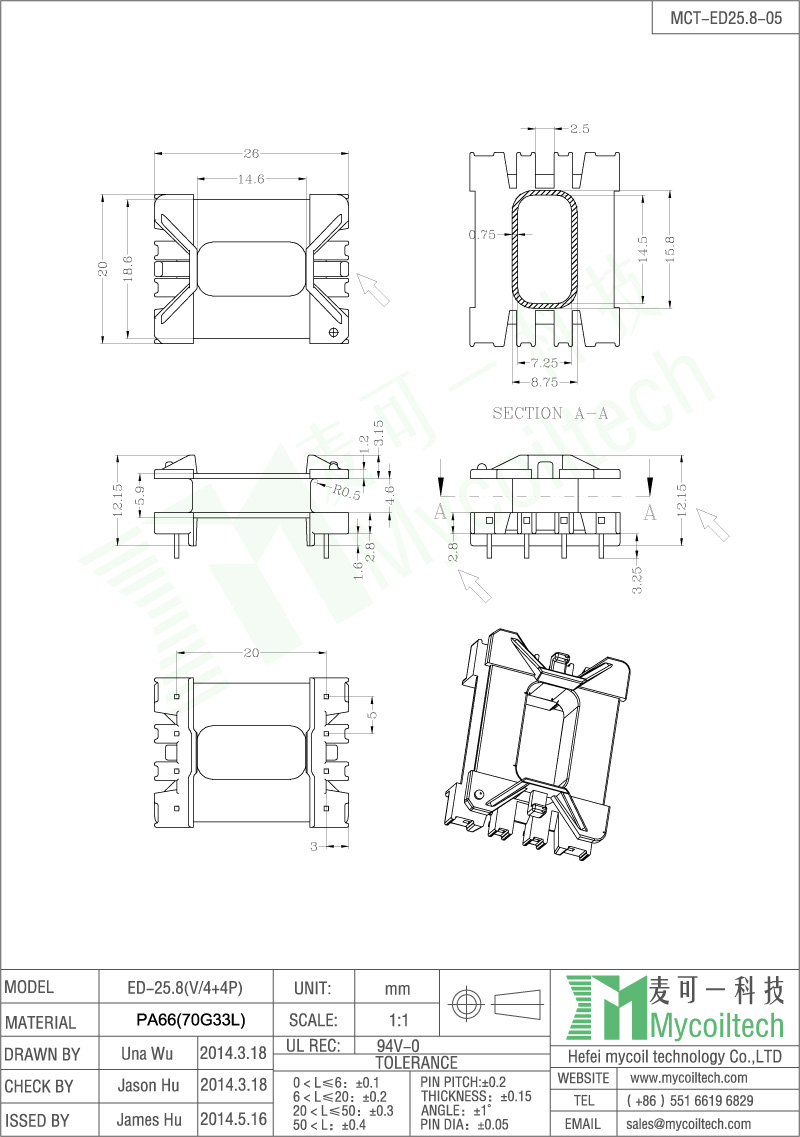

ED25.8 high frequency transformer bobbin. Parallel Distance=20mm. Pin pitch=5mm. Size=26mmX20mmX12.15mm. Vertical type 4+4 pins coil former. PA66(70G33L) material bobbin. DIP type coil former. Accept make bobbin tooling.
brand:
MCTitem no.:
MCT-ED25.8-05(V4+4P)shipping port:
ShanghaiCompetitive price ED25.8 vertical transformer bobbin factory, the materials we used are RoHS compliant. We have quality control department, our engineering and technical personnel can quickly respond to make drawings and samples, custom design also acceptable.
Quick Details
|
Part No: MCT-ED25.8-05(V4+4P) |
Brand Name: MCT |
|
Material: PA66 |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: ED25.8 Power Supply Transformer Bobbin 8Pin Vertical Bobbin
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Advantages: Professional transformer winding bobbin factory, complete specifications.
Our Factory is made up of 500 people, huge output can be finished every day.
All materials are environmental protected. We accept custom made and design service.
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
Product Specification
SMD ED8 Transformer Bobbin Double Slots Horizontal Coil Former 3+3 Pin
Double slots ED8 transformer bobbin. 3+3 pins horizontal bobbin. ED8 SMD coil former. Parallel Distance=8.65mm. Pin pitch=2.5mm. Bobbin Size=8.65mmX7.4mmX6mm. LCP-E4008 material bobbin. Accept make bobbin tooling.
Double Slots ED25.8 High Frequency Transformer Bobbin
Double slots ED25.8 coil bobbin. Parallel Distance=20.48mm. Pin pitch=5mm. Bobbin Size=26mmX20mmX12.95mm. PA66(FR50) material bobbin. DIP type coil former. Accept make bobbin tooling.
ED25.8 Vertical Transformer Bobbin 4+4 Pins Winding Bobbin
ED25.8 4+4 pins coil bobbin. Parallel Distance=20mm. Pin pitch=5mm. Bobbin Size=26mmX20mmX12.95mm. Vertical ED25.8 bobbin made of PA66 material. DIP type coil former. Accept make bobbin tooling.
ED25.8 Vertical Transformer Bakelite Bobbin Pin 4+4
ED25.8 vertical type transformer bobbin. Parallel Distance=20mm. Pin pitch=5mm. Bobbin Size=26.5mmX21.6mmX13.9mm. PA66(FR50) material bobbin. DIP type coil former. Accept make bobbin tooling.
Vertical ED25.8 4+4 Pin Transformer Bobbin DIP Bobbin
ED25.8 8pin transformer bobbin. Vertical type coil former. Parallel Distance=20mm. Pin pitch=5mm. Size=26.5mmX21.6mmX13.9mm. PA66(FR50) material bobbin. DIP type coil former. Accept make bobbin tooling.
