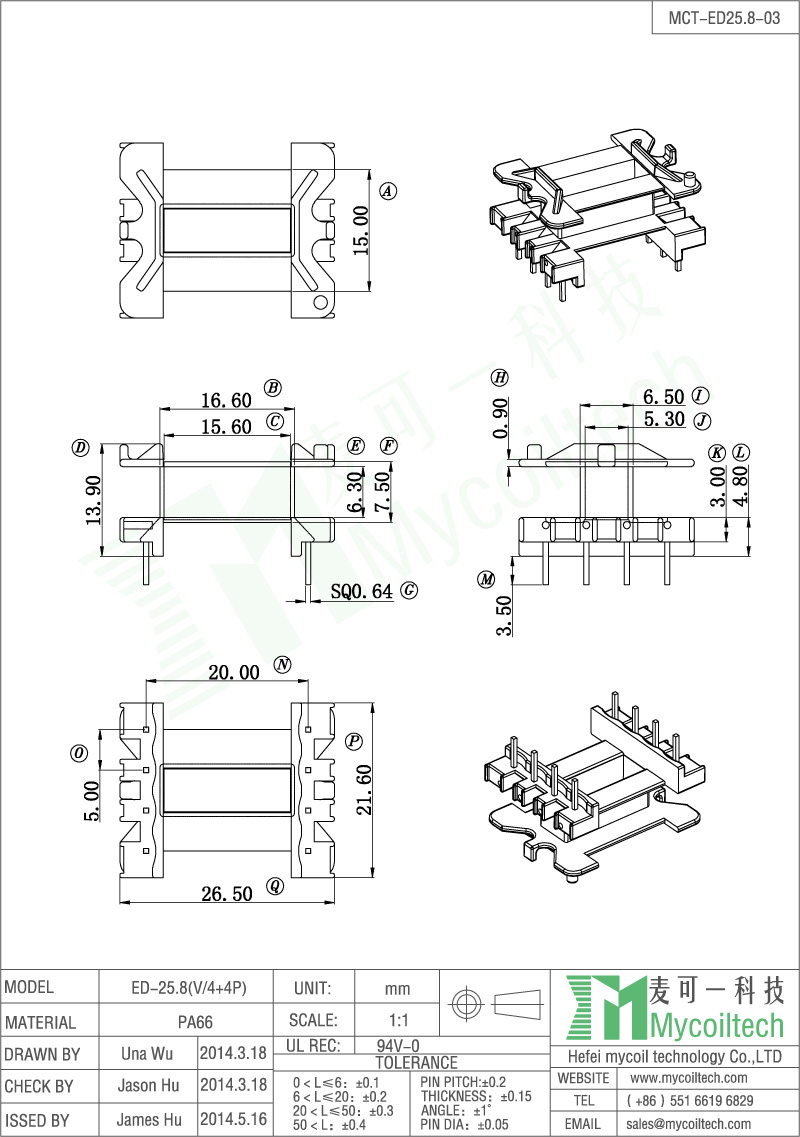

ED25.8 vertical type transformer bobbin. Parallel Distance=20mm. Pin pitch=5mm. Bobbin Size=26.5mmX21.6mmX13.9mm. PA66(FR50) material bobbin. DIP type coil former. Accept make bobbin tooling.
brand:
MCTitem no.:
MCT-ED25.8-03(V4+4P)shipping port:
ShanghaiElectronic transformer bobbin factory Hefei Mycoil Technology Co., LTD. We design various SMD/DIP transformer bobbins, high quality 4+4 pin ED25.8 vertical transformer bobbin, custom design also acceptable. If you have any requirements, welcome to contact us.
Quick Details
|
Part No: MCT-ED25.8-03(V4+4P) |
Brand Name: MCT |
|
Material: PA66 |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: ED25.8 Vertical Transformer Bakelite Bobbin Pin 4+4
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Advantages: Professional transformer winding bobbin factory, complete specifications.
Our Factory is made up of 500 people, huge output can be finished every day.
All materials are environmental protected. We accept custom made and design service.
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
Product Specification
SMD ED8 Transformer Bobbin Double Slots Horizontal Coil Former 3+3 Pin
Double slots ED8 transformer bobbin. 3+3 pins horizontal bobbin. ED8 SMD coil former. Parallel Distance=8.65mm. Pin pitch=2.5mm. Bobbin Size=8.65mmX7.4mmX6mm. LCP-E4008 material bobbin. Accept make bobbin tooling.
Double Slots ED25.8 High Frequency Transformer Bobbin
Double slots ED25.8 coil bobbin. Parallel Distance=20.48mm. Pin pitch=5mm. Bobbin Size=26mmX20mmX12.95mm. PA66(FR50) material bobbin. DIP type coil former. Accept make bobbin tooling.
ED25.8 Vertical Transformer Bobbin 4+4 Pins Winding Bobbin
ED25.8 4+4 pins coil bobbin. Parallel Distance=20mm. Pin pitch=5mm. Bobbin Size=26mmX20mmX12.95mm. Vertical ED25.8 bobbin made of PA66 material. DIP type coil former. Accept make bobbin tooling.
Vertical ED25.8 4+4 Pin Transformer Bobbin DIP Bobbin
ED25.8 8pin transformer bobbin. Vertical type coil former. Parallel Distance=20mm. Pin pitch=5mm. Size=26.5mmX21.6mmX13.9mm. PA66(FR50) material bobbin. DIP type coil former. Accept make bobbin tooling.
ED25.8 Power Supply Transformer Bobbin 8Pin Vertical Bobbin
ED25.8 high frequency transformer bobbin. Parallel Distance=20mm. Pin pitch=5mm. Size=26mmX20mmX12.15mm. Vertical type 4+4 pins coil former. PA66(70G33L) material bobbin. DIP type coil former. Accept make bobbin tooling.
Switch Mode Transformer EF20 Coil Bobbin 4+4 Pins
EF20 power encapsulated transformer. Horizontal type 4+4 pins. Bobbin Size=20.8mmX20.7mmX14.5mm. Pin pitch=5.0mm. Parallel Distance=15.0mm. EF20 transformer DIP bobbin. We can make new tooling to meet customer's design.
ER28 Transformer Bobbin Horizontal Coil Former 6+6 Pin
5+5 pins ER28 horizontal transformer bobbin. Single slot ER28 transformer bobbin. Bobbin Size=29mmX28mmX23.8mm. Pin Pitch=5mm. Parallel distance=25mm. Phenolic material bobbin. We can make bobbin tooling. DIP bobbin. UL REC:94V-0
High Frequency ETD49 SUS 301 Bobbin Clip
Flyback transformer ETD49 clip. We supply ETD49 horizontal/vertical bobbins and design ETD49 transformers. Size=49.8mmX29.7mmX16.0mm. ETD49 SUS301 matrial for power transformer, mainly used in inverters, medicial supplies, power supply,amplifier,electrical equipments,LED drive supply, etc.
EFD25 Horizontal High Frequency Transformer Bobbin L Pin
EFD25 L pin transformer bobbin. EFD25 horizontal transformer bobbin. Pin pitch1=5mm. Pin pitch2=3.5mm. Parallel distance=35mm. Bobbin Size=52mmX25.5mmX15.5mm. Phenolic material transformer bobbin. UL REC:94V-0.
16+16 Pins Horizontal ETD34 Transformer
ETD34 main transformer, 16+16 pins horizontal ETD34 bobbin. Parallel Distance=25.4mm. Pin pitch=2.54mm.Bobbin Size=41.8mmX38.6mmX30.04mm. ETD34 core transformer with high magnetic flux and low loss magnetic materials, mainly used in PCB circuits, computers, monitors, printer, scanner, duplicator, mobile adapters, other equipment and instruments.
EE130 High Power Transformer No Pin Bobbin
Magnetic core EE130/40 bobbin. Supply matched ferrite cores. Bobbin Size=79.5mmX79.5mmX95.0mm. We are China transformer bobbin factory, we make bobbin tooling to meet special size bobbin requirememnts.
EI12.5 PCB Mounting Transformer Bobbin
EI12.5 ferrite core bobbin, 5+5 pins EI12.5 coil former. Bobbin size=12.6mmX12.2mmX8.7mm, Parallel distance=7.5mm. Bobbin pin pitch=2.5mm. We produce various transformer bobbins and supply magnetic cores, we accept make new tooling to meet special size requirements.
