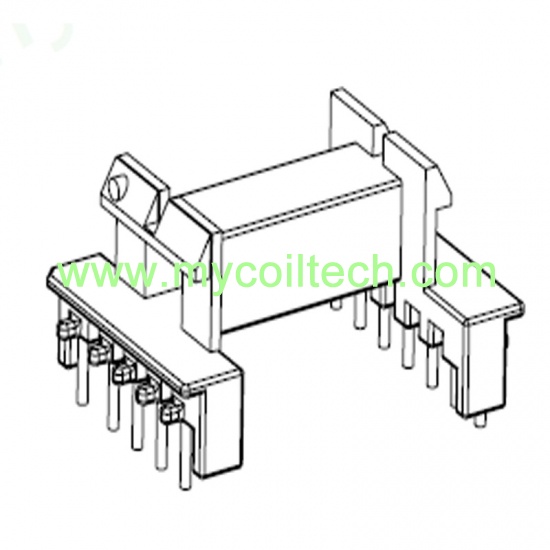

5+7 pins EEL19 electronic transformer bobbin. Horizontal type DIP bobbin. Pin pitch1=3.5mm. Pin pitch2=4.5mm. We can make bobbin tooling. Bobbin Size=30mmX27.8mmX15.6mm. UL REC:94V-0
brand:
MCTitem no.:
MCT-EEL1901(H5+7P)shipping port:
ShanghaiWe are professional electronic components manufacture, if you need customized EEL19 transformer bobbin, 5+7 pin horizontal coil bobbin, you can send us the electrical parameters or specification, we can design for you and provide samples for the testing.
Quick Details
|
Part Number: MCT-EEL1901(H5+7P) |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: EEL19 High Frequency Horizontal Transformer Bobbin 5+7 Pin
Product Range: Transformers, inductors, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Advantages: Professional transformer winding bobbin factory, complete specifications.
Our Factory is made up of 500 people, huge output can be finished every day.
All materials are environmental protected. We accept custom made and design service.
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
