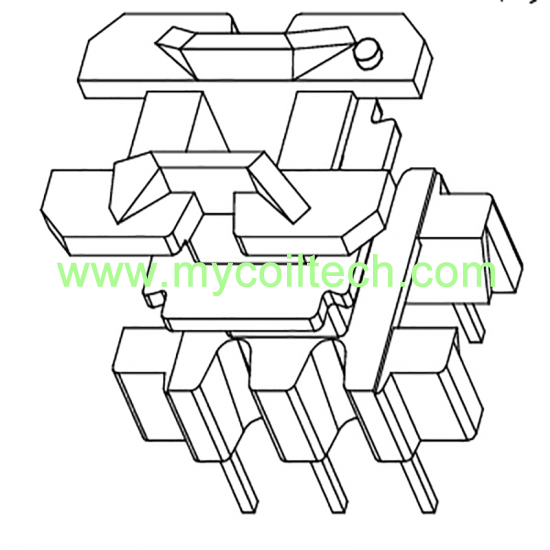

EF12.6 Internet of Things Device Vertical Transformer Bobbin 3+3 Pins

EF12.6 Smart Door Lock Transformer bobbin，3+3 pins EFD12.6 vertical bobbin，EF212.6 coil former size=14.2mmX10.0X14mm.The low water absorption rate of PBT material is a key advantage for its compatibility with transformer frames. After absorbing moisture, its impact on electrical performance is minimal. Even in complex environments such as humidity and fog, it can still stably maintain a high insulation voltage. When a transformer is in operation, it needs to withstand the effect of an electric field for a long time. The reliable insulation performance of PBT can effectively isolate the current conduction between the coil and the external structure, fundamentally avoiding safety faults such as leakage and short circuit caused by insulation failure, and providing a core guarantee for stable operation under different working conditions (such as outdoor power distribution and small transformers in industrial equipment).

product origin:
China
brand:
MCT
item no.:
MCT-EF12.6-13

contact now

product description

EF12.6 Switching motor power supply module Transformer bobbin, After pure PBT is reinforced with glass fiber, the heat distortion temperature can be significantly increased to 200°C-215°C, which can easily withstand the heat generated during the operation of the transformer and prevent the softening and deformation of the frame caused by high temperature. Meanwhile, the enhanced PBT features high strength and rigidity, capable of withstanding the pressure during coil winding and minor impacts during equipment operation, ensuring the regularity of the internal structure. In addition, PBT has good resistance to weak acids, weak bases, common solvents, etc. It can cope with the possible chemical environment around the transformer, reduce the erosion of the frame by environmental factors, and further extend its service life.

Production Specification
