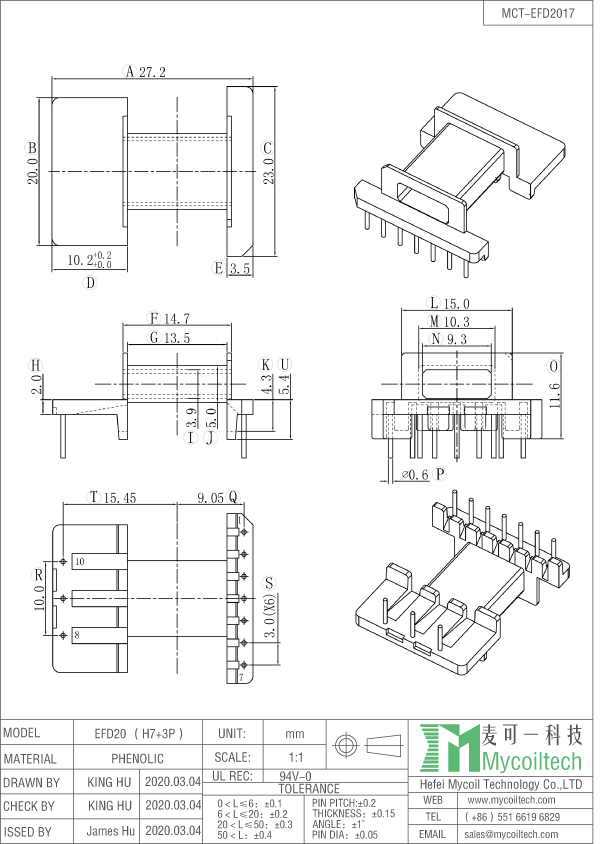

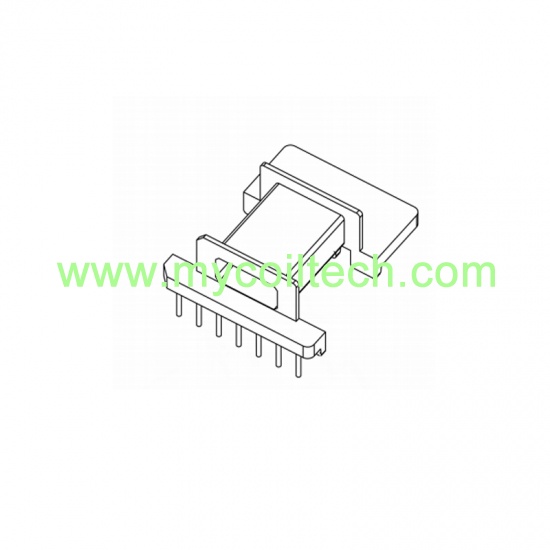

EFD20 High Frequency Transformer 7+3 Pins Bobbin

2+2Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch2=6.2mm, Size=12.5mmX10.5mmX4.1mm

Customized EFD25 transformer, 5+7 pins EFD25 bobbin single slot coil former. Row distance=35.0mm. Pin pitch=5.0mm. Pin pitch2=3.5mm, Bobbin Size=42.0mmX25.5mmX13.5mm. EFD25 high frequency transformers widely used in electrical equipments, DC converters, medical equipments, communication equipments, power supplies, vehicle electronic equipments.

2+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch1=2.5mm Pin Pitch2=9mm Parallel Distance=12.3mm

EFD30 ferrite cores, 5+7 pins L pin EFD30 horizontal transformer. Parallel Distance=43.8mm. Pin distance=5.0mm. Bobbin Size=55.0mmX30.3mmX13.5mm. EFD30 LED drive transformer accept customzied. We make EFD30 tooling to meet special size.

5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=17mm Size=14.8mmX14.8mmX7.4mm

EFD15 pcb mounting transformer bobbin. 4+4 pins EFD15 coil bobbin. Bobbin size=16.2mmX15.0mmX8.2mm. Pin Pitch=3.8mm. Parallel distance=13.7mm. Phenolic material EFD15 transformer bobbin. Welcome customized EFD15 transformer.

4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=3.75mm, Parallel Distance=13.8mm Size=16.4mmX15mmX8.3mm

5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=14.6mm Size=17mmX15mmX9.6mm

EFD15 ferrite core, 5+5 Pins horizontal transformer bobbin, pin pitch=2.5mm, Parallel Distance=14.6mm, Bobbin Size=17mmX15mmX8.5mm. We manufacture final EFD15 transformer.

4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=8mm Size=3.75mmX13.7mmX8.4mm

5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=17.6mm Size=20.3mmX15mmX10mm

4+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=17.6mm Size=20.3mmX15mmX10mm
