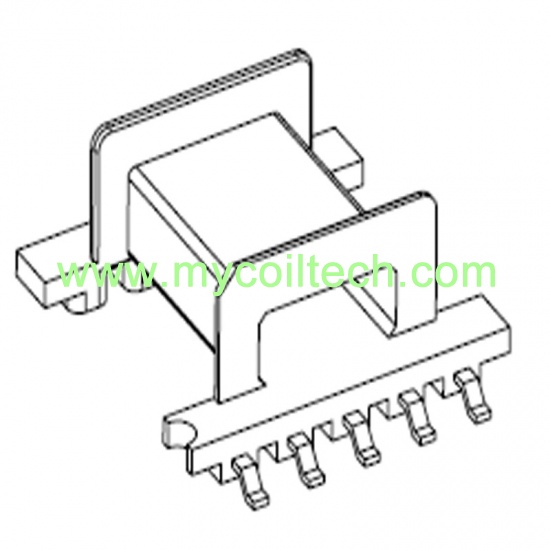

EFD20 High Voltage Transformer Bobbin SMD Bobbin 5+5 Pin

EFD20 transformer bobbin 5+5 pin. SMD horizontal transformer bobbin. Pin Pitch=3.76mm. Parallel distance=20.1mm. Size=25.1mmX21.5mmX9.6mm. Bobbin material: phenolic. Customized designs are accepted.

brand:
MCT
item no.:
MCT-SMD-EFD2003(H5+5P)
shipping port:
Shanghai

contact now

product description

High quality EFD20 single slot bobbin, SMD type horizontal bobbin, we can provide 5 free samples and make new bobbin tooling as your requirements. OEM/ODM also accepted.

Quick Details

Part No: MCT-SMD-EFD2003(H5+5P)	Brand Name: MCT
Material: Phenolic	Color: Black
UL REC: 94V-0	Logo: Can be customized
Lead Time: 20 days after payment	Custom Made: Available
Certification: ISO9001,ROHS,CE	Packing: Carton, accept customize
OEM: Available	MOQ: Any quantity

Part Information

Product Name: EFD20 High Voltage Transformer Bobbin SMD Bobbin 5+5 Pin

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.

Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

Product Specification

Single slot bobbin EFD20 SMD coil former
