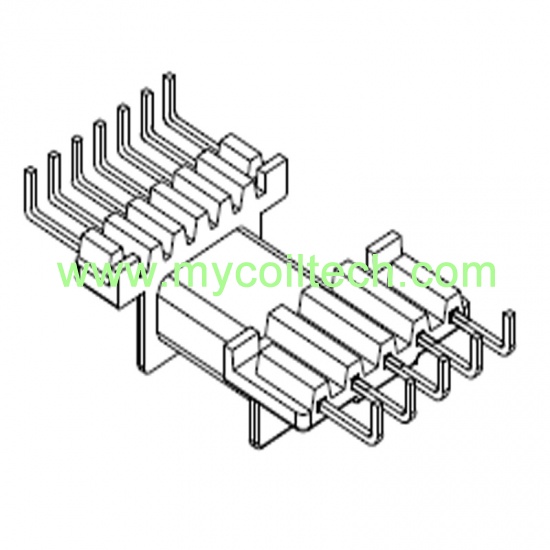

EFD25 horizontal transformer bobbin. EFD25 5+7 pin bobbin seagull feet. Pin pitch1=5mm. Pin pitch2=3.5mm. L pin transformer bobbin. Bobbin Size=35mmX25.5mmX13.5mm. We can make bobbin tooling. UL REC:94V-0.
brand:
MCTitem no.:
MCT-EFD2518shipping port:
Shanghai2018 popular EFD25 seagull feet transformer bobbin, horizontal type with 5+7 pins, factory price and best quality, any requests, welcome to contact us.
Quick Details
|
Part No: MCT-EFD2518 |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: EFD25 5+7 Pin Ferrite Core Bobbin For SMPS Transformer
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Advantages: Professional transformer winding bobbin factory, complete specifications.
Our Factory is made up of 500 people, huge output can be finished every day.
All materials are environmental protected. We accept custom made and design service.
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
Product Specification
EFD10 Electronic Transformer Bobbin, 2+2 Pin Horizontal Bobbin
2+2Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch2=6.2mm, Size=12.5mmX10.5mmX4.1mm
EFD25 Power Supply Transformer 5+7 Pins Bobbin
Customized EFD25 transformer, 5+7 pins EFD25 bobbin single slot coil former. Row distance=35.0mm. Pin pitch=5.0mm. Pin pitch2=3.5mm, Bobbin Size=42.0mmX25.5mmX13.5mm. EFD25 high frequency transformers widely used in electrical equipments, DC converters, medical equipments, communication equipments, power supplies, vehicle electronic equipments.
2+5 Pins EFD12 Phenolic Bobbin
2+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch1=2.5mm Pin Pitch2=9mm Parallel Distance=12.3mm
EFD30 High Voltage Transformer Frame
EFD30 ferrite cores, 5+7 pins L pin EFD30 horizontal transformer. Parallel Distance=43.8mm. Pin distance=5.0mm. Bobbin Size=55.0mmX30.3mmX13.5mm. EFD30 LED drive transformer accept customzied. We make EFD30 tooling to meet special size.
Horizontal Bobbin EFD15 Transformer Bobbin With 5+5 Pins
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=17mm Size=14.8mmX14.8mmX7.4mm
