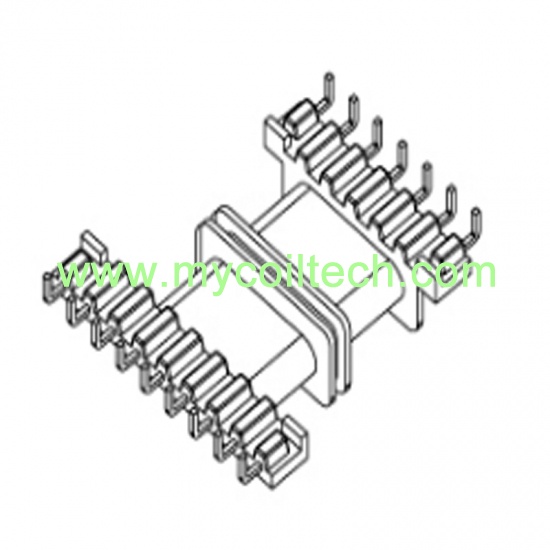

Newly developed EFD40 horizontal transformer bobbin with 7+9 pins for customers. Bobbin size=45.00mmX44.30X13.20mm. Pin distance=5.00mm. We can customize products for customers, including bobbins, covers, clips, cores, and more. At the same time, we can manufacture finished transformers that can be applied to industrial automation, communication equipment, military equipment, and other fields. If you have any needs, you can contact us.
product origin:
Chinabrand:
MCTitem no.:
MCT-EFD4009 & MCT-EFD4009-1MOQ:
5000The EFD40 multi slot high frequency transformer frame is suitable for various industries, such as industrial UPS power supplies and servo motor drivers. The multi slot design can isolate windings of different voltage levels (such as 380V input to 24V control power supply), meeting safety insulation requirements. Switching power adapter: such as fast charging for laptops and mobile phones (65W+GaN charger), which uses high frequency characteristics to reduce size, and supports multiple outputs (such as 5V/9V/12V) with a multi slot structure. It has many advantages, such as increasing the heat dissipation area of the skeleton with a multi slot structure, and using phenolic materials (heat resistant up to 150 ℃+) to adapt to high temperature environments.Of course, if you have any questions, please feel free to contact us at any time.
Production Specification

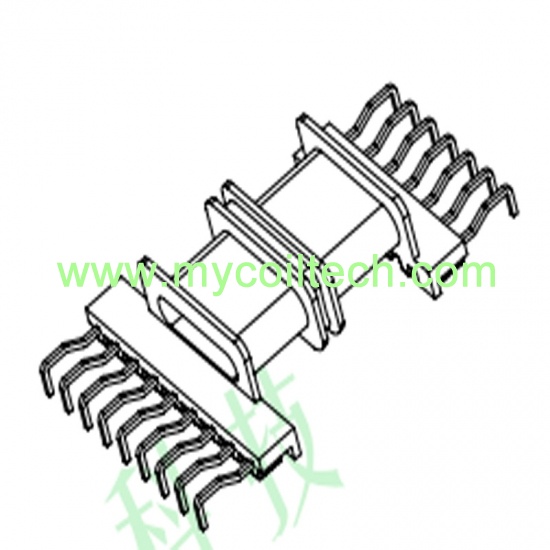

We also supply EFD40 multi sections bobbins, welcome customized bobbin.
EFD10 Electronic Transformer Bobbin, 2+2 Pin Horizontal Bobbin
2+2Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch2=6.2mm, Size=12.5mmX10.5mmX4.1mm
EFD25 Power Supply Transformer 5+7 Pins Bobbin
Customized EFD25 transformer, 5+7 pins EFD25 bobbin single slot coil former. Row distance=35.0mm. Pin pitch=5.0mm. Pin pitch2=3.5mm, Bobbin Size=42.0mmX25.5mmX13.5mm. EFD25 high frequency transformers widely used in electrical equipments, DC converters, medical equipments, communication equipments, power supplies, vehicle electronic equipments.
2+5 Pins EFD12 Phenolic Bobbin
2+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch1=2.5mm Pin Pitch2=9mm Parallel Distance=12.3mm
EFD30 High Voltage Transformer Frame
EFD30 ferrite cores, 5+7 pins L pin EFD30 horizontal transformer. Parallel Distance=43.8mm. Pin distance=5.0mm. Bobbin Size=55.0mmX30.3mmX13.5mm. EFD30 LED drive transformer accept customzied. We make EFD30 tooling to meet special size.
Horizontal Bobbin EFD15 Transformer Bobbin With 5+5 Pins
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=17mm Size=14.8mmX14.8mmX7.4mm
