Power EI Encapsulated Transformer Output Power Range from 17.0VA to 35.0VA

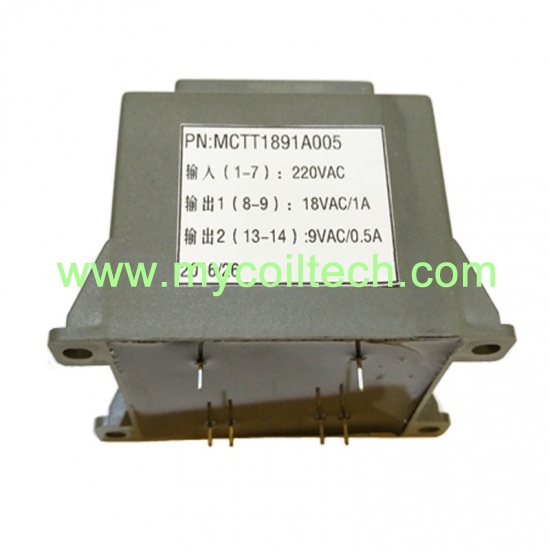

EI Customized Electric Encapsulated Transformer Output Power 35.0VA

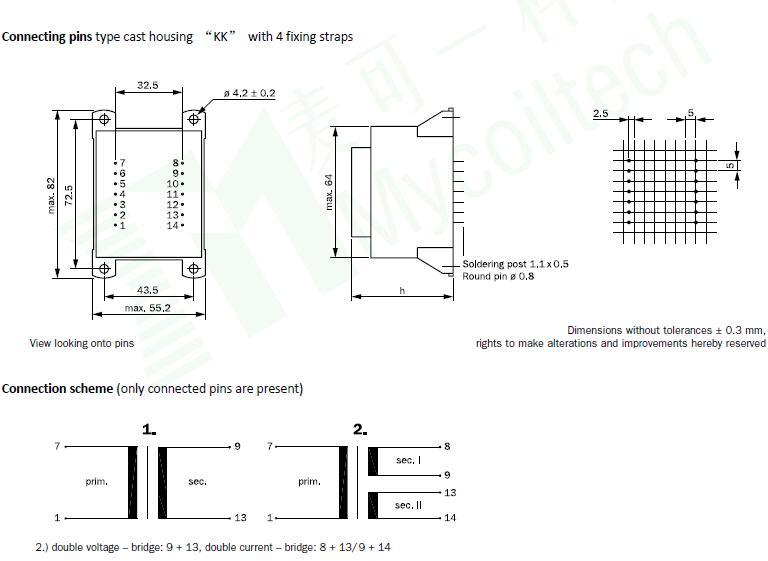

EI60 Printed-Circuit-Board Encapsulated Transformers Output Power: 17.0 VA – 35.0 VA. Low frequency encapsulated transformer. Standard type cast housing “KK”. Excellent temperature fluctuation resistance properties. High electrical safety and long service-life features.  Self-extinguishing cast housing and sealing material. Per item tested quality with certificate.

  • brand:

    MCT

  • item no.:

    EI60 17.0 VA – 35.0 VA

  • shipping port:

    Shanghai
contact now
product description

Factory direct selling EI electronic encapsulated transformers, best quality and competitive price. Any requests, contact us now! Customized specifications and OEM service are accepted.


Quick Details

Part No: EI60 17.0 VA – 35.0 VA

Brand name: MCT

Output Power up to 35.0 VA

Custom made: Available

Temperature class ta70 °C/B

Logo: Can be customized

High voltage resistance

Packing: Carton, can custom

Bobbin: Dual chamber windings

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available

Lead time: 25 days after payment

Shipping: Air, Ship, etc



Part Information

Product Name:  EI Customized Electric Encapsulated Transformer Output Power 35.0VA

Product Range: Transformers, Inductors, Choke coils, Transformer bobbins, Magnetic cores.

Applications: Household appliances, printed circuit boards, low power industrial control products, meters and other industries.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.



Product Specification

Encapsulated Transformer and Electric Power Output TransformerEI Encapsulated Transformer with Low Frequency and Low ProfilePower transformer and encapsulated transformer factory MCT


Product Part Number

Frame size/Core height

Output Power

Ta 70°C/B

Height(h)

Weight

Packaging unit

MCT EI 600/16.0 mm*

17.0V/A

40.5±0.5mm

0.450kg

18pieces

MCT EI 601/21.0mm

20.0 V/A

44.7±0.5mm

0.600kg

18pieces

MCT EI 602/25.5mm

28.0V/A

49.2±0.5mm

0.700kg

18pieces

MCT EI 603/30.5mm

30.0 V/A

54.2±0.5mm

0.800kg

18pieces

MCT EI 604/35.0mm

35.0V/A

57.3±0.5mm

0.900kg

18pieces


17.0 VA ta 70 °C. Frame size/Core height:  MCT EI 600 /16.0mm. No short-circuit proof.

Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT EI 600 1050

230

1-7

1×6

2834

9-13

1×7.4

1

MCT EI 600 1051

230

1-7

2×6

1417

8-9/13-14

2×7.4

2

MCT EI 600 1052

230

1-7

1×7.5

2267

9-13

1×9.3

1

MCT EI 600 1053

230

1-7

2×7.5

1134

8-9/13-14

2×9.3

2

MCT EI 600 1054

230

1-7

1×9

1889

9-13

1×11.1

1

MCT E I600 1055

230

1-7

2×9

945

8-9/13-14

2×11.1

2

MCT EI 600 1056

230

1-7

1×12

1417

9-13

1×15.2

1

MCT EI 600 1057

230

1-7

2×12

708

8-9/13-14

2×15.2

2

MCT EI 600 1058

230

1-7

1×15

1134

9-13

1×18.2

1

MCT EI 600 1065

230

1-7

2×15

567

8-9/13-14

2×18.7

2

MCT EI 600 1072

230

1-7

1×18

944

9-13

1×21.9

1

MCT EI 600 1061

230

1-7

2×18

472

8-9/13-14

2×21.9

2

MCT EI 600 1062

230

1-7

1×24

708

9-13

1×28.9

1


20.0 VA ta 70 °C. Frame size/Core height:  MCT EI 601 /21.0mm. No short-circuit proof.

Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT EI 601 1069

230

1-7

1×6

3334

9-13

1×7.0

1

MCT EI 601 1070

230

1-7

2×6

1667

8-9/13-14

2×7.0

2

MCT EI 601 1074

230

1-7

1×7.5

2667

9-13

1×8.8

1

MCT EI 601 1059

230

1-7

2×7.5

1334

8-9/13-14

2×8.8

2

MCT EI 601 1060

230

1-7

1×9

2223

9-13

1×10.5

1

MCT EI 601 1042

230

1-7

2×9

1111

8-9/13-14

2×10.5

2

MCT EI 601 1046

230

1-7

1×12

1667

9-13

1×14.2

1

MCT EI 601 1043

230

1-7

2×12

834

8-9/13-14

2×14.2

2

MCT EI 601 1064

230

1-7

1×15

1334

9-13

1×17.0

1

MCT EI 601 1044

230

1-7

2×15

667

8-9/13-14

2×17.0

2

MCT EI 601 1066

230

1-7

1×18

1111

9-13

1×20.5

1

MCT EI 601 1068

230

1-7

2×18

556

8-9/13-14

2×20.5

2

MCT EI 601 1067

230

1-7

1×24

834

9-13

1×27.6

1


28.0 VA ta 70 °C. Frame size/Core height:  MCT EI 602 /25.5mm. No short-circuit proof.

Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT EI 602 1011

230

1-7

1×6

4667

9-13

1×7.1

1

MCT EI 602 1018

230

1-7

2×6

2334

8-9/13-14

2×7.1

2

MCT EI 602 1012

230

1-7

1×7.5

3734

9-13

1×8.8

1

MCT EI 602 1019

230

1-7

2×7.5

1867

8-9/13-14

2×8.8

2

MCT EI 602 1013

230

1-7

1×9

3111

9-13

1×10.6

1

MCT EI 602 1020

230

1-7

2×9

1556

8-9/13-14

2×10.6

2

MCT EI 602 1014

230

1-7

1×12

2334

9-13

1×14.4

1

MCT EI 602 1021

230

1-7

2×12

1167

8-9/13-14

2×14.4

2

MCT EI 602 1015

230

1-7

1×15

1867

9-13

1×17.8

1

MCT EI 602 1022

230

1-7

2×15

934

8-9/13-14

2×17.8

2

MCT EI 602 1016

230

1-7

1×18

1556

9-13

1×20.5

1

MCT EI 602 1076

230

1-7

2×18

778

8-9/13-14

2×20.5

2

MCT EI 602 1017

230

1-7

1×24

1167

9-13

1×27.4

1


30.0 VA ta 70 °C. Frame size/Core height:  MCT EI 603 /30.5mm. No short-circuit proof.

Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT EI 603 1023

230

1-7

1×6

5000

9-13

1×7.0

1

MCT EI 603 1030

230

1-7

2×6

2500

8-9/13-14

2×7.0

2

MCT EI 603 1024

230

1-7

1×7.5

4000

9-13

1×8.7

1

MCT EI 603 1031

230

1-7

2×7.5

2000

8-9/13-14

2×8.7

2

MCT EI 603 1025

230

1-7

1×9

3334

9-13

1×10.2

1

MCT EI 603 1032

230

1-7

2×9

1667

8-9/13-14

2×10.2

2

MCT EI 603 1026

230

1-7

1×12

2500

9-13

1×13.7

1

MCT EI 603 1034

230

1-7

2×12

1250

8-9/13-14

2×13.7

2

MCT EI 603 1027

230

1-7

1×15

2000

9-13

1×16.8

1

MCT EI 603 1035

230

1-7

2×15

1000

8-9/13-14

2×16.8

2

MCT EI 603 1028

230

1-7

1×18

1667

9-13

1×20.3

1

MCT EI 603 1080

230

1-7

2×18

834

8-9/13-14

2×20.3

2

MCT EI 603 1029

230

1-7

1×24

1250

9-13

1×27.0

1


35.0 VA ta 70 °C. Frame size/Core height:  MCT EI 604 /35.0mm. No short-circuit proof.

Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT EI 604 1082

230

1-7

1×6

5834

9-13

1×7.0

1

MCT EI 604 1083

230

1-7

2×6

2917

8-9/13-14

2×7.0

2

MCT EI 604 1084

230

1-7

1×7.5

4667

9-13

1×8.7

1

MCT EI 604 1085

230

1-7

2×7.5

2334

8-9/13-14

2×8.7

2

MCT EI 604 1086

230

1-7

1×9

3889

9-13

1×10.3

1

MCT EI 604 1087

230

1-7

2×9

1994

8-9/13-14

2×10.3

2

MCT EI 604 1088

230

1-7

1×12

2917

9-13

1×13.9

1

MCT EI 604 1089

230

1-7

2×12

1458

8-9/13-14

2×13.9

2

MCT EI 604 1090

230

1-7

1×15

2334

9-13

1×17.1

1

MCT EI 604 1091

230

1-7

2×15

1167

8-9/13-14

2×17.1

2

MCT EI 604 1092

230

1-7

1×18

1994

9-13

1×20.3

1

MCT EI 604 1093

230

1-7

2×18

972

8-9/13-14

2×20.3

2

MCT EI 604 1094

230

1-7

1×24

1458

9-13

1×26.9

1


If you have any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

TEL: +86 551 6619 6829
