EI19 Ferrite Core Bobbin Vertical Transformer Bobbin With Pin 3+3

Transformer bobbin factory. EI19 vertical transformer bobbin 3+3 pin. Bobbin Size=15mmX13.6mmX14.9mm. Parallel Distance=11.5mm. Pin Pitch=4.8mm. PA66 material bobbin. DIP transformer bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.

brand:
MCT
item no.:
MCT-EI1916
shipping port:
Shanghai

contact now

product description

High quality and competitive electronic components. Customized high frequency transformers, filter inductors, transformer bobbins(coil former), any requests, welcome to contact us.

Quick Details

Part Number: MCT-EI1916	Brand Name: MCT
Material: Phenolic	Color: Black
UL REC: 94V-0	Logo: Can be customized
Lead Time: 20 days after payment	Custom Made: Available
Certification: ISO9001,ROHS,CE	Packing: Carton, accept customize
OEM: Available	MOQ: Any quantity

Part Information

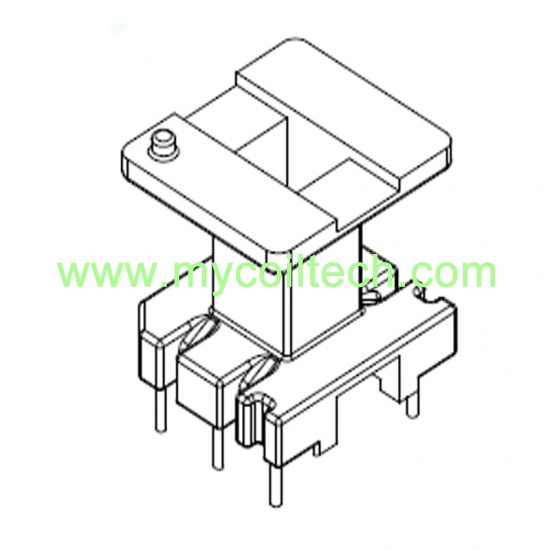

Product Name: EI19 Ferrite Core Bobbin Vertical Transformer Bobbin With Pin 3+3

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.

Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily

Product Specification

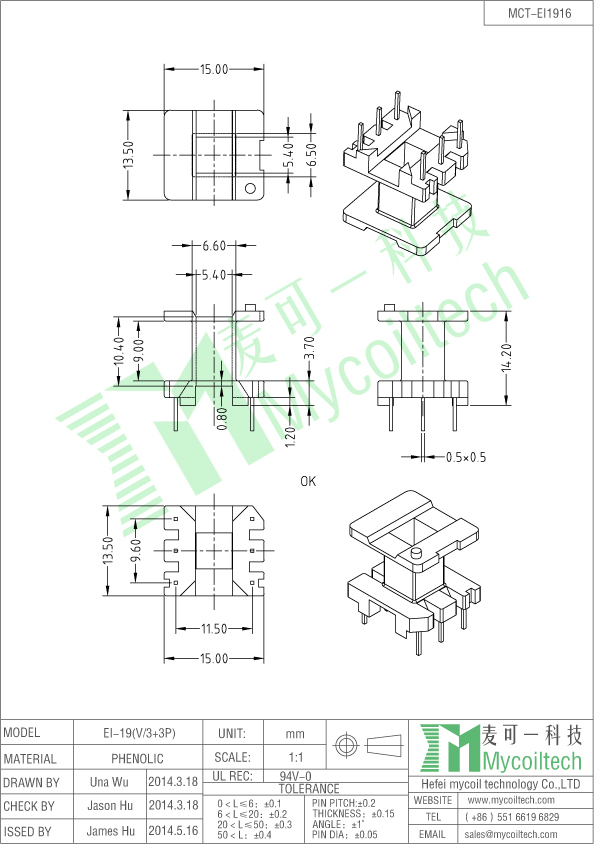

3+3 pin vertical transformer bobbin
