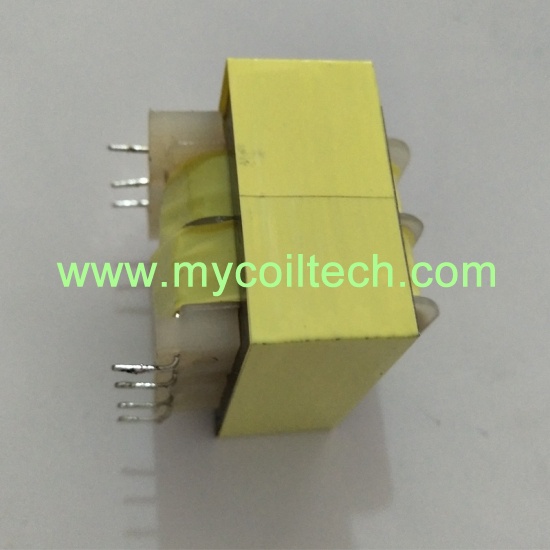

Split bobbin laminated transformer EI41 6VA. EI low frequency power transformers are widely used in small type electronic appliances,such as air-conditioner, VCD,UPS power supply, etc. No crossover between primary/secondary winding leads. Vacuum impregnated - withstands board washing.
brand:
MCTitem no.:
EI41 Laminated transformers 6.0VA Seriesshipping port:
ShanghaiWe produce and design various low frequency transformers, EI41 laminated transformer 6.0VA series, our engineers are very good at designing the transformer products according to customer's need., if you need samples for testing, we can provide for you.
Quick Details
Part No: EI41 Laminated transformers 6.0VA Series |
Brand name: MCT |
High (2500V) isolation; 2500VRMS HIPOT |
Custom made: Available |
Non-concentric design - eliminates ESS |
Logo: Can be customized |
High insulation performance |
Packing: Carton,can custom |
Available in single or dual primary |
OEM: Available |
Certification: ISO9001,ROHS,CE |
Shipping: Air, Ship, etc |
Lead time: 25 days after payment |
MOQ: Any quantity |
Part Information
Product Name: EI41 PCB Mounting Current Voltage Low Frequency Transformer 6.0VA
Product Benefits: No crossover between primary/secondary winding leads, Vacuum impregnated - withstands board washing, Systems and reduces audible noise, Baked resin provides an environmentally-resistant finish.
Applications: air conditioner, VCD, UPS power supply, microwave oven, amplifier, medical treatment, chemical industry and other electronic machine.
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specifications
MCT Part No. 115V-6Pin |
MCT Part No. 115V/230V-8Pin |
Secondary RMS Rating |
|
Series |
Parallel |
||
MCT-ST3-10B1 |
MCT-DST3-10B1 |
10V C.T. @ 0.25A |
5V @ 0.5A |
MCT-ST3-12B5 |
MCT-DST3-12B5 |
12.6V C.T. @ 0.2A |
6.3V @ 0.4A |
MCT-ST3-16B9 |
MCT-DST3-16B9 |
16V C.T.@ 0.15A |
8V @ 0.3A |
MCT-ST3-20B13 |
MCT-DST3-20B13 |
20V C.T. @ 0.12A |
10V @ 0.24A |
MCT-ST3-24B17 |
MCT-DST3-24B17 |
24V C.T. @ 0.1A |
12V @ 0.2A |
MCT-ST3-28B21 |
MCT-DST3-28B21 |
28V C.T. @ 0.085A |
14V @ 0.17A |
MCT-ST3-36B25 |
MCT-DST3-36B25 |
36V C.T. @ 0.065A |
18V @ 0.13A |
MCT-ST3-48B29 |
MCT-DST3-48B29 |
48V C.T. @ 0.05A |
24V @ 0.1A |
MCT-ST3-56B33 |
MCT-DST3-56B33 |
56V C.T. @ 0.045A |
28V @ 0.09A |
MCT-ST3-120B37 |
MCT-DST3-120B37 |
120V C.T. @ 0.02A |
60V @ 0.04A |
