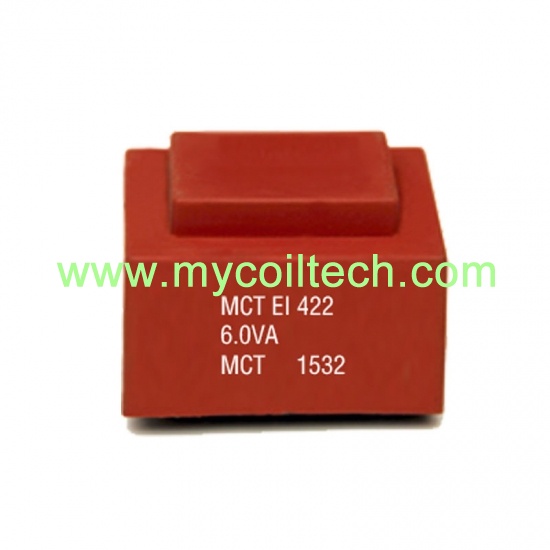

EI42 Encapsulated Electronic Transformer For PCB Mounting Output Power 6.0 VA

EI42 encapsulated electronic transformer with output power 6.0VA. Inherently short-circuit proof, no load power loss. Excellent temperature fluctuation resistance properties. Self-extinguishing cast housing and sealing material. Minimal size available.
  • brand:

    MCT
  • item no.:

    EI42 6.0VA
  • shipping port:

    Shanghai
contact now
product description

If you have new projects and need high quality printed circuit board encapsulated transformers, welcome to contact us! We also can design EI electronic encapsulated transformers as your requirements.


Quick Details

Part No: EI42 6.0VA

Brand name: MCT

Output Power up to 6.0 VA

Custom made: Available

Temperature class ta70 °C/B

Logo: Can be customized

High voltage resistance

Packing: Carton, can custom

Bobbin: Dual chamber windings

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available

Lead time: 25 days after payment

Shipping: Air, Ship, etc


Part Information

Product Name: EI42 Encapsulated Electronic Transformer For PCB Mounting Output Power 6.0 VA

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: Household appliances, printed circuit boards, low power industrial control products, meters and other industries.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.



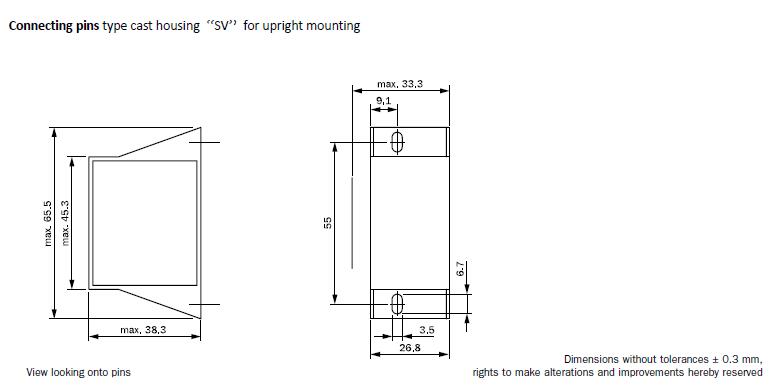

Product Specification

Electronic encapsulated transformer supplier MCTEI42 Encapsulated Transformers with Square BaseCustomized Design EI Series Encapsulated TransformerEI PCB Mount Encapsulated Transformer


Product Part Number

Frame size/Core height

Output Power

Ta 70°C/B

Height(h)

Weight

Packaging unit

MCT EI 422/14.8 mm

6.0V/A

32.3mm

0.200g

40/50 pieces*


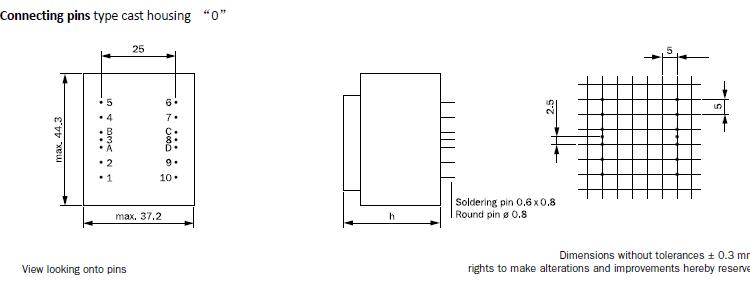

Type cast housing “0”

6.0 VA ta 70 °C. Frame size/Core height:  MCT EI 422 /14.8mm. No short-circuit proof, no load power loss, type.1.3W

Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

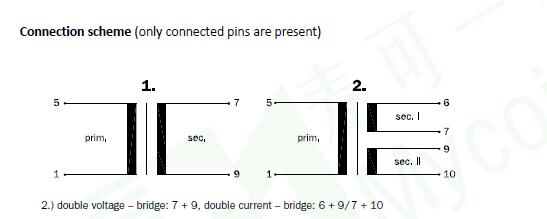

Connection

scheme

MCT EI 422 1320

230

1-5

1×6

1000

7-9

1×8.7

1

MCT EI 422 1298

230

1-5

2×6

500

6-7/9-10

2×8.7

2

MCT EI 422 1303

230

1-5

1×7.5

800

7-9

1×10.9

1

MCT EI 422 1304

230

1-5

2×7.5

400

6-7/9-10

2×10.9

2

MCT EI 422 1285

230

1-5

1×9

667

7-9

1×13.0

1

MCT EI 422 1281

230

1-5

2×9

334

6-7/9-10

2×13.0

2

MCT EI 422 1275

230

1-5

1×12

500

7-9

1×16.7

1

MCT EI 422 1260

230

1-5

2×12

250

6-7/9-10

2×16.7

2

MCT EI 422 1276

230

1-5

1×15

400

7-9

1×20.2

1

MCT EI 422 1305

230

1-5

2×15

200

6-7/9-10

2×20.6

2

MCT EI 422 1289

230

1-5

1×18

334

7-9

1×24.6

1

MCT EI 422 1306

230

1-5

2×18

167

6-7/9-10

2×24.6

2

MCT EI 422 1355

230

1-5

1×21

285

7-9

1×27.1

1

MCT EI 422 1307

230

1-5

1×24

250

7-9

1×30.8

1


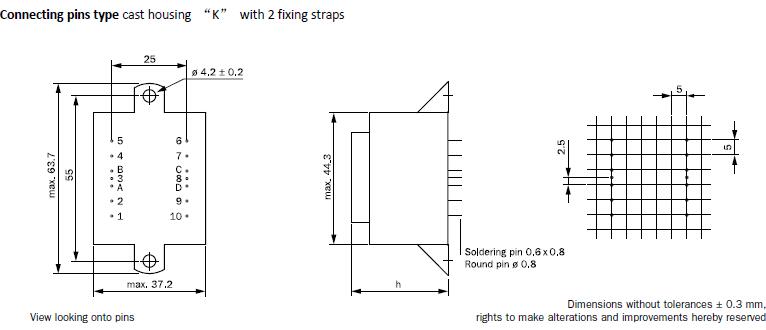

Type cast housing “K”

6.0 VA ta 70 °C. Frame size/Core height:  MCT EI 422 /14.8mm. No short-circuit proof, no load power loss, type.1.3W

Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT EI 422 1218

230

1-5

1×6

1000

7-9

1×8.7

1

MCT EI 422 1219

230

1-5

2×6

500

6-7/9-10

2×8.7

2

MCT EI 422 1220

230

1-5

1×7.5

800

7-9

1×10.9

1

MCT EI 422 1221

230

1-5

2×7.5

400

6-7/9-10

2×10.9

2

MCT EI 422 1222

230

1-5

1×9

667

7-9

1×13.0

1

MCT EI 422 1223

230

1-5

2×9

334

6-7/9-10

2×13.0

2

MCT EI 422 1224

230

1-5

1×12

500

7-9

1×16.7

1

MCT EI 422 1225

230

1-5

2×12

250

6-7/9-10

2×16.7

2

MCT EI 422 1226

230

1-5

1×15

400

7-9

1×20.2

1

MCT EI 422 1227

230

1-5

2×15

200

6-7/9-10

2×20.6

2

MCT EI 422 1228

230

1-5

1×18

334

7-9

1×24.6

1

MCT EI 422 1229

230

1-5

2×18

167

6-7/9-10

2×24.6

2

MCT EI 422 1354

230

1-5

1×21

285

7-9

1×27.1

1

MCT EI 422 1230

230

1-5

1×24

250

7-9

1×30.8

1
