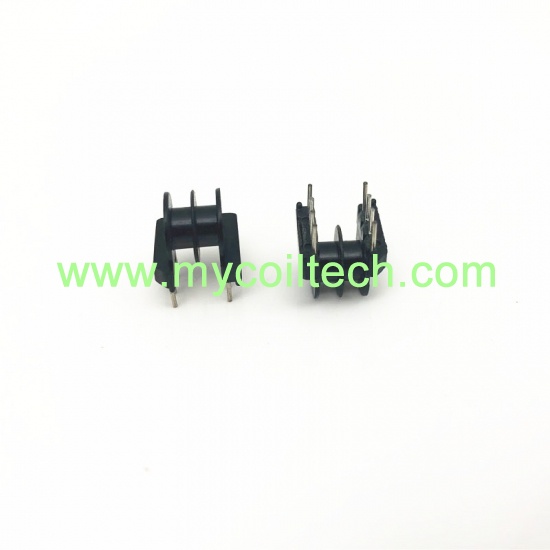

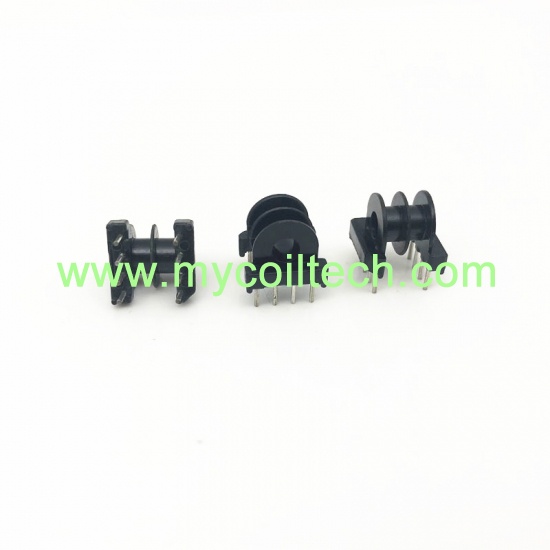

EP10 Electronic Transformer Bobbin with Pin 4+4 Double Slots

4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0

Double Slots Bobbin, Pin Pitch=2.5mm Parallel Distance=7.5mm
Size=11mmX10.9mmX9.6mm

  • brand:

    MCT
  • item no.:

    MCT-EP1002(H4+4P2F)
  • shipping port:

    Shanghai
contact now download
product description

Hefei Mycoil Technology Co., LTD is skilled at producing and designing transformers, inducotors, filters, sensors and other electronic accessories, any requests welcome! Accept OEM and custom made!


Quick Details

Place of Origin:Hefei,China(Mainland)



Custom Made: Available



Material: Phenolic

Part Number: MCT-EP1002(H4+4P2F)



Brand Name: MCT



Color: Black

Certification: ISO9001,ROHS,CE



Packing: Carton,can be customized



OEM: Available

Lead Time: 25 days after payment



Logo: Can be customized



MOQ: Any quantity



Part Information

Product Name: EP10 Electronic Transformer Bobbin with Pin 4+4 Double Slots

Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages:Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.



Contact: Lily Yu

Email: sales003@mycoiltech.com

Skype:   live:sales003_125

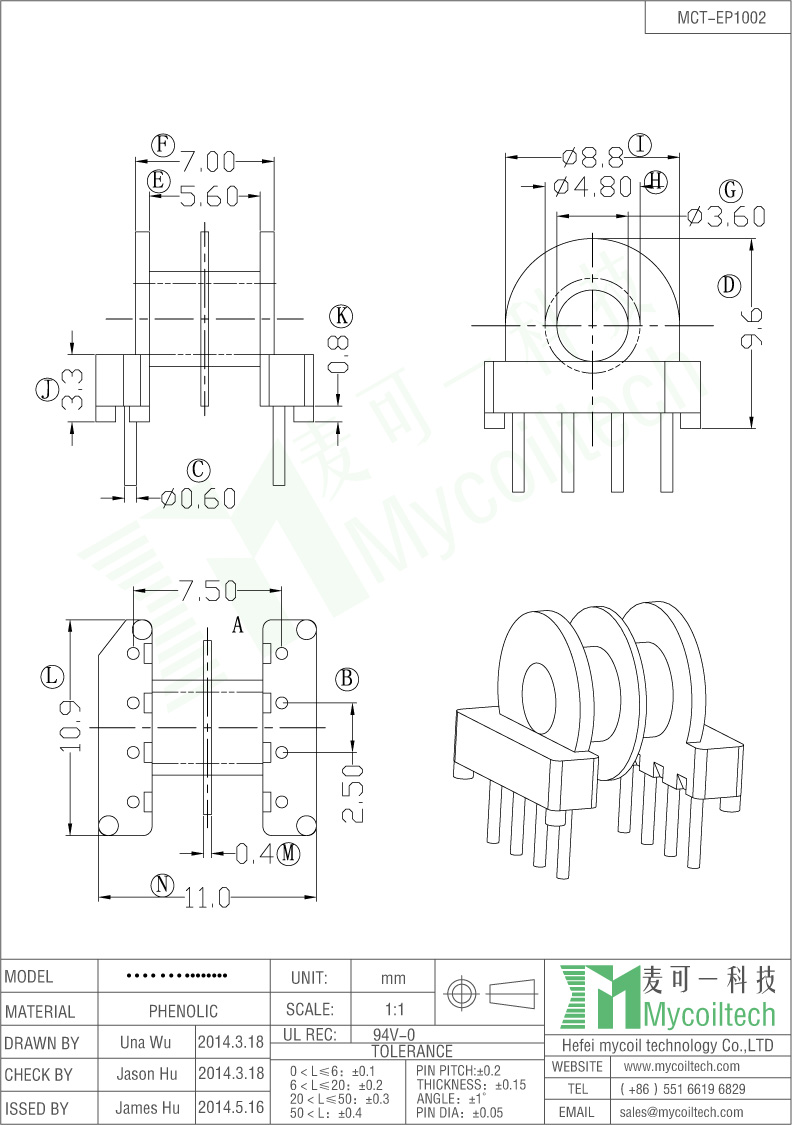

Product Specification

EP10 transfromer bobbin, double slots
