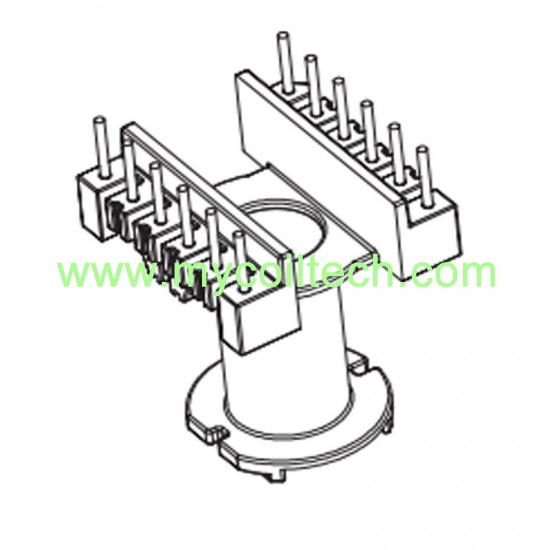

ER28 vertical bobbin 6+6 pins. ER28 phenolic material bobbin. Bobbin Size=28.7mmX27mmX36.4mm. Pin Pitch=5mm. Parallel distance=22.5mm. We can make tooling. DIP bobbin. UL REC:94V-0
brand:
MCTitem no.:
MCT-2809shipping port:
Shanghai2018 Popular ER28 high frequency coil bobbin, vertical bobbin ER28 6+6 pins, accept custom design and small order, if you have any requests, welcome to contact us.
Quick Details
|
Part No: MCT-2809 |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: ER28 Vertical High Frequency Transformer Bobbin Pin 6+6
Product Range: Transformers, inductors, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, inductors, coils, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Advantages: Professional transformer winding bobbin factory, complete specifications.
Our Factory is made up of 500 people, huge output can be finished every day.
All materials are environmental protected. We accept custom made and design service.
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
Product Specification
High Frequency ER42 Transformer 7+7 Pins Bobbin
Soft ferrite core ER42 bobbin. Vertical ER42 7+7 pins bobbin. Bobbin Size=40.3mmX30.0mmX44.3mm. Parallel Distance=25.0mm. Pin Pitch=5.0mm. ER42 high frequency transformer, with low magnetism leakage and good performance, we can start from samples.
ER7.5 SMD Bobbins for High Frequency Transformers
China factory direct sales, high quality ER7.5 vertical transformer frame, accept small order. Product Specification Welcome customized electronic transformer: Email: sales003@mycoiltech.com
ER42 Vertical Transformer 4+1 Pin Bobbin Double Slots
Vertical ER42 coil former, 4+1 pin ER42 transformer bobbin. Bobbin Size=37.6mmX33.0mmX52.7mm. Parallel Distance=28.0mm. ER42 high frequency vertical transformer, with low magnetism leakage and good performance, we can start from samples.
ER28 Switching Mode Power Transformer Frame
ER28/34 horizontal transformer, 6+6 pin ER28 bobbin with six grooves. Bobbin size=34.9mmX28.0mmX20.9mm, pin distance=5mm, parallel distance=26.0mm. We manufacture ER28 transformer for power supply, used in DC converters, with low magnetism leakage and good performance, welcome customized final transformers.
High Frequency ER14.5 SMD Transformer Bobbin
ER14.5 power transformers, SMD horizontal coil bobbin 6+6 pin. Parallel distance=12.0mm. Pin pitch=2.5mm. High voltage ER14.5 coil bobbin, LCP-E4008 material coil bobbin. We make bobbin tooling to meet customer's requirement. ER14.5 transformer for inverters, DC/DC converters, power systems, UPS, computers.
