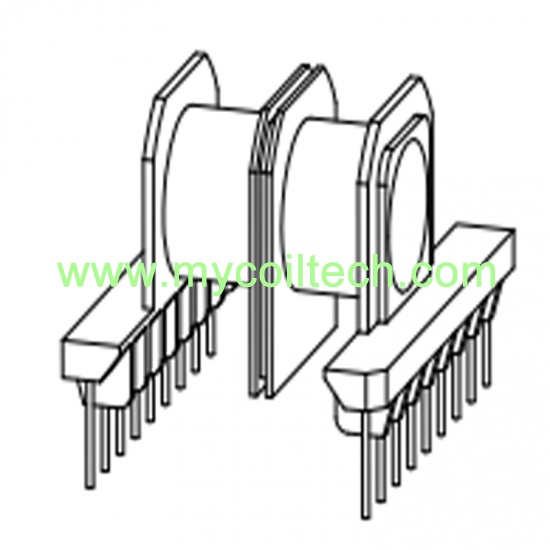

ER42 High Frequency Transformer Bobbin 9+9 pins

PC power ER42 horizontal multi slots coil former ,9+9 pins multi grooves bobbin. ER Coil former size=25.60mmX30.50mmX44.50mm, pin distance=5.00mm.Pin row distance＝35.00mm.

  • product origin:

    China

  • brand:

    MCT

  • item no.:

    MCT-ER4208,未完成

  • MOQ:

    5000
contact now
product description
The latest EF25 flyback multi slots transformer frame is made of PET material and processed into a complex structure (such as heat dissipation slots and positioning bosses) through injection molding, with a smooth surface to reduce winding wear; The material is recyclable and meets environmental certification requirements such as RoHS. Secondly, this material is heat resistant and not easily deformed, ensuring dimensional stability. Finally, our company provides ferrite magnetic cores, case，cover，base， And various transformers.

If you cannot find a suitable product size, we have professional engineers who can customize a suitable product for you.

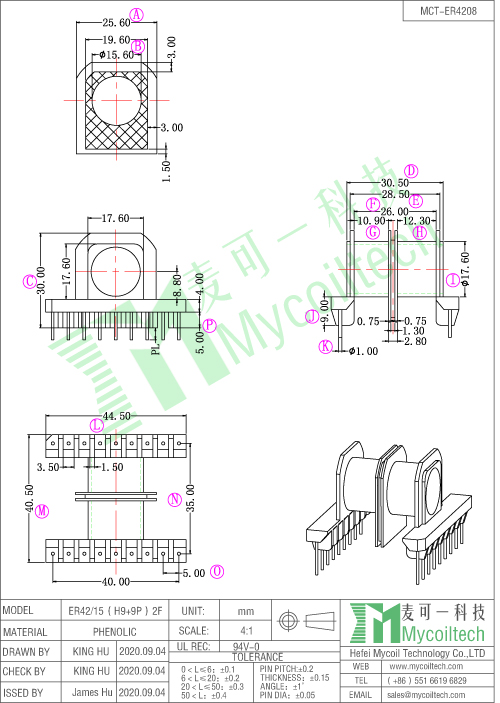

Production Specification


Contact us today to explore bulk orders or request technical specifications.

Email: sales008@mycoiltech.com

Tel: +86 55166196829
