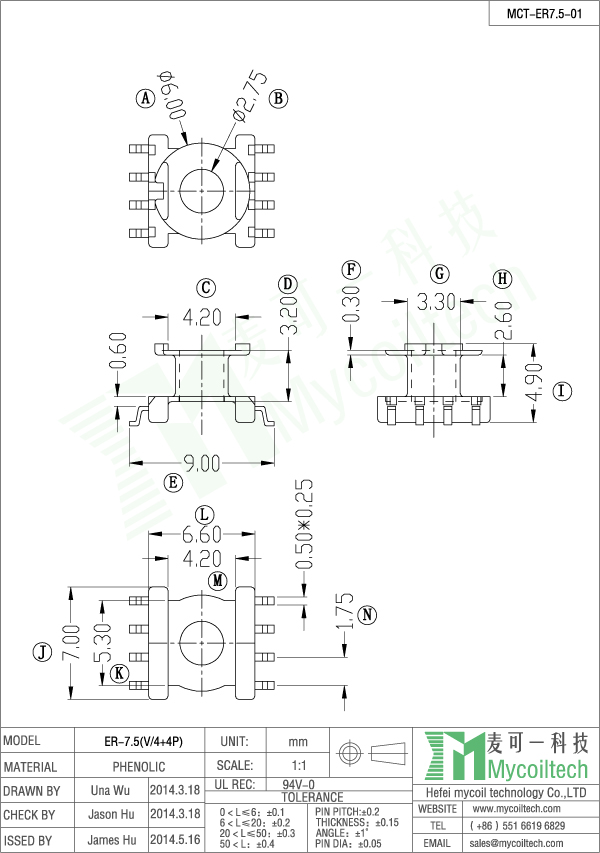

ER7.5 SMD Bobbins for High Frequency Transformers

Soft ferrite core ER42 bobbin. Vertical ER42 7+7 pins bobbin. Bobbin Size=40.3mmX30.0mmX44.3mm. Parallel Distance=25.0mm. Pin Pitch=5.0mm. ER42 high frequency transformer, with low magnetism leakage and good performance, we can start from samples.

Vertical ER42 coil former, 4+1 pin ER42 transformer bobbin. Bobbin Size=37.6mmX33.0mmX52.7mm. Parallel Distance=28.0mm. ER42 high frequency vertical transformer, with low magnetism leakage and good performance, we can start from samples.

ER28/34 horizontal transformer, 6+6 pin ER28 bobbin with six grooves. Bobbin size=34.9mmX28.0mmX20.9mm, pin distance=5mm, parallel distance=26.0mm. We manufacture ER28 transformer for power supply, used in DC converters, with low magnetism leakage and good performance, welcome customized final transformers.

ER28 ferrite core bobbin, 5+5 pins ER28 single slot coil former. Bobbin size=29mmX25.8mmX21.0mm, parallel distance=23.0mm, pin pitch/distance=5.8mm. T375 material ER28 bobbin, we can custom final transformers.

ER28 ferrite core bobbin, 8+8 pins ER28 single slot coil former. Bobbin size=24.8mmX31.5mmX25.2mm, parallel distance=20mm, pin pitch/distance=4.0mm. T375 material ER28 bobbin, we can custom final transformers.
