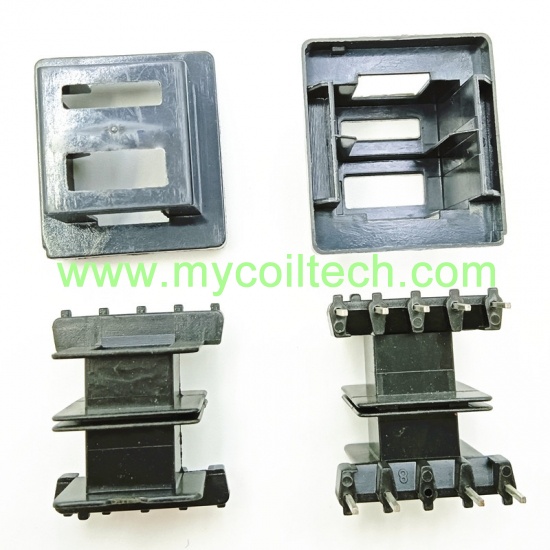

EVD25 horizontal power switch transformer bobbin 5+5 pins，This is our latest customized product for the client. Both the materials and the dimensions meet the requirements. Each product has undergone more than ten product inspections. If you can't find a suitable product, we can also customize the size for you. In addition, you can also ask us to recommend products to you. Our products are widely used in household appliances, industrial manufacturing, military products, laboratory samples, etc. If you have any product issues, please feel free to contact me at any time.
product origin:
Chinabrand:
MCTitem no.:
MCT-EVD2513&MCT-EVD2513-1Power module EVD25 double slots transformer bobbin 5+5 Pins，We offer the matching casing for this product. Of course, we also produce transformers, inductors, current transformers, filters, and so on. Provide high-quality prices and services for a wide range of customers.For detailed data about this product, you can refer to the drawings below. The first one shows the transformer frame, and the second one shows the casing that comes with the transformer frame. If you have any needs, please contact me at any time.

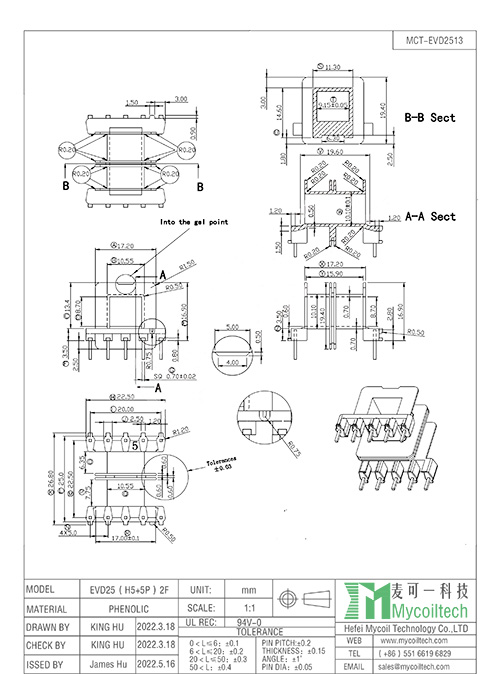

Production Specification 1
Production Specification 2
Contact us today to explore bulk orders or request technical specifications.
