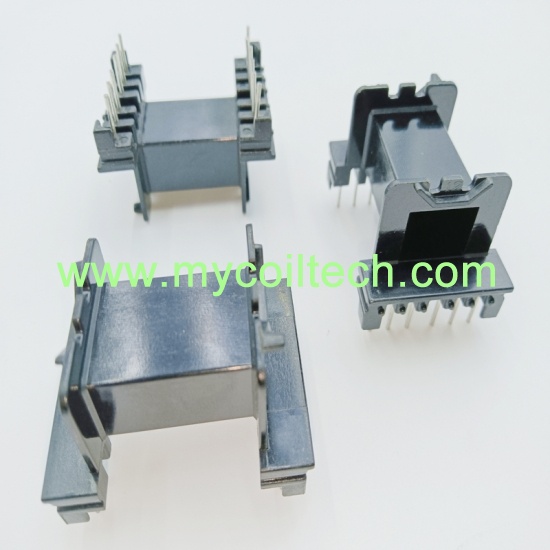

EVD30 Horizontal Power Transformer Bobbin 6+6 Pins

LED light switch transformer bobbin 6+6 pins. Coil former size=36.50mmX20.70mmX26.00mm, parallel distance=22.10mm, pin distance 1=3.80mm, pin distance 2 =5.00mm.This product is made by condensation of phenol and formaldehyde, and has excellent electrical insulation (dielectric strength>15kV/mm), high temperature resistance (HDT 150-200 ℃, UL94 V-0 flame retardant), mechanical strength (bending strength>100MPa), and chemical corrosion resistance.We have professional engineers who can customize various transformers, including high-frequency transformer bobbins, cases, bases, covers, etc. If you have any product related questions, please feel free to contact us at any time.

product origin:
China
brand:
MCT
item no.:
MCT-EVD3001
MOQ:
5000

contact now

product description

EVD30 charging pile high frequency transformer bobbin with 6+6 pins . High frequency transformers adapted to EVD30 skeletons (such as EE25, EI30, etc.) are commonly used in mobile phone chargers, laptop power supplies, etc., achieving lightweight design through efficient energy conversion (efficiency>90%). For example, an adapter with a 30W output power can use an EVD30 skeleton combined with an EER28 magnetic core to meet the fast charging requirements of 5V/6A.Of course, our products are suitable for manufacturing, military industry, medical equipment, aerospace, and other industries. We also support customized products. If you have any questions, please feel free to contact us at any time.

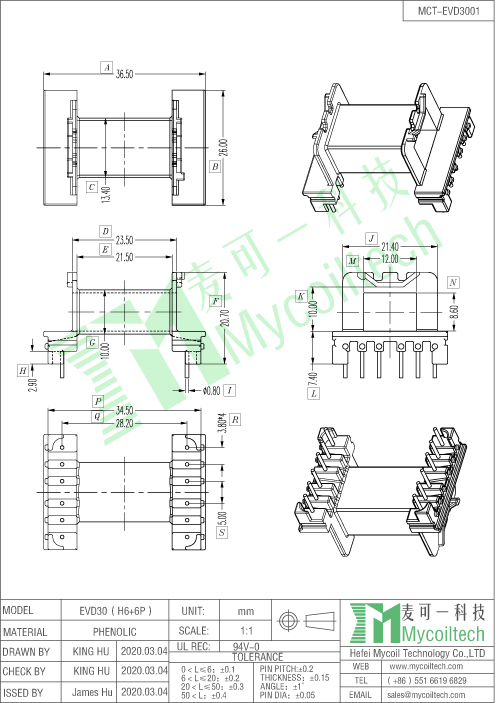

Production Specification

Motor driven transformer bobbin
