product origin:
Chinabrand:
MCTitem no.:

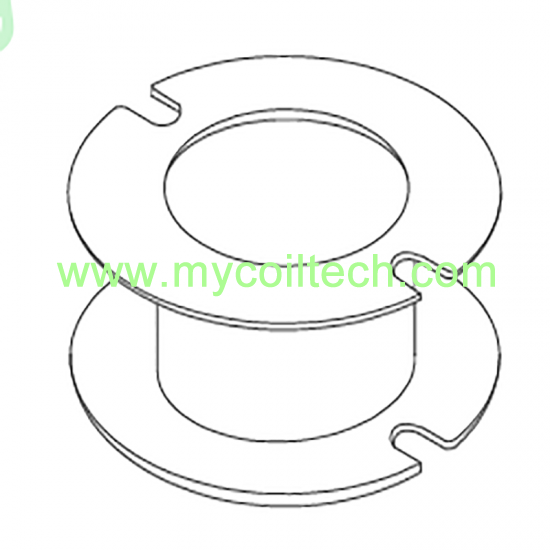

MCT-GU2201& MCT-GU2202The ambient light POT22 driver power transformer bobbin. The two drawings below are the detailed dimensions of the gu22 transformer bobbin. If this product does not suit you, you can contact me and I will recommend the most suitable one for you. Of course, we can also customize products for you. Just send me a drawing, and then we will give you a quotation based on the drawing first.

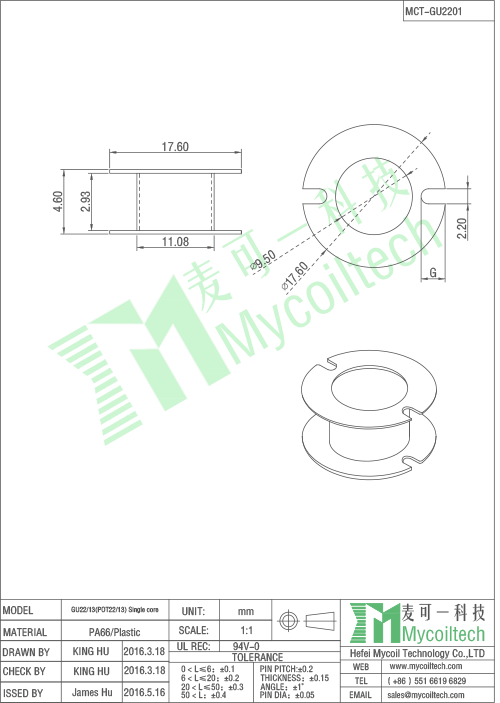

Production Specification 1
Production Specification 2
Contact us today to explore bulk orders or request technical specifications.
Email: sales008@mycoiltech.com
Tel: +86 55166196829
