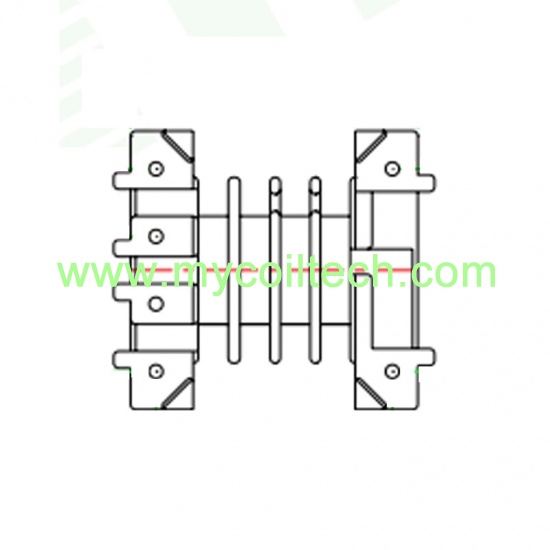

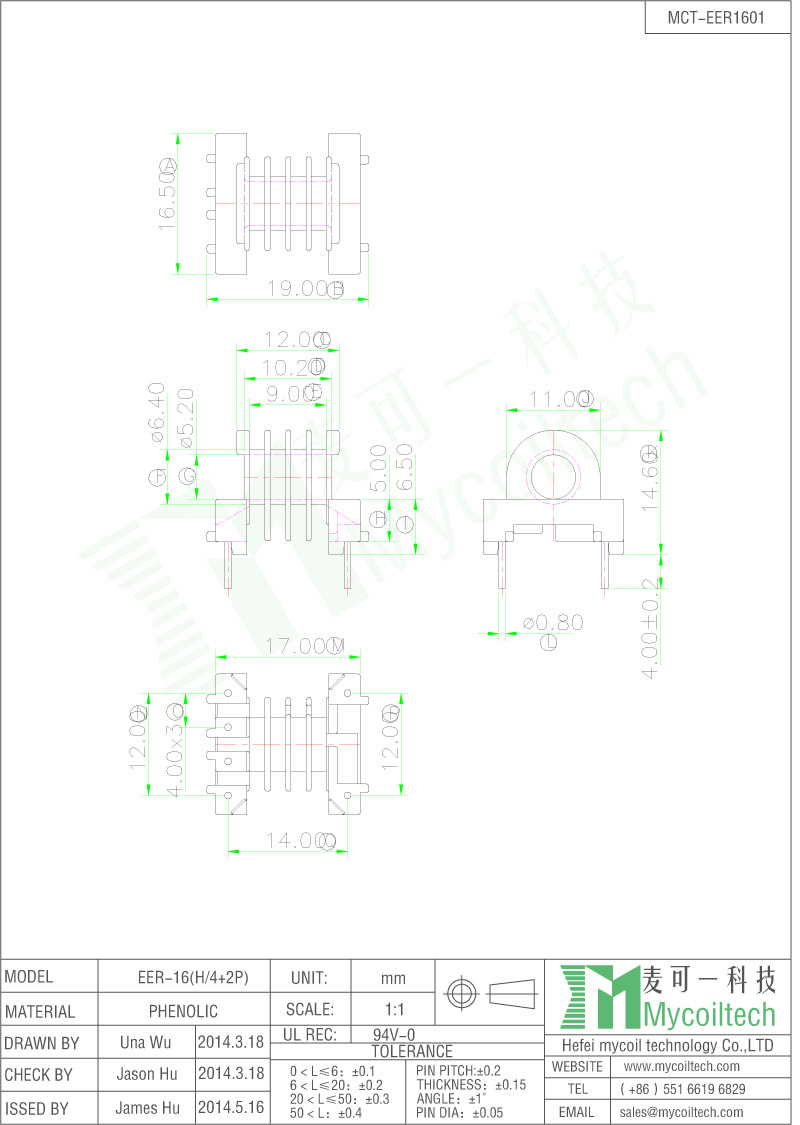

4+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0
Parallel Distance=14mm
Size=19mmX16.5mmX14.6mm
brand:
MCTitem no.:
MCT-EER1601(H4+2P)shipping port:
ShangHaiEER16 transformer bobbin,dip bobbin ,phenolic material ,Horizontal Bobbin,we have a technical team consists of 5 experienced engineers,so custom made and design service is available.
Quick Details
|
Place of Origin:Hefei,China(Mainland) |
|
Custom Made: Available |
|
Material:Phenolic |
|
Part Number: MCT-EER1601(H4+2P) |
|
Brand Name: MCT |
|
Color: black |
|
Certification: ISO9001,ROHS,CE |
|
Packing: Carton,can be customized |
|
OEM: Available |
|
Lead Time: 25 days after payment |
|
Logo: Can be customized |
|
MOQ: Any quantity |
Part Information
Product Name: Horizontal Bobbin EER16 Tramsformer Bobbin With 4+2 Pins.
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air ,By ship ,etc.
Advantages: Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
Contact: Miss Qian Gao
Email: qian.gao@mycoiltech.com
Skype: live:qian.gao_5
Product Specification
EER16 Horizontal Transformer Bobbin Phenolic Material With 2+4 Pins
2+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=14mm Size=19mmX16.5mmX14.6mm
Horizontal EER35 High Frequency Transformer Bobbin with 7+7 Pins
7+7 Pins EER35 horizontal transformer bobbin. DIP bobbin. Parallel Distance=37mm. Pin Pitch=5.0mm. UL REC:94V-0 Bobbin Size=43.5mmX36mmX28.8mm. EER35 phenolic bobbin.
EER35 Electronic Transformer Bobbin 6+6 Pins Horizontal Bobbin
6+6 Pins EER35 horizontal bobbin. DIP transformer bobbin. Parallel Distance=35mm. Pin Pitch=5.0mm. UL REC:94V-0 Bobbin Size=42.5mmX35mmX24mm. EER35 phenolic bobbin.
Vertical EER40 High Frequency Transformer Bobbin with 14 Pins
7+7 Pins EER verticlal transformer bobbin. DIP bobbin. Parallel Distance=25mm. Pin Pitch=5.0mm. UL REC:94V-0 Bobbin Size=40mmX32.2mmX42.8mm. EER40 phenolic bobbin.
7+7 Pins EER40 Ferrite Core Bobbin Vertical Transformer Bobbin
EER40 verticlal transformer bobbin. Phenolic bobbin. Parallel Distance=25mm. Pin Pitch=5.0mm. UL REC:94V-0 Bobbin Size=40mmX32mmX42.5mm. 7+7 pins EER40 bobbin.
Hefei Mycoil Technology Co.,LTD(MCT) is a high-tech and growing enterprises, we are committed to the development and production of various types of coil products, various types of filter products. Meet the needs of customers with various required for...
