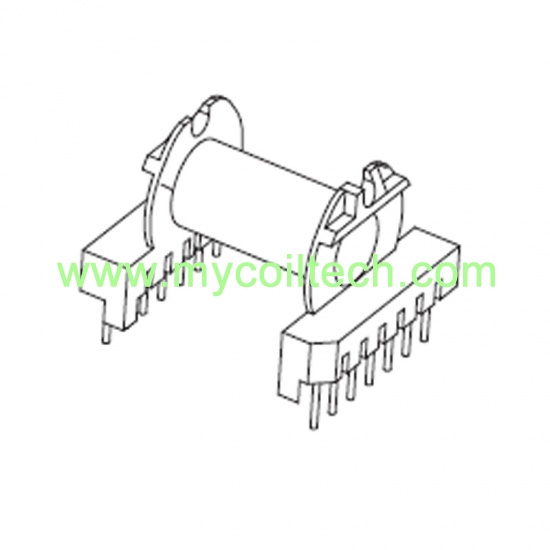

7+7 Pins ERL type horizontal transformer bobbin. DIP bobbin.
Parallel Distance=37mm. Pin Pitch=5mm. UL REC:94V-0.
Bobbin Size=43.5mmX36mmX28.8mm. ERL35 phenolic bobbin.
brand:
MCTitem no.:
MCT-ERL3501(H7+7P)MOQ:
1shipping port:
ShanghaiHot selling ERL35 transformer bobbin, 7+7 pins horizontal bobbin, low price and high quality, accept small order, custom design and OEM service.
Quick Details
|
Part Number: MCT-ERL3501(H7+7P) |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: Horizontal ERL35 High Frequency Transformer Bobbin with 7+7 Pins
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Advantages: Professional transformer winding bobbin factory, complete specifications.
Our Factory is made up of 500 people, huge output can be finished every day.
All materials are environmental protected. We accept custom made and design service.
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
Product Specification
6+6 Pins ERL35 Bobbin for Ferrite Cores Vertical Transformer Bobbin
ERL35 vertical transformer bobbin. 6+6 pins phenolic bobbin. Parallel Distance=22.5mm. Pin Pitch=5.0mm. UL REC:94V-0 Bobbin Size=30.2mmX28.5mmX40.5mm. Accept make bobbin tooling.
7+7 Pins Bobbin ERL35 Vertical Electronic Transformer Bobbin
14 pins phenolic ERL type bobbin. Vertical transformer bobbin. Parallel Distance=22.5mm. Pin Pitch=5.0mm. UL REC:94V-0 Bobbin Size=35mmX28.1mmX41mm. Accept make bobbin tooling.

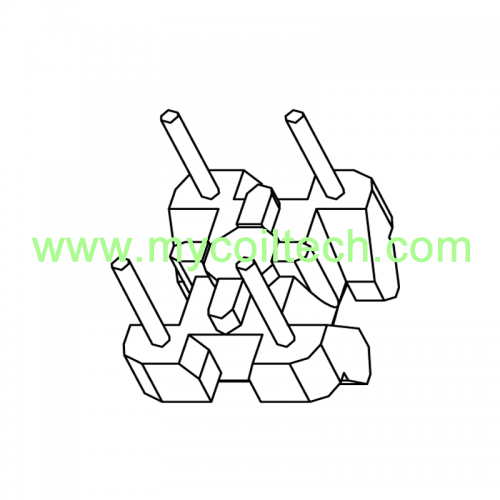

Filter Mode Choke Inductor 8 Pins Base
Air coil inductor base. Magnetic core inductor phenolic base. Size=19.4mmX12.7mmX5.85mm. Pin pitch=3.0mm. Parallel diatance=11.0mm. We manufacture electronic components for customers, special specifications available upon request. High current inductors made with soft ferrite core, include NiZn, MnZn, Amorphous, Iron powder core.
Choke Coil Inductor Case 5+5 Pins
Potting case used in power inductor, 5+5 pins phenolic material case, parallel distance=15.0mm, pin pitch=12.50mm. Pin pitch=5.0mm. Manufacture electronic transformers and inductors. Accept custom design and OEM service.

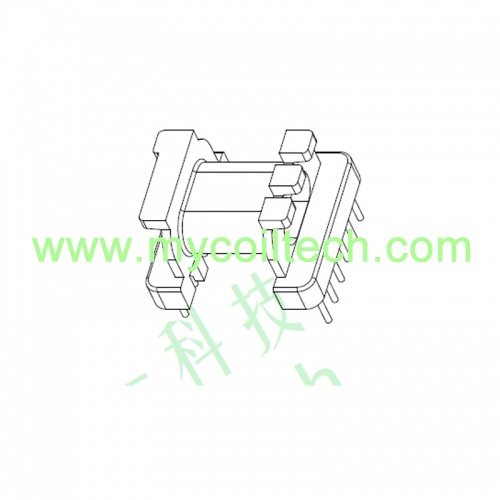

EF20 Soft Ferrite Core Transformer Bobbin Pin 5+5 Horizontal
EF20 transformer horizontal bobbin. EF20 5+5 pin coil bobbin. Bobbin Size=22.3mmX22.3mmX18.5mm. Pin pitch=3.8mm. Parallel Distance=15.0mm. PA66 material transformer bobbin. DIP transformer bobbin.
