Magnetic latching relay contact capacity:80A 250VAC. Dielectric strength(VAC):4000VAC.Permanent magnetic strength to keep stability,save power consumption.
brand:
MCTitem no.:
MCT-BMC-80A Relayshipping port:
Shanghai PortMagnetic latching relay as electromechanical switch. Mainly used in electronic energy meter, automatic meter reading system, lamp controller, complex switch and electronics equipment. Hefei Mycoil Technology Co.,LTD is ISO9001:2008 certification factory, we are skilled at designing and producing electronic transformers, choke coils, full range of SMD power inductors, EMI filters, magnetic latching relays.
Magnetic Latching Relay 80A factory status to contact closure state (reset state), but because of the transportation or relay hit when installation, the influence of such factors as may change state, so it is necessary to take measures before use to make its reset. Low magnetic stick relay in order to ensure reliable action, must be applied to the coil excitation voltage rating, and the action time of the pulse width must be more than 3 times. For double coil relay, not to the two coil voltage signal at the same time, also don't long time (more than 1 minute) to the coil voltage, in case of damage of coil overheating.
Quick Details
Part No: MCT-BMC-80A Relay |
|
Brand name: MCT |
Contact form: 1B |
|
Custom made: Available |
Contact material: silver alloy |
|
Logo: Can be customized |
Contact voltage drop: MAX.15mV |
|
Packing: Carton,can custom |
Contact load (resistance): 80A 250VAC |
|
Certification: ISO9001,ROHS,CE |
Max switching voltage: 250V AC |
|
OEM: Available |
(Max switching power): 20000VA |
|
Shipping: Air, Ship, etc |
Lead time: 25 days after payment |
|
MOQ: Any quantity |
Part Information

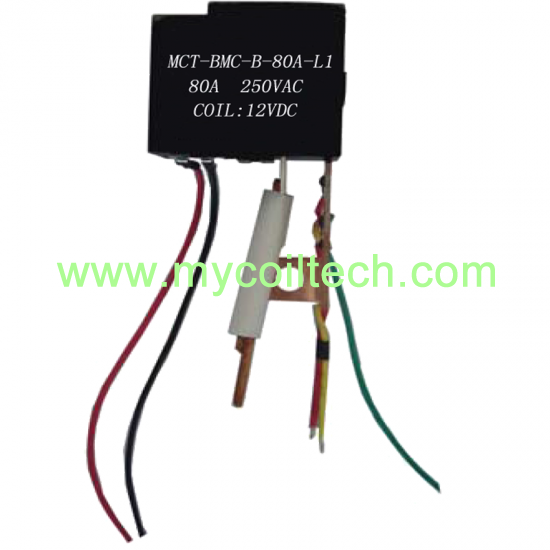

Product Name: Magnetic Latching Relay 80A 250VAC For Automatic Meter Reading System
Applications: Home appliance, automatic control equipment, industrial equipment power supply, other electronic devices.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Advantages:Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.

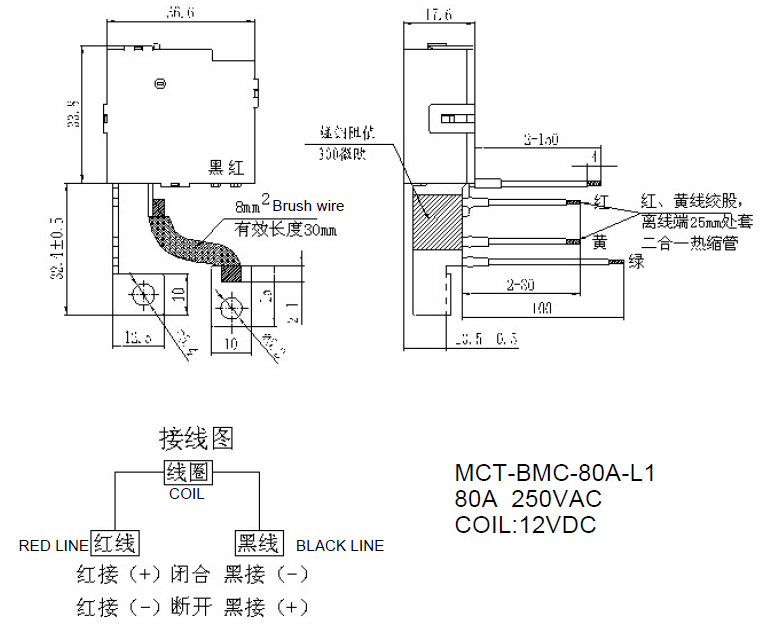

Product Details
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
