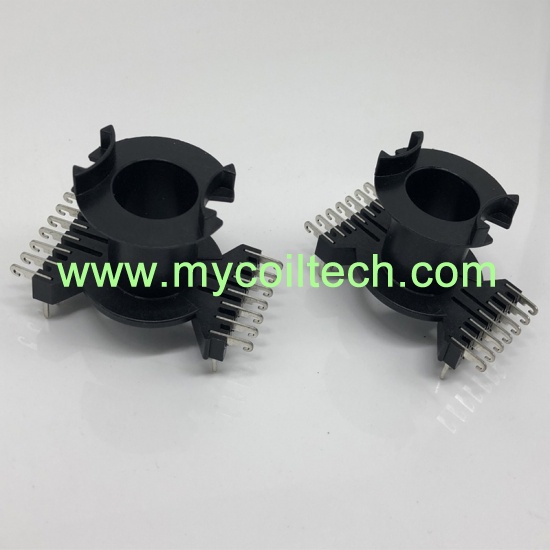

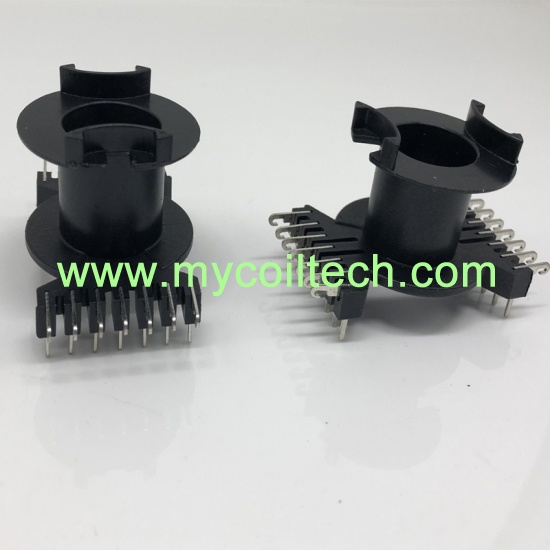

Customized PM50 power transformer. Single slot vertical bobbin with 7+7 pins. Bobbin size=50.7mmX23.2mmX35.9mm. Pin pitch=5.0mm. Pin distance=45.7mm. We have many bobbin tooling and we can make final transformer for customers.
brand:
MCTitem no.:
MCT-PM5001(V7+7P)shipping port:
Shanghaipayment:
T/T in advancePopular PM50 coil former factory, supply PM50 ferrite cores, high quality and low price, welcome custom design and OEM service.
Quick Details
Part No: MCT-PM5001 |
Brand Name: MCT |
Material: Phenolic |
Color: Black |
UL REC: 94V-0 |
Logo: Can be customized |
Lead Time: 20 days after payment |
Custom Made: Available |
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
OEM: Available |
MOQ: Any quantity |
Product Specification
For more details, welcome to contact us.
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
