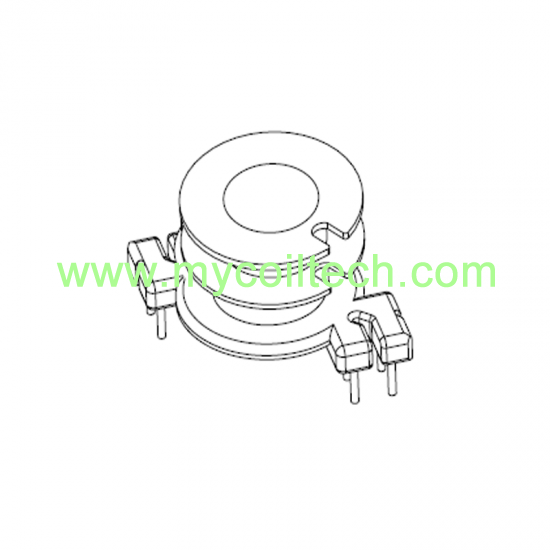

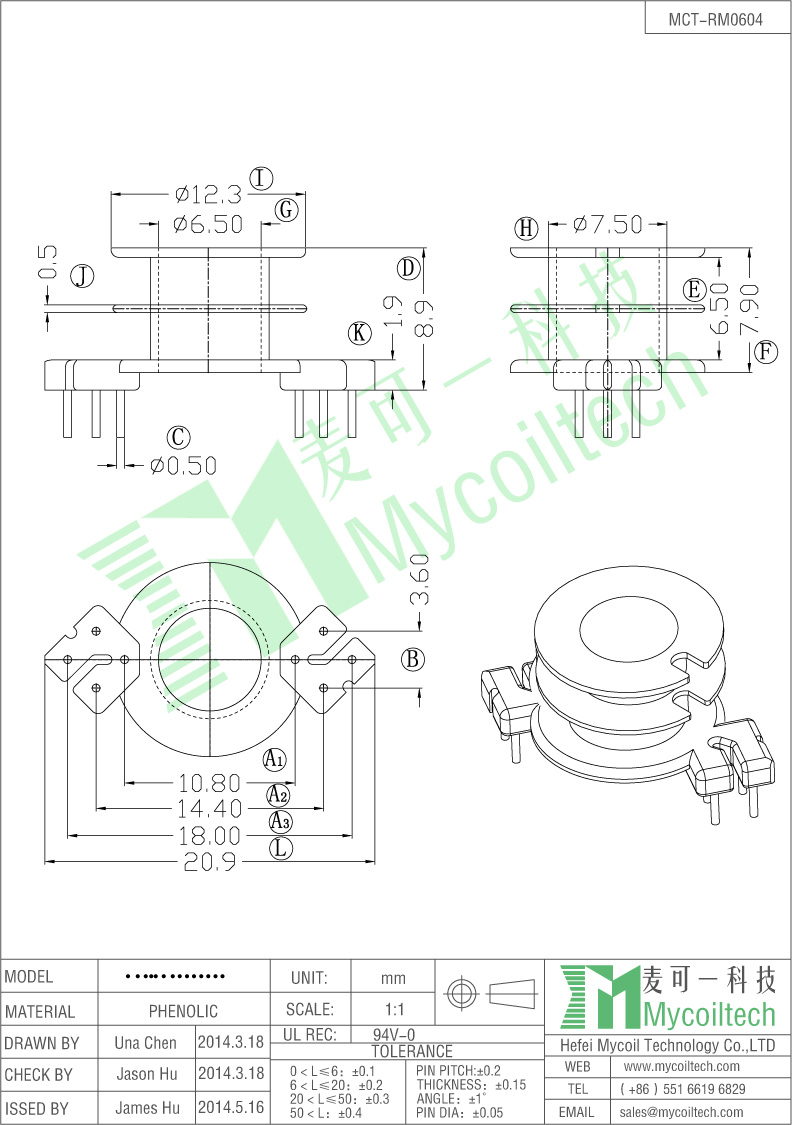

4+4 Pins Vertical Bobbin. Double Slots Bobbin. Bobbin Size=20.9mmX12.3mmX8.9mm. Phenolic Material, DIP transformer Bobbin. UL REC:94V-0
brand:
MCTitem no.:
MCT-RM0604(V4+4P2F)shipping port:
ShanghaiHigh quality RM6 Vertical 4+4 pins bobbin from MCT, with RoHS Certification.
Quick Details
|
Place of Origin: Hefei,China(Mainland) |
|
Custom Made: Available |
|
Material: Phenolic |
|
Part Number:MCT-RM0604(V4+4P2F) |
|
Brand Name: MCT |
|
Color: Black |
|
Certification: ISO9001,ROHS,CE |
|
Packing: Carton,can be customized |
|
OEM: Available |
|
Lead Time: 25 days after payment |
|
Logo: Can be customized |
|
MOQ: Any quantity |
Part Information
Product Name: RM6 Vertical Bobbin for Household Ferrite Core,with 4+4 Pin Double Slots
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Switching power supply, high frequency transformer, filter inductors, resonant inductors
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air ,By ship ,etc.
Advantages: We use high quality materials to make our bobbin products more stable.
We have a technical team consist of 5 experienced engineers, they can quickly respond to make drawings and samples.
We can adjust product size to make product install conveniently, improve the customer's production efficiency.
Contact: Lily Yu
Email:sales003@mycoiltech.com
Skype: live:sales003_125
Product Specification
RM6 Power Supply Transformer Bobbin with 2+2Pins
2+2 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin,Pin Pitch=3.6mm Parallel Distance=14.5mm Size=17.1mmX12.3mmX8.9mm
Vertical RM6 High Frequency Transformer Bobbin with 2+2Pin Double Slots
2+2 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin,Pin Pitch=3.6mm Parallel Distance=14.5mm Size=17mmX12.3mmX8.9mm, Pin Dia=0.5mm
PCB Mounting RM6 Transformer Bobbin
RM6 led drive transformer bobbin, 4+4 pins vertical coil bobbin, coil former size=20.9mmX12.3mmX8.9mm,Pin Dia=0.5mm, Phenolic Material,UL REC:94V-0, DIP Bobbin, accept customized RM6 small electronic transformer.
Switching Power Suppy RM6 Bobbin, 5pin Vertical type
5+0 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin, Bobbin Size=16.1mmX13mmX11.65mm
RM6 High Frequency Transformer Vertical Bobbin
RM6 ferrite core bobbin, 3+3 Pins vertical RM6 coil bobbin, DIP Bobbin,Pin Pitch=2.55mm,Size=20.9mmX12.3mmX9mm. Phenolic Material, RM6 transformer used for led lighting, UPS, SMPS, computer, main power transformers.
RM6 4+7 Pins High Frequency Transformer Bobbin, Phenolic Material
4+7 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin, Bobbin Size=25.39mmX12.3mmX8.4mm
4 Pins Ferrite Core Vertical RM6 bobbin
4+0 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin, Pin Pitch=2.54mm,Size=15.6mmX10mmX9.8mm
Vertical RM6 Transformer Bobbin 3+3 Pins Double Slots Bobbin
3+3 Pins Double Slots Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.6mm,Size=20.5mmX12.1mmX8.1mm
Vertical RM6 Switching Power Transformer Bobbin
3+3 Pins DIP Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.6mm,Size=20.5mmX12.1mmX8.1mm
RM6 Bobbin for Power Charge High Frequency Transformer
3+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Double Slots Bobbin,Size=20.5mmX12.1mmX8.7mm
Vertical RM6 High Frequency Ferrite Core Bobbin
3+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin, Size=20.5mmX12.2mmX9.1mm
4+4 Pins RM6 Vertical Electronic Transformer Bobbin
4+4 Pins DIP Bobbin,Phenolic Material,UL REC:94V-0 Vertical Bobbin, Size=18mmX12.3mmX9.15mm
