SMD EFD15 Power Transmission Transformer Bobbin 5+5 Pins

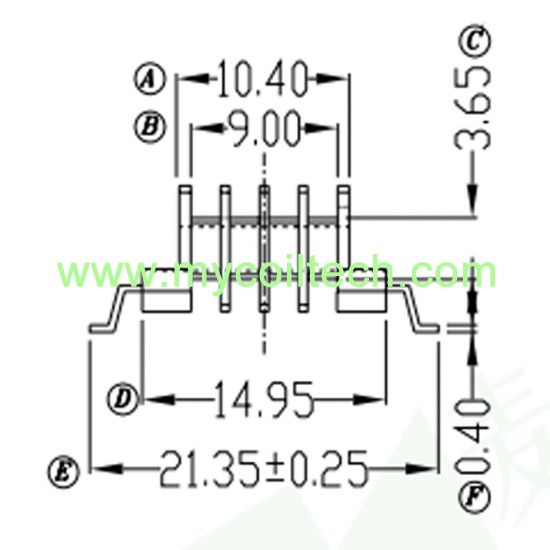

SMD EFD15 horizontal multi slots transformer former,Coil former size=14.95mmX7.45mmX15.00mm, Pin distance=2.50mm.In addition, our company provides supporting products such as SMD EFD15 ferrite cores, SMD EFD15 transformer windings, and SMD EFD15 transformer covers. If you have any product related questions, please feel free to contact us at any time.

product origin:
China
brand:
MCT
item no.:
MCT-SMD-EFD1510

contact now

product description

EFD15 Variable frequency drive transformer bobbin.We use LCP-E4008 material for this product. Firstly, it has excellent electrical insulation performance, high dielectric strength, and arc resistance, which can effectively ensure the electrical safety inside the transformer; Secondly, the heat-resistant temperature reaches 260 ℃, and it is not easily softened or deformed at high temperatures, which can meet the temperature rise requirements of long-term operation of transformers; Furthermore, after being reinforced with fiberglass, the mechanical strength is significantly improved, which can resist vibration and mechanical stress during operation; At the same time, it has outstanding chemical resistance, good resistance to oils, solvents, and acids and bases, and is suitable for various environments.If you choose our product, we will provide high-quality service as a bonus.

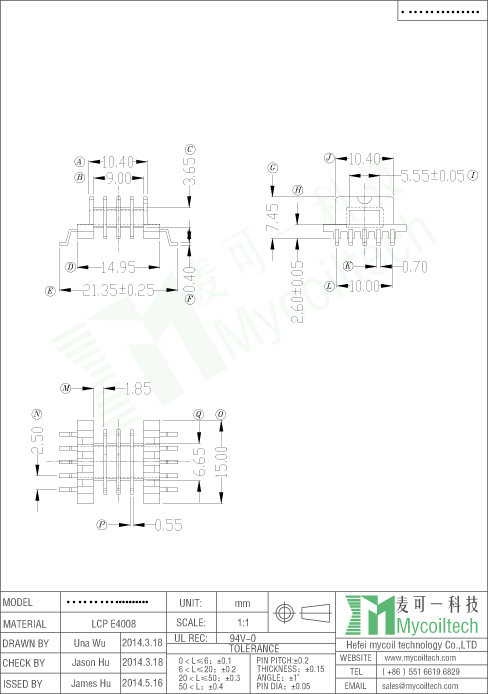

Production Specification

Email: sales008@mycoiltech.com

Tel: +86 55166196829
