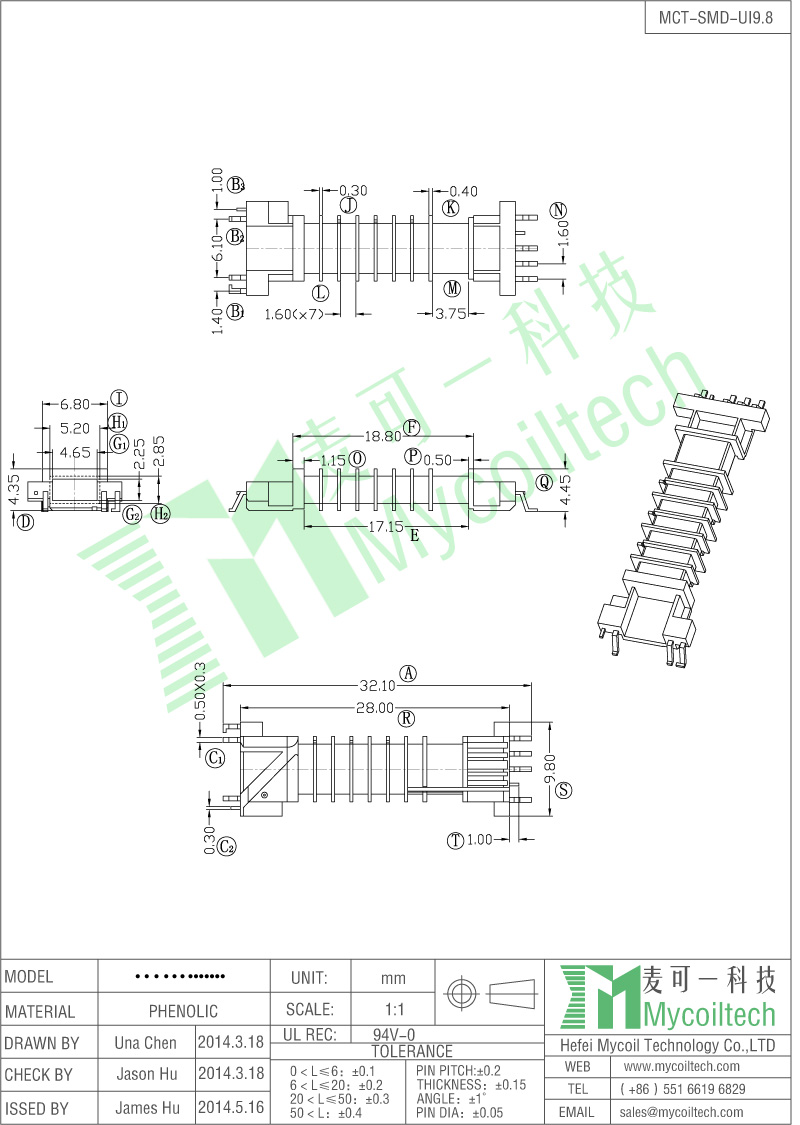

8 Pins Bobbin, Phenolic Material Bobbin,UL REC:94V-0
Size=32.1mmX9.8mmX4.45mm
brand:
MCTitem no.:
MCT-SMD-UI9.8(8P)shipping port:
ShanghaiMCT skilled at designing various transformer bobbins which are widely used in electronic components.
Quick Details
|
Place of Origin: Hefei,China(Mainland) |
|
Custom Made: Available |
|
Material: Phenolic |
|
Part Number: MCT-SMD-UI9.8(8P) |
|
Brand Name: MCT |
|
Color: Black |
|
Certification: ISO9001,ROHS,CE |
|
Packing: Carton,can be customized |
|
OEM: Available |
|
Lead Time: 25 days after payment |
|
Logo: Can be customized |
|
MOQ: Any quantity |
Part Information
Product Name: SMD Transformer Bobbin UI9.8 with 8Pin
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Switching power supply, high frequency transformer, filter inductors, resonant inductors, electronic equipments.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Advantages:Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
Contact: Lily Yu
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Product Specification
UI16 Transformer Bobbin Phenolic Material With 2 Pins
2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.6mm Height=5.3mm Diameter=16mm
SMD Transformer Bobbin UI9.8 with 8Pin
8 Pins Bobbin, Phenolic Material Bobbin,UL REC:94V-0 Size=32.1mmX9.8mmX4.45mm
UI30 Lamination Core Transformer Double Slots Bobbin
UI30 PBT material transformer, low frequency transformer bobbin UI30 two slots. Bobbin size=42.5mmX41.0mmX20.1mm, parallel distance=35.0, pin pitch1=5.0mm. We accept make new bobbin tooling to meet special size request, samples can be sent for testing.
UI30 Low Frequency Transformer 4+4Pin Bobbin
UI30 4+4 pin bobbin for transformer, A3X2G5 material coil former two slots, Bobbin size=42.5mmX41.0mmX20.1mm, parallel distance=35.0, pin pitch1=5.0mm. We accept make new bobbin tooling to meet special size request, samples can be sent for testing.
EQ30 Power Supply Transformer Vertical Bobbin
5+5 Pins EQ30 vertical bobbin for transformer. We supply matched EQ30 ferrite cores for customer test. Parallel Distance=34.9mm. Phenolic bobbin. We have bobbin tooling, for mass production, our lead time is about 15-20days.
ETD49 Power Transformer Ferrite Core Bobbin
PCB power transformer ETD49 bobbin 10+10 pins two slots. Bobbin Size=57.0mmX54.0mmX40.7mm. Pin pitch=5.0mm. Parallel Distance=41.0mm. High frequency transformer frame. Manufacture transformers, mainly used in PCB circuits, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments.
General Purpose Household Appliances Power Electromagnetic Relay
Contact capacity2C/3C:7A 250VAC/30VDC 4C:5A 250VAC/30VDC, Coil power(W)0.9W,1.2VA, Dielectric Strength(VAC):1500VAC
EF20 Power Transformer Horizontal Bobbin Pin 4+4
EF20 soft ferrite core. 4+4 pins EF20 bobbin. Bobbin Size=21.0mmX20.8mmX18.4mm. Pin pitch=5.0mm. Parallel Distance=15.0mm. EF20 horizontal coil bobbin. EF20 transformer DIP bobbin. PA66 material transformer bobbin.
Vertical 4+4 Pin SMD ER7.5 Power Transformer
4+4 pins ER7.5 SMD bobbin, ER7.5 PCB mounting transformer. Pin pitch=1.75mm. We supply ER7.5 cores, for special size, we can make new tooling.
Lead Free Bobbin ER28 Vertical Transformer Bobbin with 9+9 Pins
ER28 ferrite core vertical bobbin. ER28 phenolic material bobbin 6+6 pins. Bobbin Size=36mmX24.5mmX34.2mm. Pin Pitch=4mm. Parallel distance=20mm. We can make bobbin tooling. DIP bobbin. UL REC:94V-0
Horizontal EER35 High Frequency Transformer Bobbin with 7+7 Pins
7+7 Pins EER35 horizontal transformer bobbin. DIP bobbin. Parallel Distance=37mm. Pin Pitch=5.0mm. UL REC:94V-0 Bobbin Size=43.5mmX36mmX28.8mm. EER35 phenolic bobbin.
EE19 LED Light Transformer Frame 4+6 Pin
EE19 high frequency bobbin. 6+4 pin EE19 horizontal bobbin two slots. Bobbin Size=18.5mmX15.0mmX17.8mm. Parallel Distance=12.5mm. Pin pitch1=3.5mm.Pin pitch2=2.7mm. We are transformer bobbin factory, we produce and make different bobbin toolings, we also manufacture final high frequency transformers for power supply.
