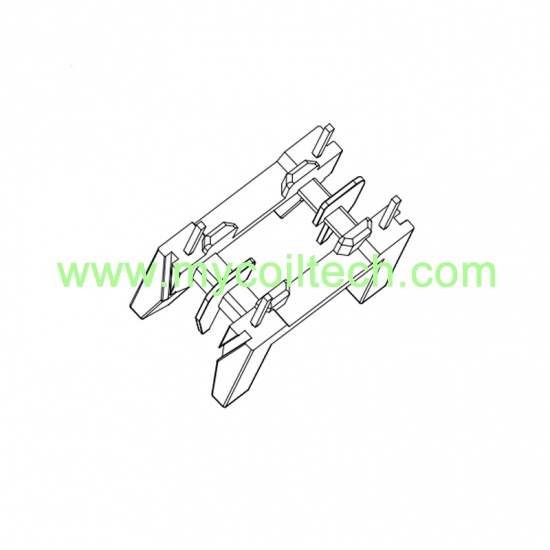

2+2 pins SQ19 inductor base, horizontal ET coil former for common mode choke inductor. Size=24.0mmX14.3mmX12.5mm. Parallel Distance=10.0mm. Pin pitch=19.0mm. PET material base. We are professional bobbin factory, we have made different series bobbin moldings, samples are available.
brand:
MCTitem no.:
MCT-SQ1903 (H2+2P)shipping port:
Shanghaipayment:
T/T in advanceHot selling common mode choke base, SQ19 bobbin horizontal 2+2 pins, samples can be sent for testing.
Product Specification
For more details, welcome to contact us:
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily

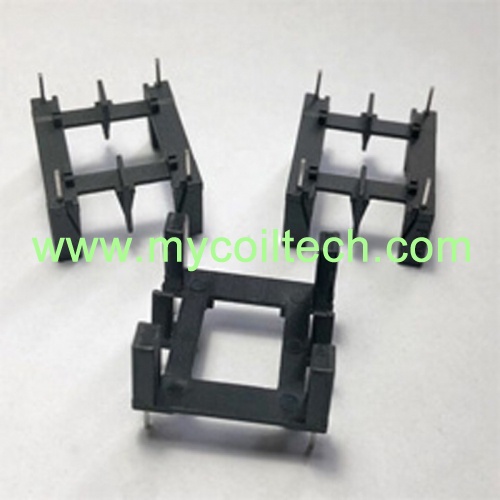

Vertical High Current Inductor SQ23 Bobbin
Common mode choke inductor. 2+2 pins vertical SQ23 coil former. Bobbin Size=28.0mmX14.0mmX25.0mm. Parallel Distance=10.0mm. Pin pitch=18.8mm. Flat wire winding common mode choke coils. We are professional transformer bobbin factory, our bobbins mainly used in high frequency line filters, smoothing choke coil, drive transformer, switching power transformers and chokes.

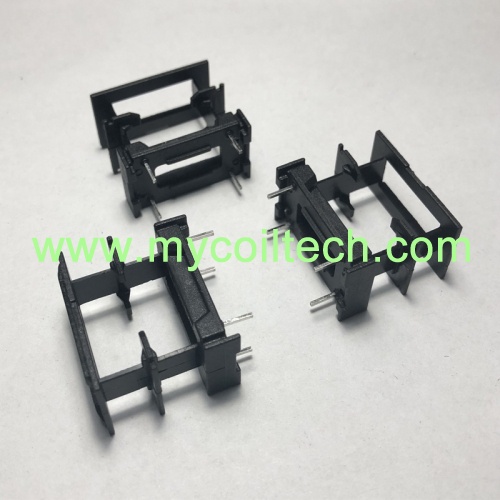

SQ23 Common Mode Choke Inductor Bobbin
High current SQ23 inductor. 2+2 pins SQ23 horizontal coil former. Bobbin Size=25.5mmX24.0mmX11.75mm. Parallel Distance=22.5mm. Pin pitch=20.0mm. Flat wire winding common mode choke coils. We are professional transformer bobbin factory, our bobbins mainly used in high frequency line filters, smoothing choke coil, drive transformer, switching power transformers and chokes.
7+7 Pins ER35 Transformer Double Slots Horizontal Bobbin
ER35 high frequency transformer manufacture. Double slots ER35 horizontal transformer bobbin. Parallel Distance=37mm. Pin Pitch=5.0mm. 7+7 pins ER35 bobbin. Size=41.5mmX34.2mmX29.2mm. UL REC:94V-0
EF35 Horizontal Transformer Bobbin for Electronic Transformers Inductors
7+7 Pins EF35 electronic transformer bobbin. DIP bobbin. PA66 bobbin. Pin Pitch=4.5mm. Parallel Distance=29.1mm. Bobbin Size=40.8mmX34.4mmX21.95mm(±0.20). UL REC:94V-0.
RM6 High Frequency Transformer Vertical Bobbin
RM6 ferrite core bobbin, 3+3 Pins vertical RM6 coil bobbin, DIP Bobbin,Pin Pitch=2.55mm,Size=20.9mmX12.3mmX9mm. Phenolic Material, RM6 transformer used for led lighting, UPS, SMPS, computer, main power transformers.
Verical EE24 Transformer 4+4 Pins Bobbin
EE24/25 ferrite core, 4+4 pins vertical EE24 transformer. Bobbin Size=22.61mmX18.64mmX15.47mm. Parallel Distance=19.30mm. Pin pitch=3.81mm. We manufacture low frequency transformers and mainly used for testing equipment, UPS, power supplies, printers, etc.
EE13 Dip Transformer Bobbin Dip Type 4+4 Pins For High Frequency Transformer
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=10mm Size=13mmX12.7mmX13mm
High Current EF20 Flyback Transformer Vertical Bobbin
EF20 power transformer for PCB board. Supply EF20 coil former and matched ferrite cores. Parallel distance=10.16mm. Bobbin Size=20.8mmX16.0mmX21.3mm. Pin pitch=5.08mm. We can make bobbin tooling to meet customer's requirement.
Through Hole Ferrite Drum Core Power Inductor UL Tube Power Choke
Radial leaded drum core inductor. Various sizes are available. Low DCR, large current, high saturation current, best for the power supply line, wide range of inductance and high power. Small mounting space required. Operating temperature range: -25 to +120°C.
Four Slots EFD15 Transformer Bobbin Horizontal Bobbin
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=15mm Size=15mmX14.9mmX7.5mm
EPO12.6 Horizontal Bobbin Dip Type With Double Slots
3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=4.5mm Parallel Distance=6.4mm Size=13mmX8.4mmX8.1mm
EE8.3 Horizontal 2+2 Pins Coil and Transformer Bobbins
2+2 Pins Horizontal Bobbin, Two Slots Phenolic Bobbin,UL REC:94V-0 Pin Pitch=5mm Parallel Distance=6.8mm Pin Dia=0.5mm Size=8.8mmX8mmX8.4mm
