Common mode choke manufacturer. Design: Toroidal Ferrite Core.Plastic Housing,Base Plate made of PA or PET. Fully or Partly Potted or Encapsulated with Resin. Windings Separated. Plastic Housing, Base Plate with Flame Retardant(FR)material, UL94 V-0.
brand:
MCTitem no.:
Three/Four Phase Common Mode Chokeshipping port:
ShanghaiBest selling horizontal common mode choke coils, we are ISO9001 factory, we can design according to customer's requirements, if you are interested in our three/four common mode chokes, welcome to contact us.
Quick Details
|
Part No: Three/Four Phase Common Mode Choke |
Brand name: MCT |
|
Voltage Rating-UR: 250/440 Vac |
Custom made: Available |
|
High Voltage Test-Up: 2500Vac-50HZ-2Sec |
Logo: Can be customized |
|
Current Rating -IR: At 50Hz and 40° |
Packing: Carton, can custom |
|
Inductance Tolerance: -30% to+50% |
MOQ: Any quantity |
|
Test Frequency: -100kHz for LR≤1mH |
OEM: Available |
|
Design: Toroidal Ferrite Core |
Shipping: Air, Ship, etc |
|
Lead time: 25 days after payment |
Certification: ISO9001,ROHS,CE |
Part Information

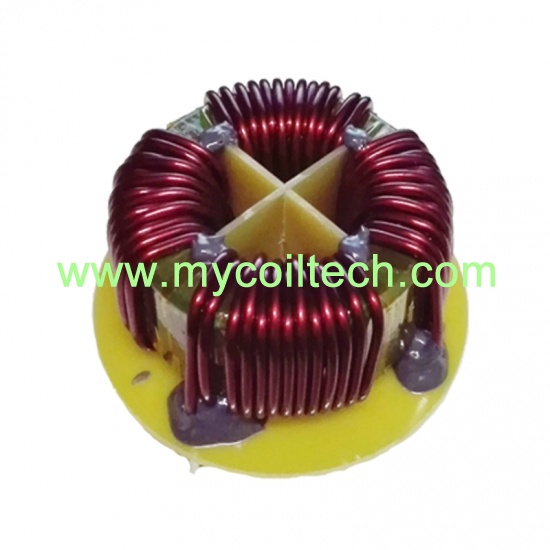

Product Name: Three/Four Phase Common Mode Choke Inductors
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Switching power supplies. Suppression of common-mode and differential-mode interferences. High power switch-mode power supplies for consumer electronics. Power line chokes.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Product Specification
Electrical Data and Part Number(PN):
|
IR in A |
LR in uH |
RDC/mΩ |
ΦA in mm |
PN |
|
10.0 |
2700 |
35 |
1.05 |
MCT-BBB-C01 |
|
12.0 |
2400 |
25 |
1.25 |
MCT-BBB-C02 |
|
16.0 |
1800 |
15 |
1.55 |
MCT-BBB-C03 |
|
20.0 |
1200 |
10 |
1.65 |
MCT-BBB-C04 |
|
25.0 |
1000 |
6 |
2.05 |
MCT-BBB-C05 |
|
30.0 |
820 |
4 |
2.30 |
MCT-BBB-C06 |
Electrical Data and Part Number(PN):
|
IR in A |
LR in uH |
RDC/mΩ |
ΦA in mm |
PN |
|
10.0 |
4700 |
35 |
1.45 |
MCT-BBB-C07 |
|
12.0 |
3900 |
25 |
1.55 |
MCT-BBB-C08 |
|
16.0 |
3000 |
15 |
1.75 |
MCT-BBB-C09 |
|
20.0 |
2000 |
10 |
2.05 |
MCT-BBB-C10 |
|
25.0 |
1000 |
6 |
2.30 |
MCT-BBB-C11 |
|
30.0 |
680 |
4 |
2.55 |
MCT-BBB-C12 |
Electrical Data and Part Number(PN):
|
IR in A |
LR in uH |
RDC/mΩ |
ΦA in mm |
PN |
|
8.0 |
4700 |
25 |
1.40 |
MCT-BBB-C13 |
|
10.0 |
3900 |
20 |
1.60 |
MCT-BBB-C14 |
|
12.0 |
3000 |
15 |
1.80 |
MCT-BBB-C15 |
|
16.0 |
2400 |
10 |
2.10 |
MCT-BBB-C16 |
|
22.0 |
2000 |
7 |
2.40 |
MCT-BBB-C17 |
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
TEL: +86 551 6619 6829
