brand:
MCTitem no.:
MCT-UI3001shipping port:

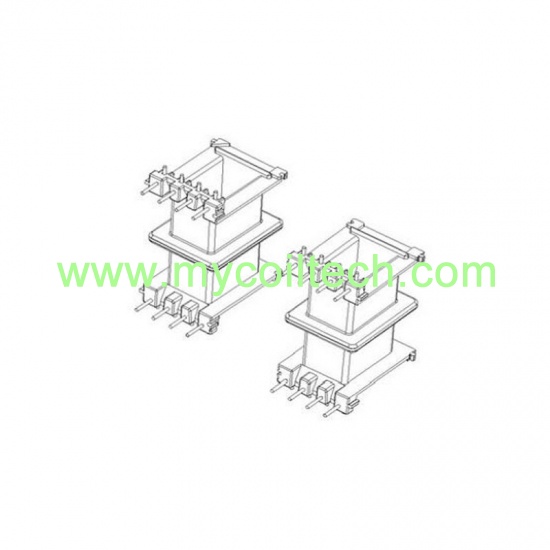

ShanghaiUI30*10.5 core bobbin, 4+4 pins double slots bobbin, samples can be sent for testing.
Product Specification
For more information, welcome to contact us:
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
8 Pins Bobbin, Phenolic Material Bobbin,UL REC:94V-0 Size=32.1mmX9.8mmX4.45mm
2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.6mm Height=5.3mm Diameter=16mm
8 Pins Bobbin, Phenolic Material Bobbin,UL REC:94V-0 Size=32.1mmX9.8mmX4.45mm
UI30 PBT material transformer, low frequency transformer bobbin UI30 two slots. Bobbin size=42.5mmX41.0mmX20.1mm, parallel distance=35.0, pin pitch1=5.0mm. We accept make new bobbin tooling to meet special size request, samples can be sent for testing.
4+6 pins vertical EL16 bobbin, high frequency EL16 bobbin. Bobbin Size=18mmx16.2mmx26.2mm. Pin Pitch=3.5mm. Parallel Distance=12mm. Phenolic material EL16 former. UL REC:94V-0
8+8 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=1.7mm, Parallel Distance=13.2mm Size=15.2mmX13.7mmX10.3mm
EF20 horizontal winding bobbin. Many for high frequency transformer, LED drive transformer, SPMS transformer, etc. Bobbin Size=19.8mmX19.9mmX16.3mm. Pin pitch=5.0mm. Parallel Distance=15.0mm. EF20 bobbin made of phenolic material.
EF28 four section transformer bobbin. EF28 horizontal bobbin 6+6 pins. Bobbin Size=40.2mmX26.2mmX21.0mm. Pin pitch1=4.6mm. Parallel distance=27.7mm. PA66 material bobbin. DIP transformer bobbin.
DR1016 DIP drum core radial leaded inductor. Drum core inductor mainly used for noise filter,motor controller and switching power supply. It has high power, high saturation current and low impedance. Small mounting space required. Operating temperature range: -25 to +120°C.
2+2 pin ET28 vertical base. ET28 common mode choke coil. ET28 phenolic material bobbin base. We can make tooling to meet different dimensions. Base Size=29.5mmX20mmX35.5mm. UL REC: 94V-0
POT22 PA66 material coil former, we supply GU22 clips and base for customers. GU core can used for adjustable LC filter, various transformers and inductors, sensors. We are professional bobbin factory, we have many kinds bobbin toolings. PA66 material GU18 coil bobbin.
DIP type high frequency inductor has low cost, shielded construction, very low DC resistance. It’s easy customized and high frequency range can up to 1.0 MHz. Our large current products are all lead-free. (RoHS)
