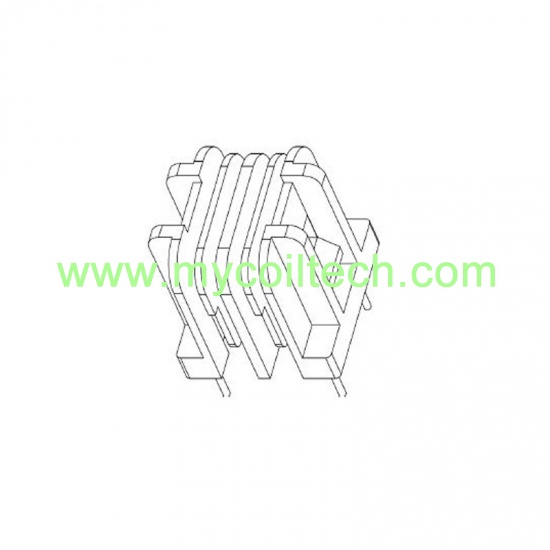

Filter inductor bobbin 2+2 pins four slots coil former, low resistance and high temperature rise. Bobbin Size=17.0mmX16.0mmX15.9mm. Parallel Distance=13.0mm. Pin pitch=10.0mm. We produce UU10.5 bobbin, supply UU10.5 ferrite cores and UU10.5 clips.
brand:
MCTitem no.:
MCT-UU10.5-28payment:
T/T in advanceFactory price UU10.5 coil former, 2+2 pins four slots inductor bobbin, samples can be sent for testing.
Product Specification
For more details, welcome to contact us:
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
PCB Choke UU10.5 Core Bobbin 2+2 Pins
UU10.5 choke coil indutor bobbin. 2+2 pin double slots UU10.5 bobbin. Low resistance and high temperature rise. Bobbin Size=16.3mmX15.6mmX13.4mm. Pin Distance=10.0mm. Parallel Distance=13.0mm. We produce UU10.5 bobbin, UU10.5 cover and UU10.5 clips.
UU10.5 Common Mode Choke Bobbin, 2+2 Pin Horizontal Bobbin
2+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=10mm Parallel Distance=13mm Size=18.1mmX16.2mmX18.4mm
2+2 Pins UU10.5 Transformer Bobbin For Ferrite Core
2+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=10mm Parallel Distance=13mm Size=18mmX16mmX16.1mm
2+2 Pins UU10.5 Bobbin Doouble Slots
2+2 Pins UU10.5 Horizontal Bobbin, Phenolic Material UU10.5 coil former, Pin Pitch=10mm, Parallel Distance=12.8mm, Size=17mmX16mmX16mm. We manufacture UU10.5 line filters, welcome custom.
UU10.5 Power Transfromer Bobbin, Double Slots Dip Bobbin
2+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=10mm Parallel Distance=13mm Size=15.8mmX15.8mmX16mm
UU10.5 Double Slots Bobbin For Electronic Transformer
2+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=10mm Parallel Distance=13mm Size=16.2mmX18mmX18.6mm
UU10.5 Phenolic Bobbin, Horizontal Bobbin 2+2 Pins
2+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=10mm Parallel Distance=13mm Size=18mmX16.2mmX18.6mm
UU10.5 Transformer Bobbin, Double Slots Horizontal Bobbin
2+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=12.3mm Size=16mmX16mmX16mm
UU10.5 Transfoemer Bobbin, Double Slots Dip Bobbin
2+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=10mm Parallel Distance=13mm Size=17.9mmX16.2mmX16.1mm
Four Slots UU10.5 Tramsformer Bobbin with Dip Bobbin 2+2 Pin
2+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=10mm Parallel Distance=13mm Size=16mmX18mmX18mm
UU10.5 Transformer Bobbin For Line Filter, Phenolic Material Bobbin
2+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=10mm Parallel Distance=14.2mm Size=18mmX16mmX15.8mm
UU 10.5 Vertical Bobbin , 2+2 Pins Bobbin
2+2 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=10mm Parallel Distance=13mm Size=15.4mmX14.6mmX13.4mm
