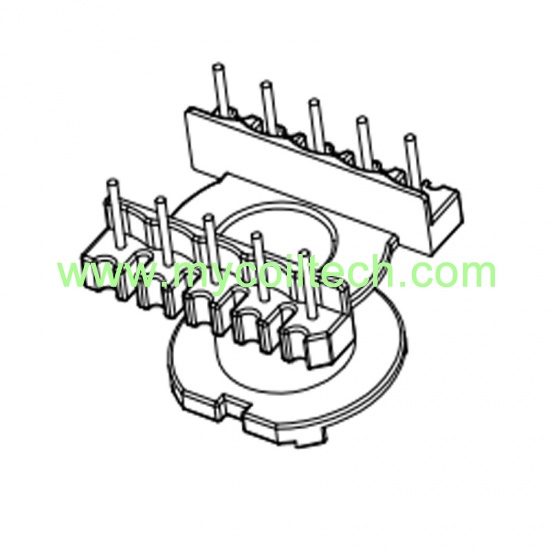

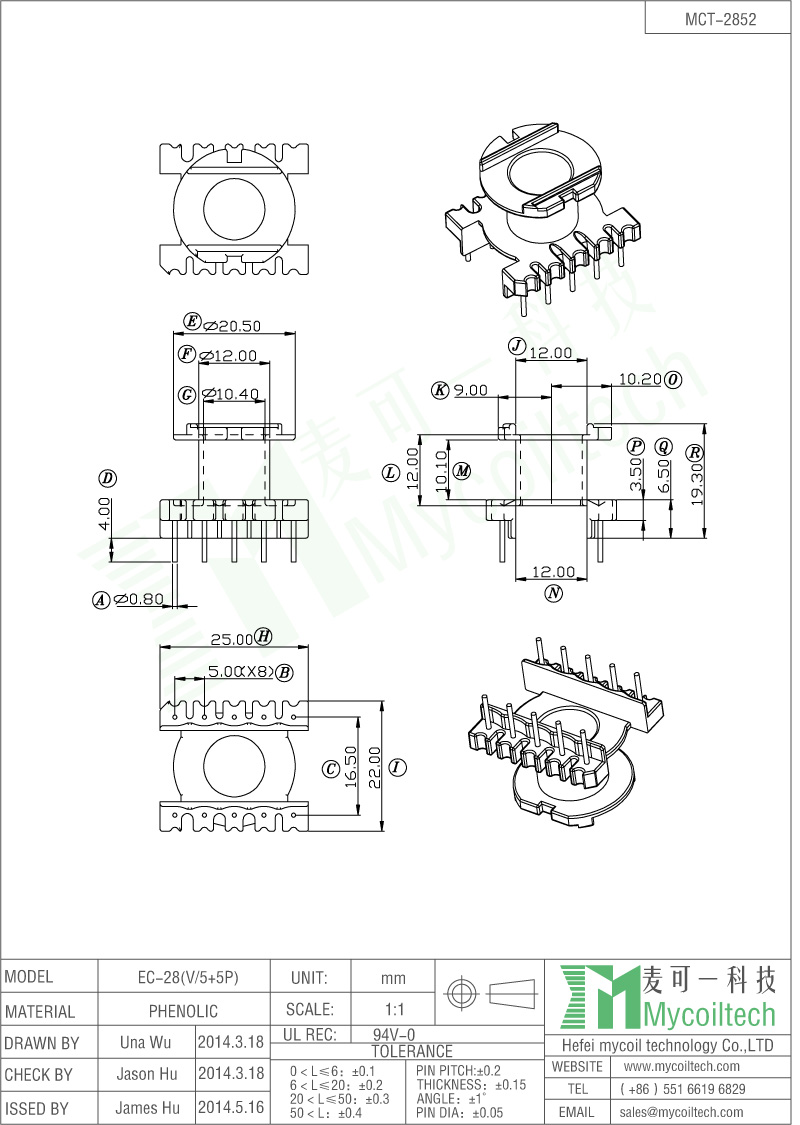

EC28 ferrite core transformer bobbin. 5+5 pin vertical EC/ER28 coil former. Bobbin Size=25.0mmX22.0mmX19.3mm. Parallel Distance=16.5mm. Pin pitch=5mm. Phenolic material transformer Bobbin. DIP transformer bobbin. UL REC:94V-0.
brand:
MCTitem no.:
MCT-EC2852shipping port:
Shanghai
Quick Details
|
Part Number: MCT-EC2852 |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: Vertical Bobbin EC28 For Electronic Isolation Transformer
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Advantages: Professional transformer winding bobbin factory, complete specifications.
Our Factory is made up of 500 people, huge output can be finished every day.
All materials are environmental protected. We accept custom made and design service.
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
Product Specification
EC25 ferrite core bobbin 5+5 pin. Parallel Distance=14.5mm. Bobbin Size=17.5mmX12.4mmX3.9mm.Vertical type EC25 transformer bobbin. Phenolic material transformer Bobbin. DIP transformer bobbin. UL REC:94V-0.
EC28 6+6 pins horizontal transformer bobbin. EC/ER28 coil inductor bobbin. Bobbin Size=29.0mmX28.0mmX24.0mm. Parallel Distance=25.0mm. Pin pitch=5.0mm. Phenolic material transformer Bobbin. DIP transformer bobbin. UL REC:94V-0.
SUS301 transformer clamp, ETD54 vertical bobbin clip. SUS material clamp, we can use clip to fix ETD54 ferrite core. We produce final SMPS transformers, welcome customized transformer.
EE20 6+8 pin horizontal bobbin. EE20 phenolic coil former. Bobbin Pin Pitch1=5mm. Bobbin Pin Pitch2=2.5mm. DIP transformer bobbin. Parallel Distance=20mm. Bobbin Size=24.8mmX20.9mmX15.4mm. UL REC:94V-0.
Base filter inductor. 2+2 pin choke inductor base. Base Size=27.94mmX20.32mmX12.1mm. Our common mode choke has many features:such as low cost/high efficiency, low magnetic leakage, good control on noise due to the toriodal constructure, etc.
