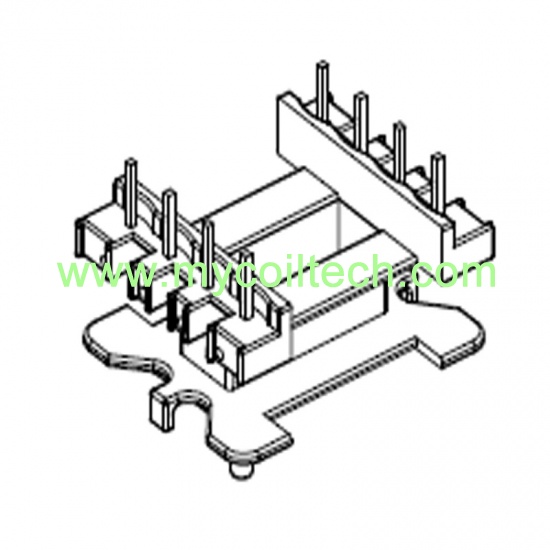

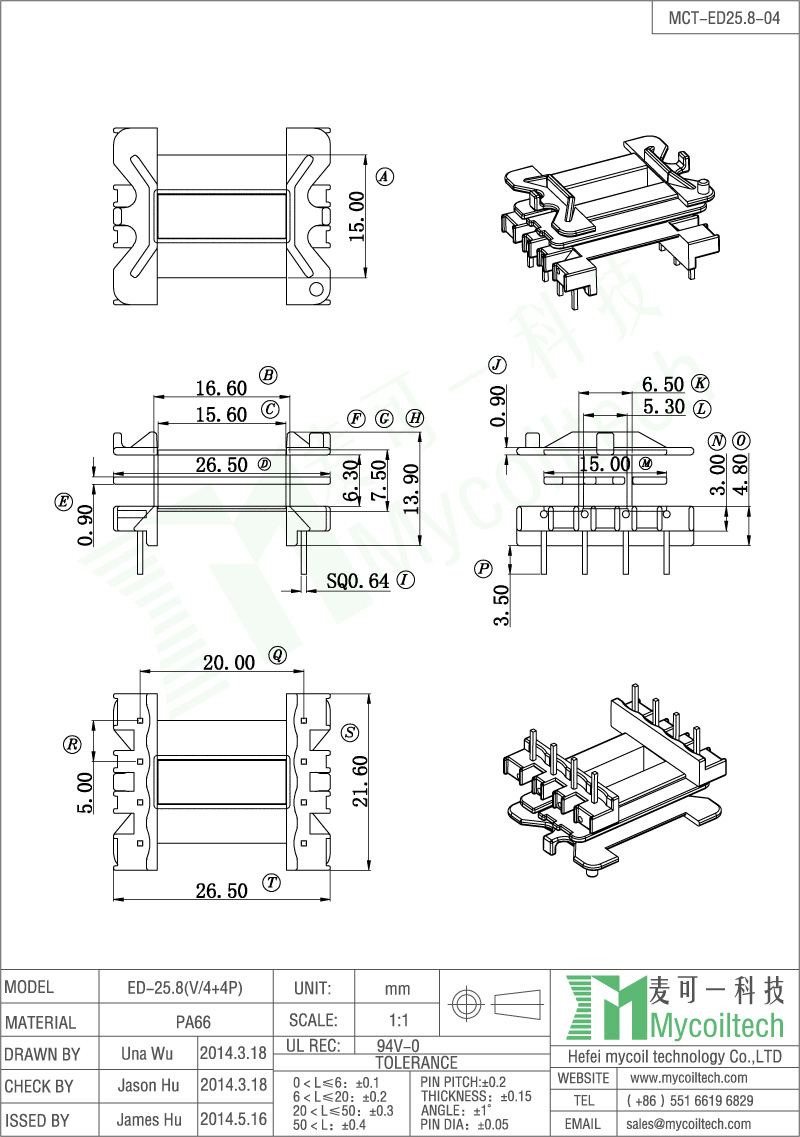

ED25.8 8pin transformer bobbin. Vertical type coil former. Parallel Distance=20mm. Pin pitch=5mm. Size=26.5mmX21.6mmX13.9mm. PA66(FR50) material bobbin. DIP type coil former. Accept make bobbin tooling.
brand:
MCTitem no.:
MCT-ED25.8-04(V4+4P)shipping port:
Shanghai2018 popular high quality transformer bobbins, ED25.8 transformer bobbin made of PA66 material, if you need samples, we can send in 5 days.
Quick Details
|
Part No: MCT-ED25.8-04(V4+4P) |
Brand Name: MCT |
|
Material: PA66 |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: Vertical ED25.8 4+4 Pin Transformer Bobbin DIP Bobbin
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Advantages: Professional transformer winding bobbin factory, complete specifications.
Our Factory is made up of 500 people, huge output can be finished every day.
All materials are environmental protected. We accept custom made and design service.
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
