Custom PCB mounting EMI filters. Rated currents from 0.5 to 10A. Optional metal or plastic housing. Test voltage(1min): Line to ground : 2000VAC; Line to Line : 1450VDC. Optional DC version(D type). Mainly for single-phase power supplies, switch-mode power supplies.
brand:
MCTitem no.:
PCB Mounting EMI Filtersshipping port:
Shanghai

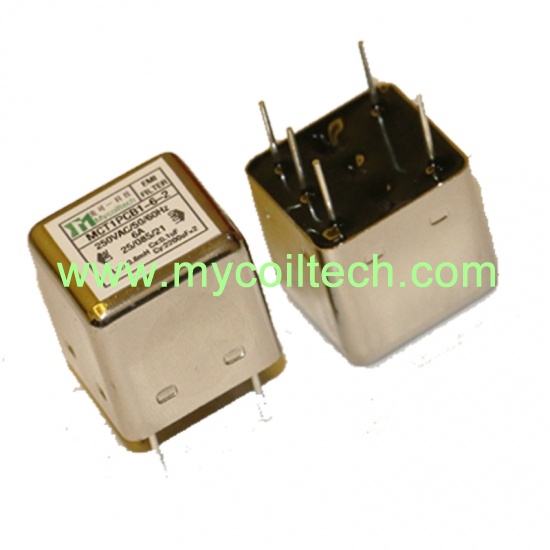

The MCT1PCBX Series PCB filter is a single phase EMI filter designed for easy and fast PCB-mounting. Rated currents from 0.5 to 10A. It has compact unit and light weight, it belongs to PCB through hole mounting. We choose high quality components to ensure PCB mounting DC EMI filter's safety and reliability. Customized PCB mounting single phase filters are acceptable.
Quick Details
|
Part No: PCB Mounting EMI Filters |
Brand name: MCT |
|
Rated Voltage: 120/250VAC |
Custom made: Available |
|
Rated Current: 1A~6A |
Logo: Can be customized |
|
Operating Frequency: DC60Hz |
Packing: Carton, can custom |
|
Temperature range : HPF25/085/21 |
Shipping: Air, Ship, etc |
|
Lead time: 25 days after payment |
MOQ: Any quantity |
|
Certification: ISO9001,ROHS,CE |
OEM: Available |
Part Information
Product Name: 120VAC 6A PCB Through Hole Mounting EMI Filters
Applications: Single-phase power supplies, switch-mode power supplies. Electrical and electronic equipment. Test and measurement equipment. Small to medium-sized machines and household equipment.
Packing details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Details
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
QQ: 2783136957
Contact: Miss Lily Yu
