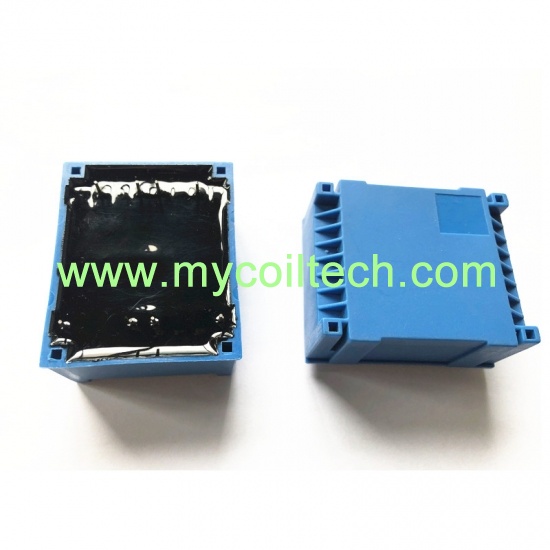

EI30 encapsulated transformer output power range from 1.3VA to 2.8VA. Excellent temperature fluctuation resistance properties. Self-extinguishing cast housing and sealing material. Minimal size available.
brand:
MCTitem no.:
EI30 1.3-2.8 VAshipping port:
ShanghaiOur Factory is made up of 500 people, huge output can be finished every day. If you have any request of EI30 PCB mount encapsulated transformers, welcome contact us! We can send free encapsulated transformer samples for your testing, and make new tooling to meet customer's different specifications.
Quick Details
|
Part No: EI30 1.3-2.8 VA |
Brand name: MCT |
|
Primary voltages from 12 V to 250 V |
Custom made: Available |
|
Output Power up to 2.8VA |
Logo: Can be customized |
|
Temperature class ta 70 °C/B |
Packing: Carton, can custom |
|
Bobbin type: Dual chamber windings |
MOQ: Any quantity |
|
Certification: ISO9001,ROHS,CE |
OEM: Available |
|
Lead time: 25 days after payment |
Shipping: Air, Ship, etc |
Part Information
Product Name: 2.3VA EI30 Encapsulated PCB Mount Electronic Transformer
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Household appliances, printed circuit boards, low power industrial control products, meters and other industries.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specification
Product Part Number
|
Frame size/Core height |
Output Power Ta 70°C/F |
Size(h) |
Weight |
Packaging unit |
|
MCT EI 307 8/11.5 mm |
1.3 V/A |
22.1mm |
0.076kg |
50pieces |
|
MCT EI 303 8/12.5 mm |
1.5 V/A |
23.8mm |
0.081kg |
50pieces |
|
MCT EI 304 8/15.5 mm |
2.1 V/A |
26.8mm |
0.099kg |
50pieces |
|
MCT EI 305 8/18.0 mm |
2.3 V/A |
29.5mm |
0.111kg |
50pieces |
|
MCT EI 306 8/23.0 mm |
2.8 V/A |
34.0mm |
0.135kg |
50/40 pieces* |
|
Order No. |
Primary Voltage V |
Connecting pins prim. |
Secondary voltage V |
Current sec.mA |
Connecting pins sec. |
No-load Voltage V |
Connection scheme |
|
MCT EI 307 8009 |
230 |
1-5 |
1×6 |
217 |
7-9 |
1×10.7 |
1 |
|
MCT EI 307 8011 |
230 |
1-5 |
1×9 |
144 |
7-9 |
1×15.7 |
1 |
|
MCT EI 307 8001 |
230 |
1-5 |
1×12 |
108 |
7-9 |
1×19.8 |
1 |
|
MCT EI 307 8002 |
230 |
1-5 |
2×12 |
54 |
6-7/9-10 |
2×19.8 |
2 |
|
MCT EI 307 8012 |
230 |
1-5 |
1×15 |
87 |
7-9 |
1×25.0 |
1 |
|
Order No. |
Primary Voltage V |
Connecting pins prim. |
Secondary voltage V |
Current sec.mA |
Connecting pins sec. |
No-load Voltage V |
Connection scheme |
|
MCT EI 303 8008 |
230 |
1-5 |
1×9 |
167 |
7-9 |
1×14.0 |
1 |
|
MCT EI 303 8021 |
230 |
1-5 |
2×9 |
83 |
6-7/9-10 |
2×14.0 |
2 |
|
MCT EI 303 8023 |
230 |
1-5 |
1×12 |
125 |
7-9 |
1×18.8 |
1 |
|
Order No. |
Primary Voltage V |
Connecting pins prim. |
Secondary voltage V |
Current sec.mA |
Connecting pins sec. |
No-load Voltage V |
Connection scheme |
|
MCT EI 304 8013 |
230 |
1-5 |
1×6 |
350 |
7-9 |
1×11 |
1 |
|
MCT EI 304 8024 |
230 |
1-5 |
1×7.5 |
280 |
7-9 |
1×13.9 |
1 |
|
MCT EI 304 8014 |
230 |
1-5 |
1×9 |
233 |
7-9 |
1×16.2 |
1 |
|
MCT EI 304 8005 |
230 |
1-5 |
1×12 |
175 |
7-9 |
1×20.5 |
1 |
|
MCT EI 304 8006 |
230 |
1-5 |
2×12 |
88 |
6-7/9-10 |
2×20.5 |
2 |
|
MCT EI 304 8015 |
230 |
1-5 |
1×15 |
140 |
7-9 |
1×27.0 |
1 |
|
Order No. |
Primary Voltage V |
Connecting pins prim. |
Secondary voltage V |
Current sec.mA |
Connecting pins sec. |
No-load Voltage V |
Connection scheme |
|
MCT EI 305 8022 |
230 |
1-5 |
1×7.5 |
307 |
7-9 |
1×13.2 |
1 |
|
MCT EI 305 8019 |
230 |
1-5 |
1×9 |
255 |
7-9 |
1×16.0 |
1 |
|
MCT EI 305 8020 |
230 |
1-5 |
2×9 |
127 |
6-7/9-10 |
2×15.7 |
2 |
|
Order No. |
Primary Voltage V |
Connecting pins prim. |
Secondary voltage V |
Current sec.mA |
Connecting pins sec. |
No-load Voltage V |
Connection scheme |
|
MCT EI 306 8016 |
230 |
1-5 |
1×6 |
467 |
7-9 |
1×10.5 |
1 |
|
MCT EI 306 8017 |
230 |
1-5 |
1×9 |
311 |
7-9 |
1×16.1 |
1 |
|
MCT EI 306 8003 |
230 |
1-5 |
1×12 |
233 |
7-9 |
1×21.4 |
1 |
|
MCT EI 306 8007 |
230 |
1-5 |
2×12 |
117 |
6-7/9-10 |
2×21.4 |
2 |
|
MCT EI 306 8018 |
230 |
1-5 |
1×15 |
187 |
7-9 |
1×26.1 |
1 |
We accept custom design!
If you have any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
TEL: +86 551 6619 6829
