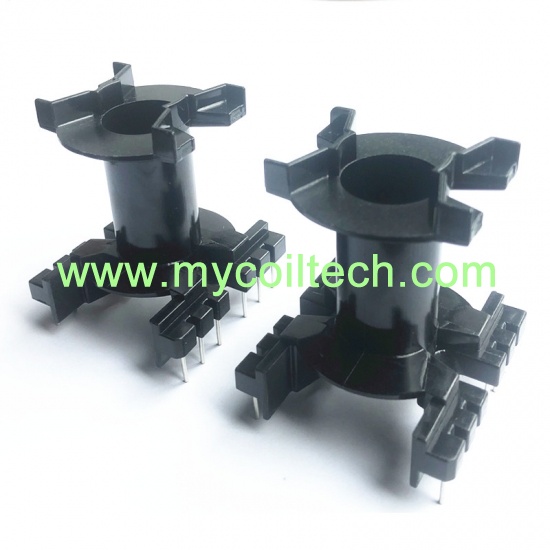

6+6 Pins PQ50/50 Power Transformer Frame

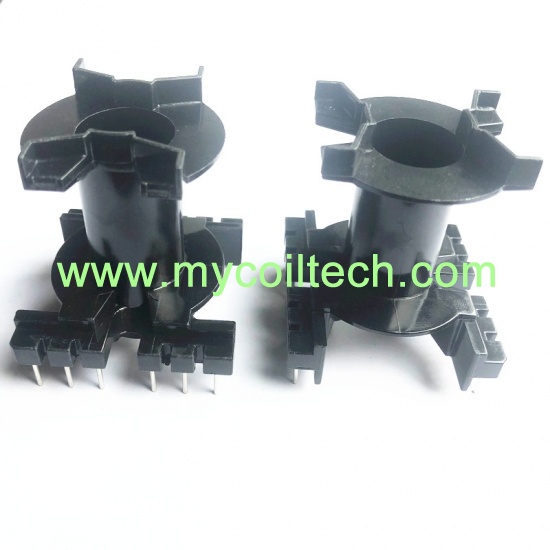

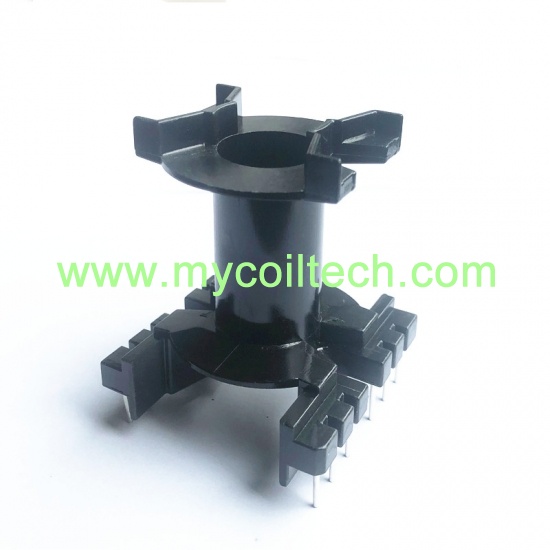

PQ35 ferrite transformer, 6+6 pin vertical PQ35/35 coil former. Bobbin Size=39.3mmX34.9mmX36.6mm. Row distance=35.5mm. Pin pitch=5.0mm. Phenolic PQ35 bobbin for high frequency transformer, used in power supplies, printers, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments.

PQ50 flyback transformer bobbin. Vertical shape PR50 double slots frame. 7+7 pins PQ50 coil former. We are experienced IS09001:2015 certificated factory, our main products are various bobbins, magnetic cores, transformers and filter inductors. We have specialized after-sales team and offer technology support.Make bobbin tooling.

PQ bobbin for transformer magnetic cores. Vertical PQ32 12 pins coil former. Bobbin Size=34.0mmX32.0mmX18.8mm. Pin pitch=5.08mm. Parallel Distance=30.5mm. Phenolic material PQ32 bobbin. Dip bobbin. We open bobbin tooling for customers.

PQ35 Electronic Transformer Cover. UL REC:94V-0. PA66 Material Cover. We can make bobbin tooling. Transformer cover accept custom design

PQ32/32 ferrite transformer bobbin. No pin PQ32 transformer bobin. Bobbin Size=26.5mmX26.5mmX26.0mm. Phenolic PQ32 coil bobbin for high frequency transformer, used in PCB circuits, printers, filters, computers, LED lighting, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments.

PQ35 vertical transformer bobbin. 6+6 pins bobbin. Parallel Distance=35.5mm. Bobbin Size=39.2mmX35mmX37mm. Accept make bobbin tooling. DIP bobbin. UL REC:94V-0

4+4 Pins PQ35 horizontal transformer bobbin. DIP bobbin. Parallel Distance=30mm. Phenolic material bobbin. UL REC:94V-0 Bobbin Size=39mmX36mmX39.2mm. Accept make bobbin tooling.

6+6 pins PQ35 coil bobbin. Vertical type bobbin. Bobbin Size=39.1mmX35.5mmX37.6mm. Accept make bobbin tooling. Parallel Distance=35.5mm. DIP bobbin. UL REC:94V-0

SMPS flyback transformer. PQ35 6+6 pins coil bobbin. Bobbin Size=34.0mmX32.0mmX31.5mm. Parallel Distance=22.8mm. Pin Pitch1=5.0mm. Pin Pitch2=7.5mm. PQ35 transformer has large transmission power and stable performance.

3+3 pins PQ38 vertical type electronic transformer bobbin. Parallel Distance=32.51mm. Accept make bobbin tooling. PQ type phenolic transformer bobbin. UL REC:94V-0

PQ38 vertical transformer bobbin. UL REC:94V-0 6+4 pins PQ38 transformer bobbin. Parallel Distance=36.9mm. Phenolic transformer bobbin.Accept make bobbin tooling.

PQ38 vertical transformer bobbin. UL REC:94V-0 6+4 pins PQ38 transformer bobbin. Parallel Distance=36.9mm. Phenolic transformer bobbin.Accept make bobbin tooling.
